Performing Equipotential Bonding Testing
8

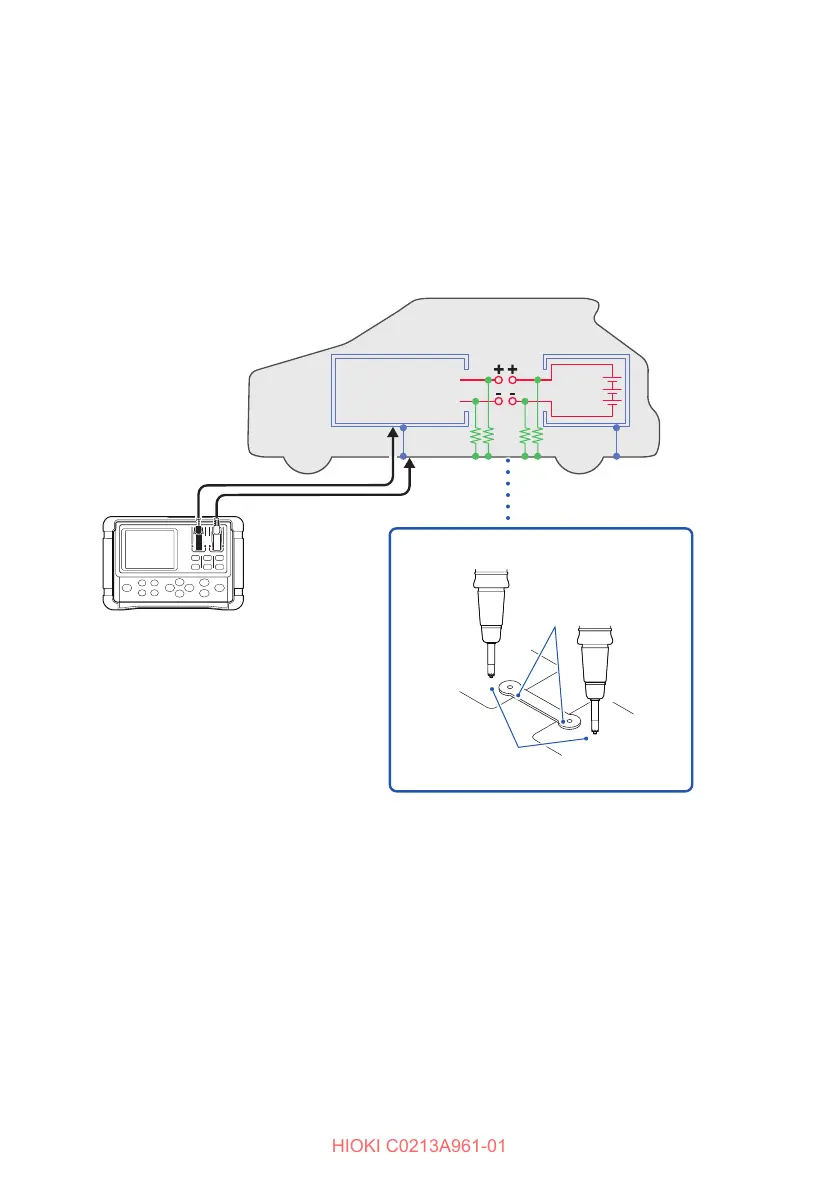

Measure the resistance values between the connecting
components’ terminals and the vehicle chassis, and between
connected components and the vehicle chassis.
9
Verify that each measured value is less than 0.1 Ω and that
there are no signicant discrepancies between measurement
locations.
Between connected
component terminals
Between connected components
Example: Between connected components
RM3548
Black Red
