Performing Equipotential Bonding Testing

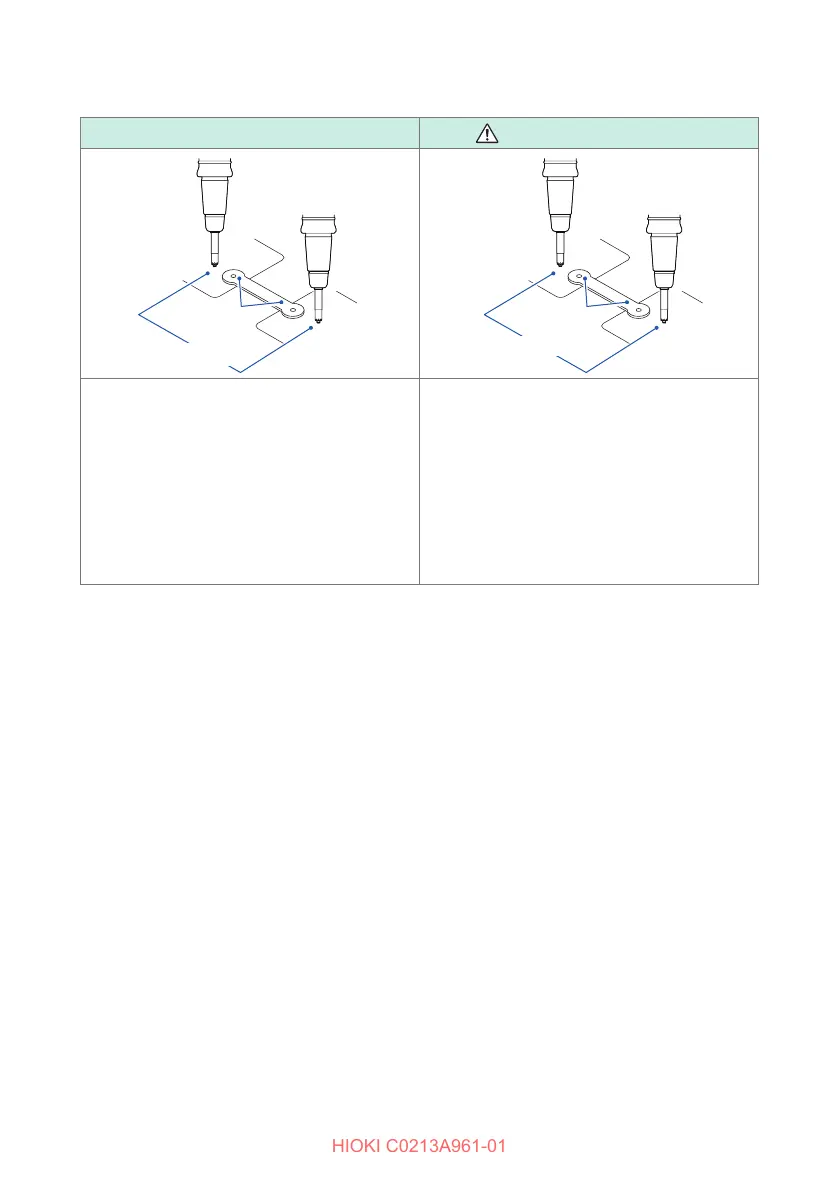

Example test
Normal connection Problematic connection
0.6032 m
Ω
0.7010 m
Ω
0.6032 m
Ω
25.670 m
Ω
• Measured value is less than 0.1
Ω
.
• There is no signicant di󰀨erence
between the resistance value of the
connecting components’ terminals and
the resistance value of the connected
components.
• The resistance value between the
connecting components’ terminals or
between the connected components is
too high.
• There is a signicant di󰀨erence
between the resistance value of the
connecting components’ terminals and
the resistance value of the connected
components.
