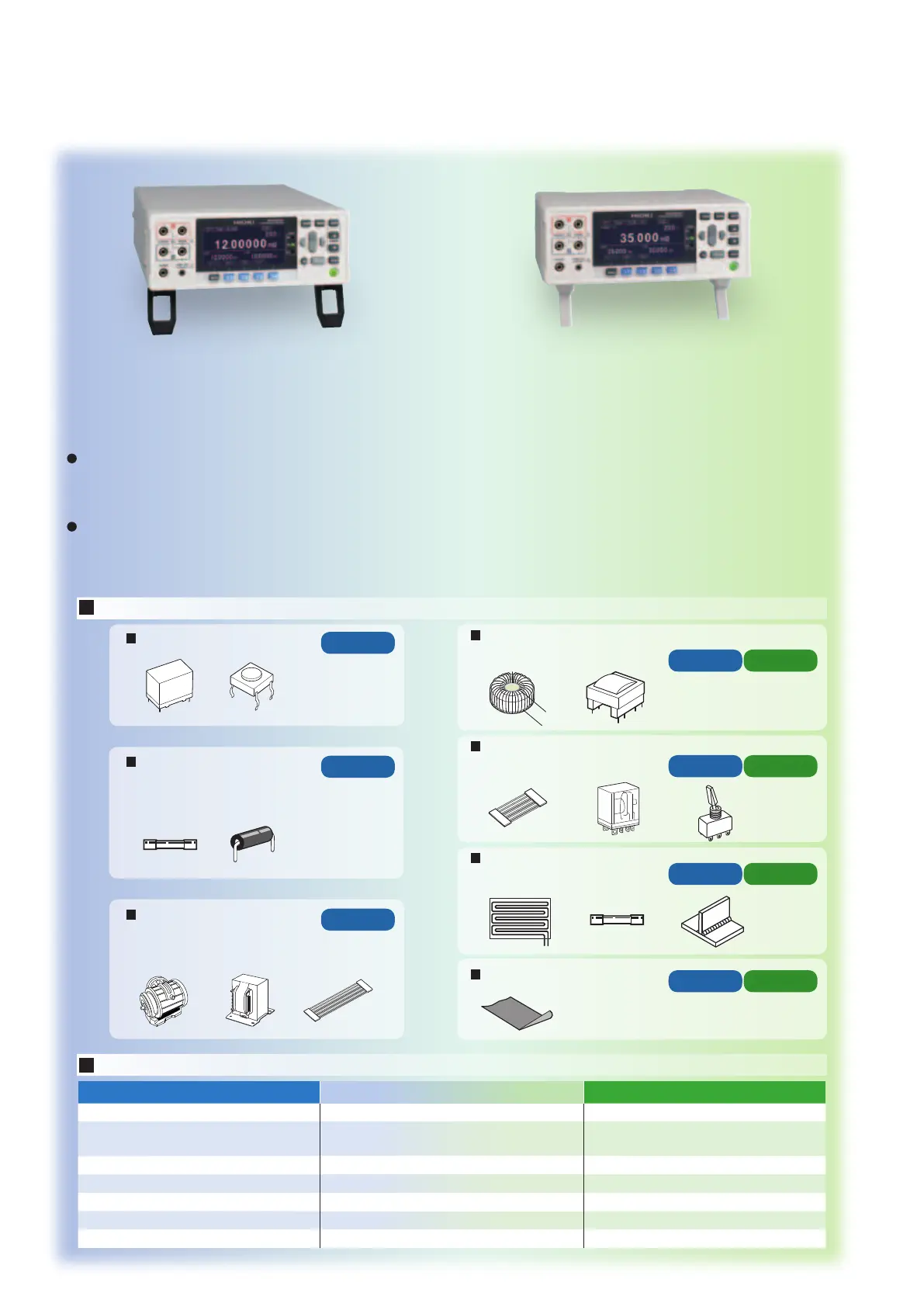

Choose from two models based on your application
RESISTANCE METER RM3545 RESISTANCE METER RM3544
0.00μΩ to 1200MΩ Measurement types (4-terminal direct current) 0.000 mΩ to 3.5 MΩ
3
Temperature measurement, Temperature correction (TC),
comparator, judgment sound setting, auto hold
3
3
Low power resistance measurement (LP) N/A
3
Temperature rise (Temperature conversion (ΔT) N/A
3
Offset voltage compensation (OVC) N/A
3
D/A output N/A
3 RM3545
-02 : Max. 20ch
Multiplexer N/A
RM3545
Super-high accuracy
and multi-channel capabilities
for advanced development
and production applications
RM3544
High-accuracy bench-top meter
for both manual operation
and integration with automatic lines
Max. measurable current : 1A
Max. resolution : 0.01μΩBasic accuracy : 0.006%
Resistance measurement
Max. measurable current : 1mA Max. Open-circuit voltage : 20mV
Low power resistance measurement
Max. resolution :
0.01mΩBasic accuracy : 0.2%
Max. measurable current : 300mA
Max. resolution : 1μΩBasic accuracy : 0.02%
Applications
Motors, solenoids, choke coils, transformers,
wire harnesses
RM35 44RM35 45
Contacts, wire harnesses,
relay contacts, switches
RM35 44RM35 45
Fuses, resistors, heaters,
wires, welds
RM35 44RM35 45
Conductive rubber, paint
RM35 44RM35 45
Compact fuses, airbag inator,
compact magnetic
components (EMC lters, ferrite beads)
RM35 45
Multi-contact resistance
measurement (motor and
transformer windings)
RM35 45-02
Small-signal contacts
RM35 45
General specications

Hioki RM3545 Specifications

General

Brand	Hioki
Model	RM3545
Category	Measuring Instruments
Language	English
