4 840PL-HD Front Panel
4.0 Interface Points-of-Interest
1– High Voltage Output 6 – On/Off Power Switch
2– HV Return Input 7 – AC Power Input
3– Earth Ground Connection 8 – Warning Strobe Beacon Input
4– Rotary Knob Manual Control 9 – External Interlock Input
5– Emergency Stop 10 – USB input

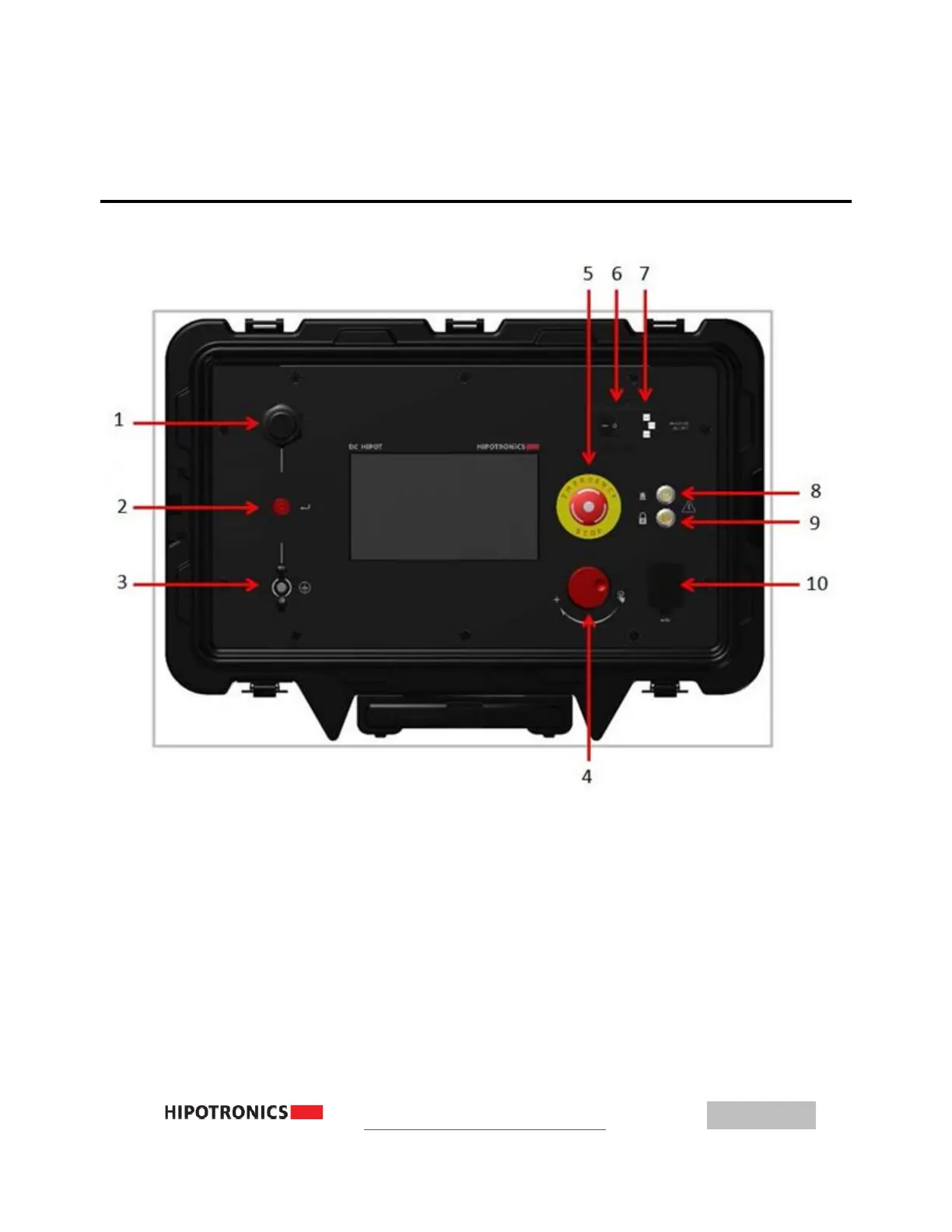

Figure 1 800PL-DC Front Panel
