HireTech HT7 - Parts List; Circuit Diagram

10
PARTS LIST
Ref PSTK Pack Qty Description
1 010010 4 Screw
2 011600 1 Switch 220/240 Volt (Bias Off)
2 011610 1 Switch 110/120 Volt (Bias Off)
4 010050 1 Cover Motor
5 010070 1 Housing Motor
6 010080 1 Strain Relief
7 010090 1 Cable Main Assembly 240 Volt (UK)
7 010100 1 Cable Main 110 Volt (NA)
7 010110 1 Cable Main Assembly 220 Volt (EEC)
7 010120 1 Cable Main Assembly 240 Volt (AUS)
7 010130 1 Cable Main Assembly 110 Volt (UK)
8 010140 2 Handles Pack of 2
9 010150 4 Screw Handle
10 010160 1 Cable Switch Assembly
11 010170 1 Brush Block Assembly
12 010180 4 Brush Motor
13 010190 4 Screw Pack of 4
14 010200 4 Washer
15 010210 4 Screw
16 010220 4 Screw and Washer Set
17 010230 4 Brush Spring
18 010240 1 Field 110/120 Volt HT7
18 010250 1 Field 220/240 Volt HT7
19 010260 2 Washer Clamp
20 010270 5 Washer Lock
21 010280 2 Screw
22 010290 1 Baffle
23 010300 3 Screw
24 010600 1 Spring Washer
25 010320 2 Bearing
26 010330 1 Armature 110/120 Volt
26 010340 1 Armature 220/240 Volt
27 010350 3 Key
28 010360 1 Fan Motor
29 010370 1 Gasket
30 010380 1 Plate Exhaust
31 010390 1 Fan Intake
32 010400 1 Ring Retainer
33 010410 1 Spacer Bearing
34 010420 1 Seal
35 010430 1 Ring Retainer
36 010440 1 Pinion
37 010450 1 Housing Gear

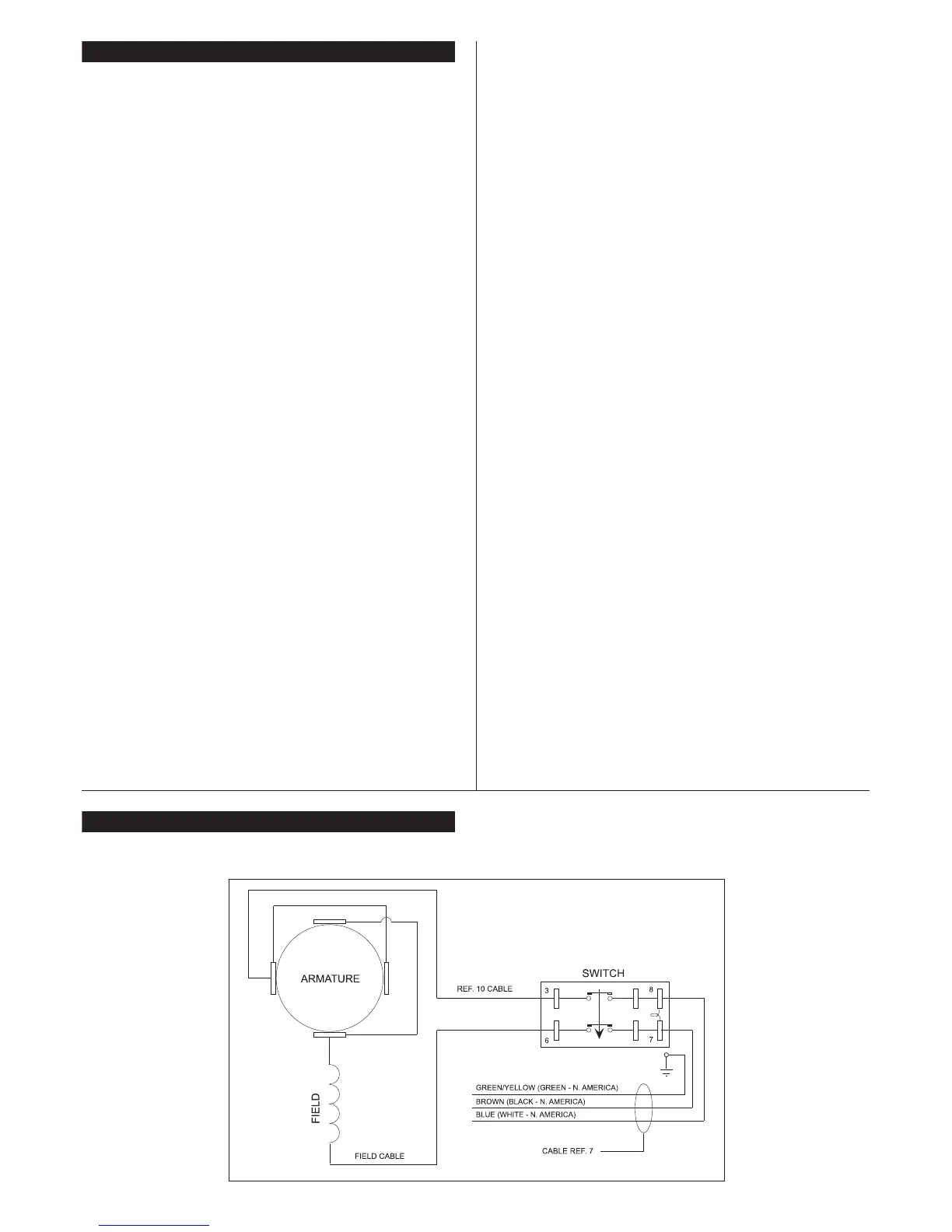

CIRCUIT DIAGRAM
HT7-2 Disc Floor Sander
Ref PSTK Pack Qty Description
39 010470 4 Screw
40 010480 1 Frame Bag Support
41 010490 1 Bag Dust Cloth
42 07038 25 Disposable Paper Dust Bag HT7/HTF
Pack 2
42 07040 50 Disposable Paper Dust Bag HT7/HTF
(box 50)
43 010510 2 Clip Wrench
44 010520 2 Screw
45 010530 2 Castor & Nut
46 010540 1 Spring Load
47 010550 1 Shaft Drive
48 010560 2 Bearing
49 010570 1 Gear Drive
50 010580 1 Ring Retaining
51 010590 1 Cover Gear
52 010220 4 Screw & Washer Set
53 010610 3 Screw
54 010620 1 Guard Disc
55 010630 1 Retainer
56 010640 4 Shim
57 012310 1 Sanding Pad (Metal Backed)
58 010660 1 Washer Clamp
59 010670 1 Bolt Clamp
60 010680 1 Pin Cotter
61 010690 1 Wrench
62 010720 1 Washer, Clamp and Pin Cotter Kit
65 010750 2 Brush Shunt
69 011680 1 Owners Manual & Operating Instructions
70 011820 1 Owners Workshop Manual
100 011270 1 Grease Gear Disc Floor Sander
The following items are not illustrated.
Special Tools
250 011720 1 Service Tool - Castor Adjuster
250 011731 1 Service Tool - Sanding Pad
Fitting/Removal
250 011740 1 Service Tool - Pinion Fitting/Removal
250 011850 1 Service Tool - Extractor Gear Cover
250 011860 2 Service Tool - Extractor Seal
Consumables
010760 1 Carton Transit
