Hirschmann MACH 1030 User Manual

Installation MACH 1000
Release 04 12/2015
41
Note: Note the permitted voltage ranges for devices with
certification type “T” (EN 50155 railway (train) - see product code
position 38 in table 1).

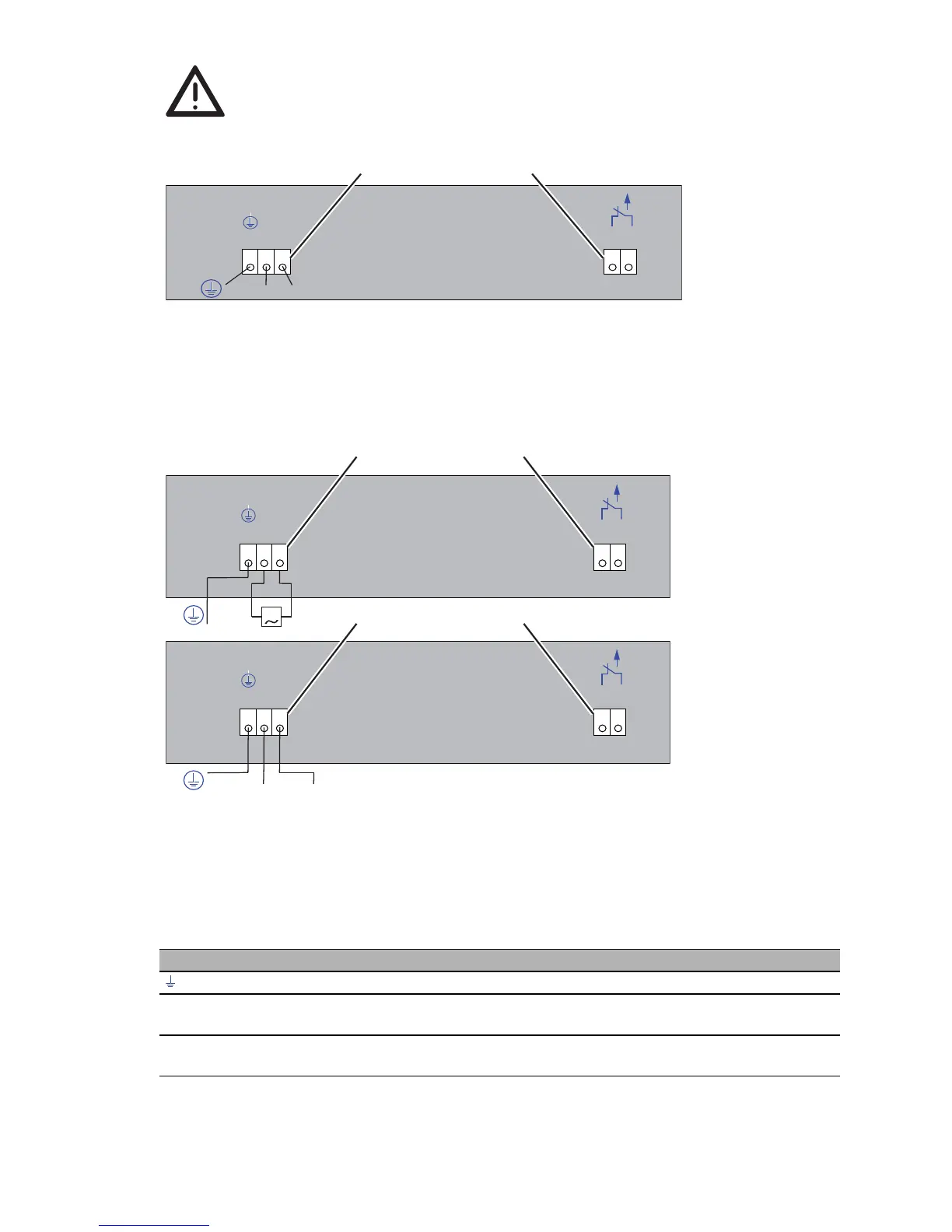

Figure 10: Power supply unit “C”, DC voltage 55 “General technical data”
Connection for
1 - supply voltage
2 - signal contact
Figure 11: Power supply unit “G” (see on page 55 “General technical data”):
AC voltage (pictured above) or DC voltage (pictured below)
Connecting
1 - Supply voltage
2 - Signal contact
Connection Type “C” Type “G” VDC Type “G” VAC
, pin 1 Protective conductor Protective conductor Protective conductor
-/N, pin 2 Minus terminal of the
supply voltage
Minus terminal of the
supply voltage
Neutral conductor
+/L, pin 3 Plus terminal of the
supply voltage
Plus terminal of the
supply voltage
Line conductor
Table 7: Pin assignment of spring-loaded terminal for voltage supply
4 5321
Relay
321 45
-
+
-
+
2
1
4 5
Relay
45
G
4 5
Relay
45
321 321
-/N
+/L
321 321
-/N
+/L
2
1
-
+
2
1
