42
Installation MACH 1000
Release
04
12/2015
Note: Use copper wire with cross-section AWG 16 to AWG 12 (0.75 mm
2
to
3.0 mm
2
) and stripping length 12 mm.
For every supply voltage to be connected, perform the following steps:
Ensure the required conditions for connecting the supply voltage.
See “Supply voltage” on page 8.
To insert the cable, you open the terminal lock by positioning the
screwdriver as illustrated below and pressing on the lever.
Connect the protective conductor according to the pin assignment on the
device with the clamp.

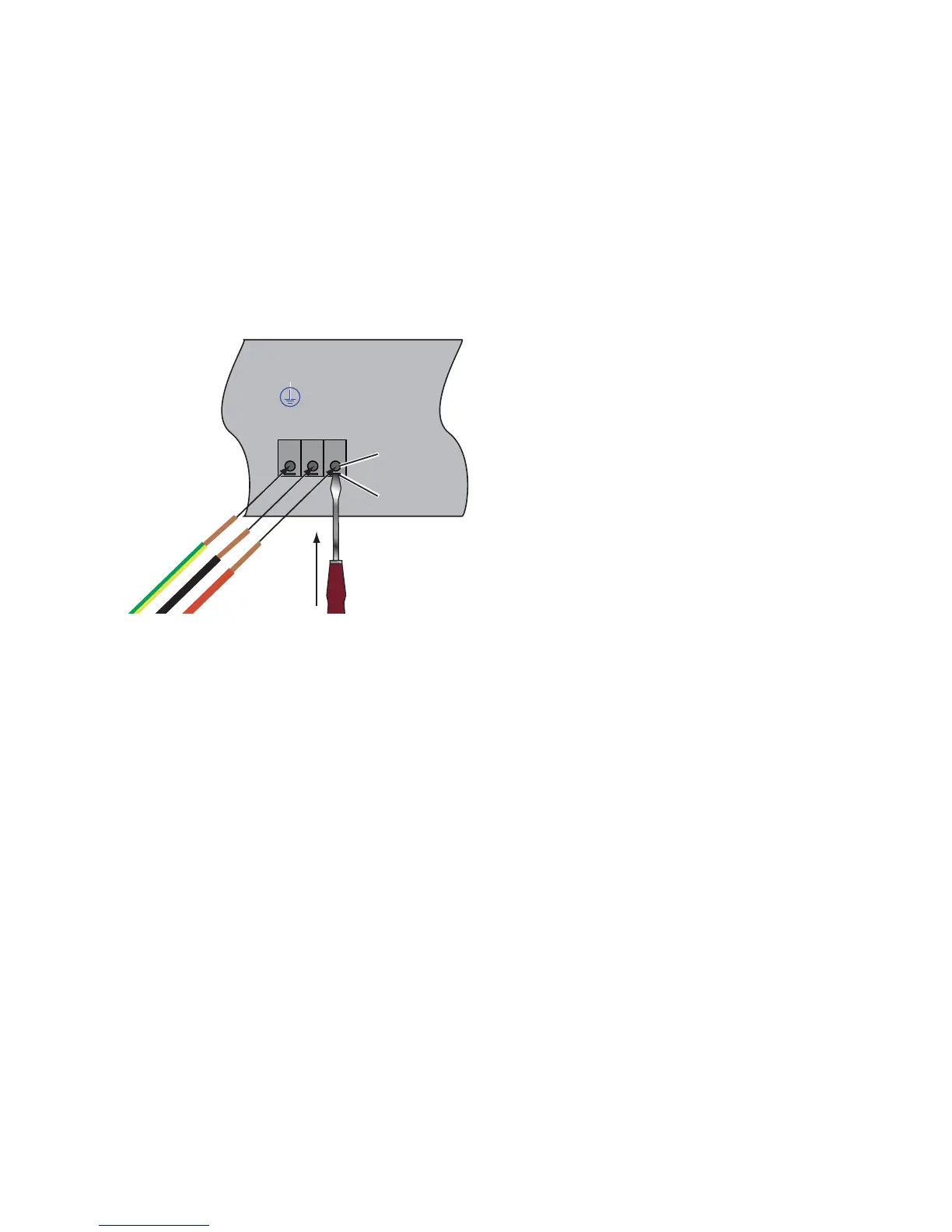

Figure 12: Connecting the supply voltage via the 3-pin spring-loaded terminal
1 - Field connection terminal for supply voltage
2 - Terminal lock
Connect the wires according to the pin assignment on the device with the
clamps.
