Hirschmann MACH102 Series User Manual

12
Installation MACH102
Release 06 09/2014
The devices comply with the specifications of the ISO/IEC standards
8802-3u 100BASE-TX/-1000BASE-T,
8802-3 100BASE-FX and
8802-3 1000BASE-SX/LX.
The MACH102 basic device comprises all function units such as: switch
function, management function, redundancy function, voltage connection,
management connection, slots for media modules (depending on the device
variant).
 Modular MACH102 basic devices
The MACH102-8TP, and MACH102-8TP-R devices from the Industrial
Ethernet MACH102 family are modular switches. The devices consist of
a basic switch device and—depending on the device variant—pluggable
media modules for additional ports.
Up to 2 pluggable media modules each provide an additional 8 Fast
Ethernet interfaces. They differ as to the media type for connecting
segments.
For the sake of simplicity, the basic switch device with various plugged-in
media modules will be referred to as MACH102 in this document.
The basic devices have the following properties:
 MACH102-8TP, MACH102-8TP-R
 2 Gigabit Ethernet combo ports
 8 Fast Ethernet ports
 You have the option of choosing the media for an additional 8 or
16 ports via the media modules.
 MACH102-8TP-R: The power supply is connected redundantly.

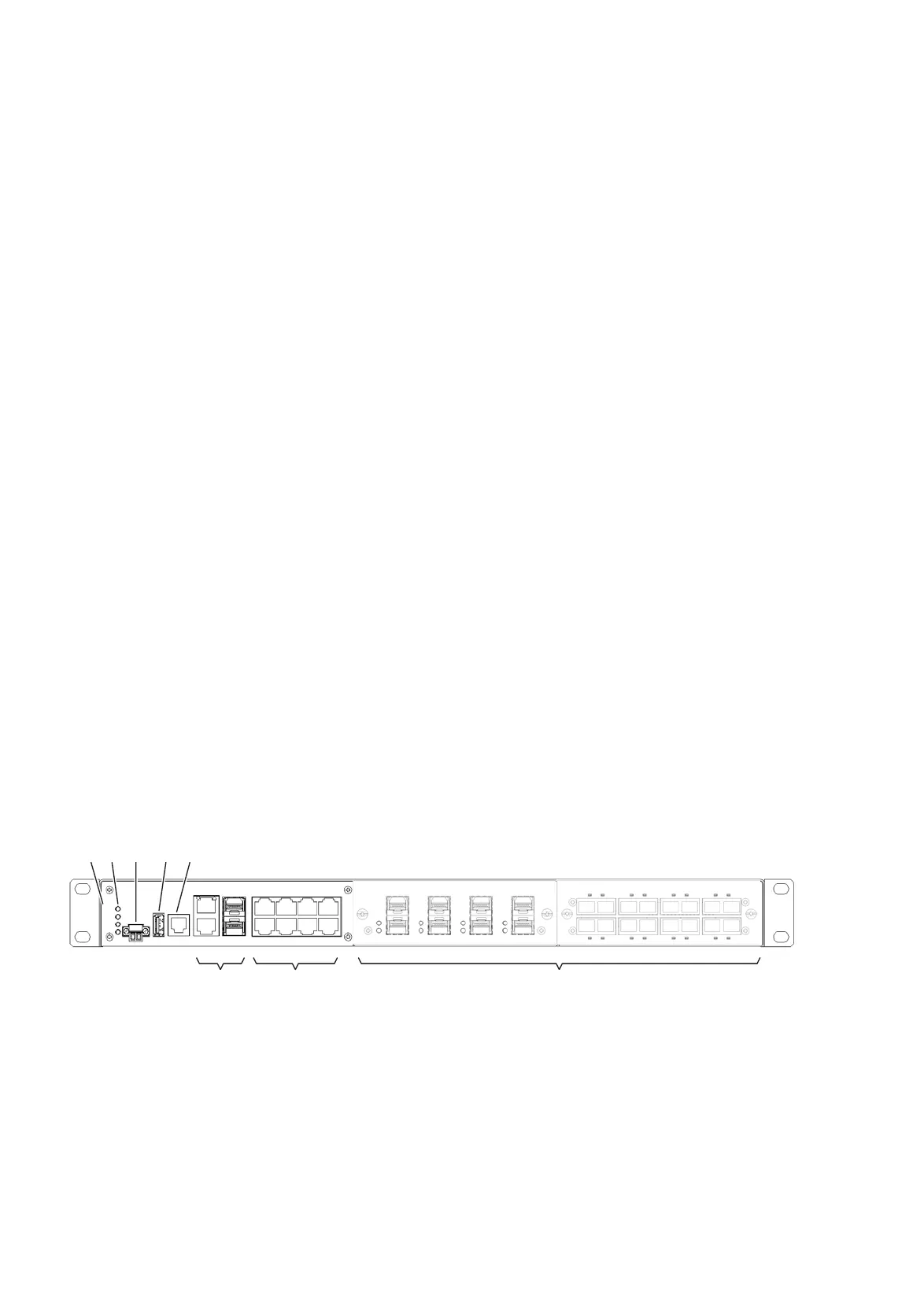

Figure 1: Overview over interfaces, display and operating elements
of the MACH102-8TP, and MACH102-8TP-R
1 - MACH102 device
2- LED display elements
3 - Signal contact
LS DA
USB
V.24
MACH 1000
2
1
LS DA
3
4
9
10
P
StandByRM
FAULT
R1
R2
5
6
7
8
13
14
11
12
17
18
15
16
21
22
19
20
25
26
23
24
LS DA
LS DA
LS DA
LS DA
2.5
2.7
2.6
2.8
3.8
3.7
3.5
4.6
4.8
4.5
4.7
2.1
2.2
2.4
3.6
3.1
3.3
3.2
3.4
4.1
4.3
4.2
4.4
2.3
1.1
1.1
1.2
1.2
2
3 4 51
6
7
8
