2.12 Connecting the data lines
2.12.1 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port offers you the ability to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Default setting: Autonegotiation activated except for the HIPER-Ring ports:
100 Mbit/s, full duplex.
The port housing is electrically connected to the bottom panel.
2.12.2 10/100 Mbit/s PoE/PSE port
The 10/100 Mbit/s PoE/PSE port offers you the ability to connect network
components according to the standard IEEE 802.3 10BASE-T/100BASE-TX
and IEEE 802.3af.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
Pin Function
1 RD+ Receive path
2RD− Receive path
3 TD+ Transmission path
6TD− Transmission path
4,5,7,8 —

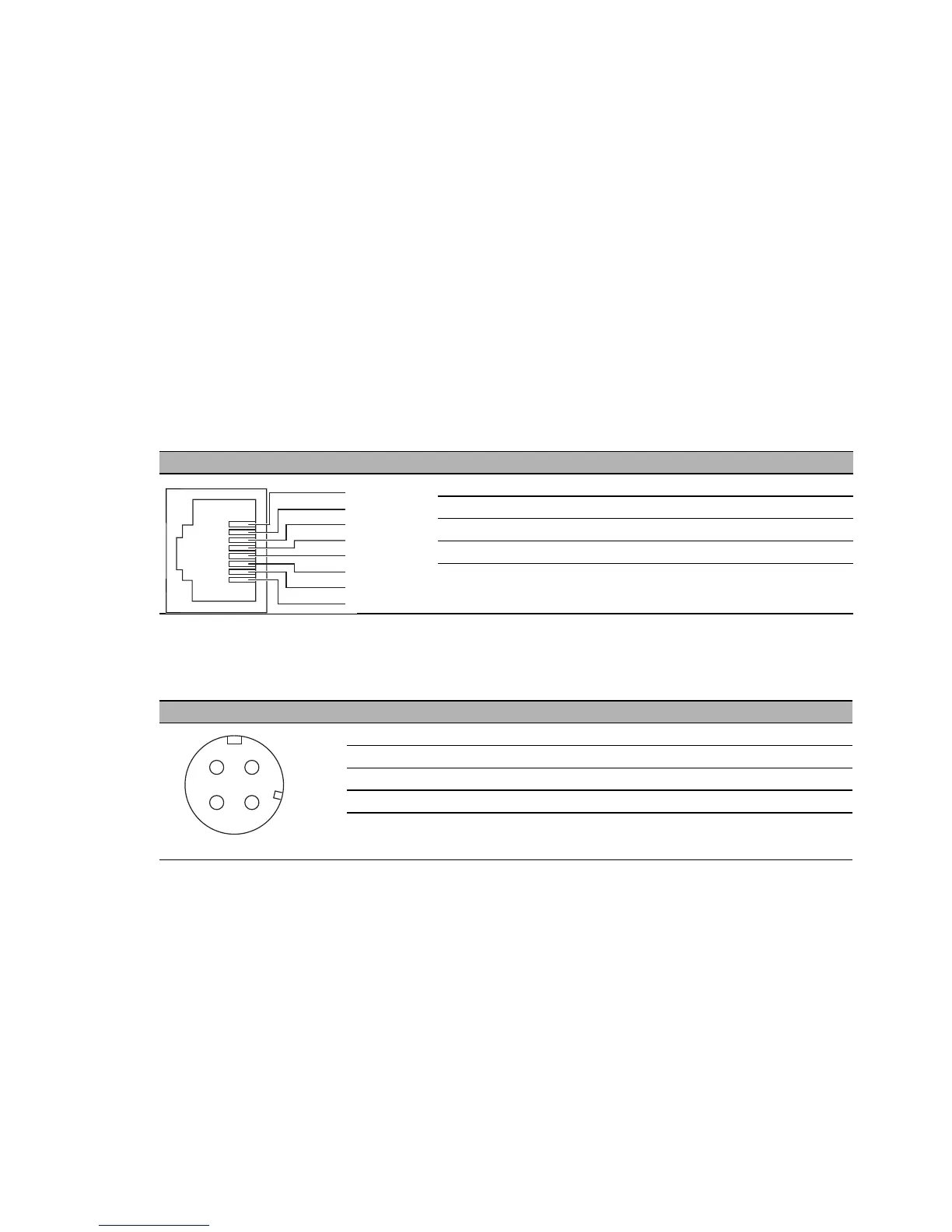

Table 11: Pin assignment of the 10/100 Mbit/s twisted pair port, RJ45 socket, MDI-X
mode
Pin Function
1 TD+ Transmission path
2 RD+ Receive path
3TD− Transmission path
4RD− Receive path
Table 12: Pin assignment of the 10/100 Mbit/s twisted pair port, M12 socket
1
2
3
4
5
6
7
8
RD-
12
43
RD+TD+
TD-
