1.5.3 1000 Mbit/s F/O port
Only OS30 device variants have 1000 Mbit/s F/O ports.
This port is an SFP slot.
The 1000 Mbit/s F/O port offers you the ability to connect network
components according to the IEEE 802.3 100BASE-SX/1000BASE-LX
standard.
This port supports:
 Autonegotiation
 Full duplex mode
Delivery state: Autonegotiation activated

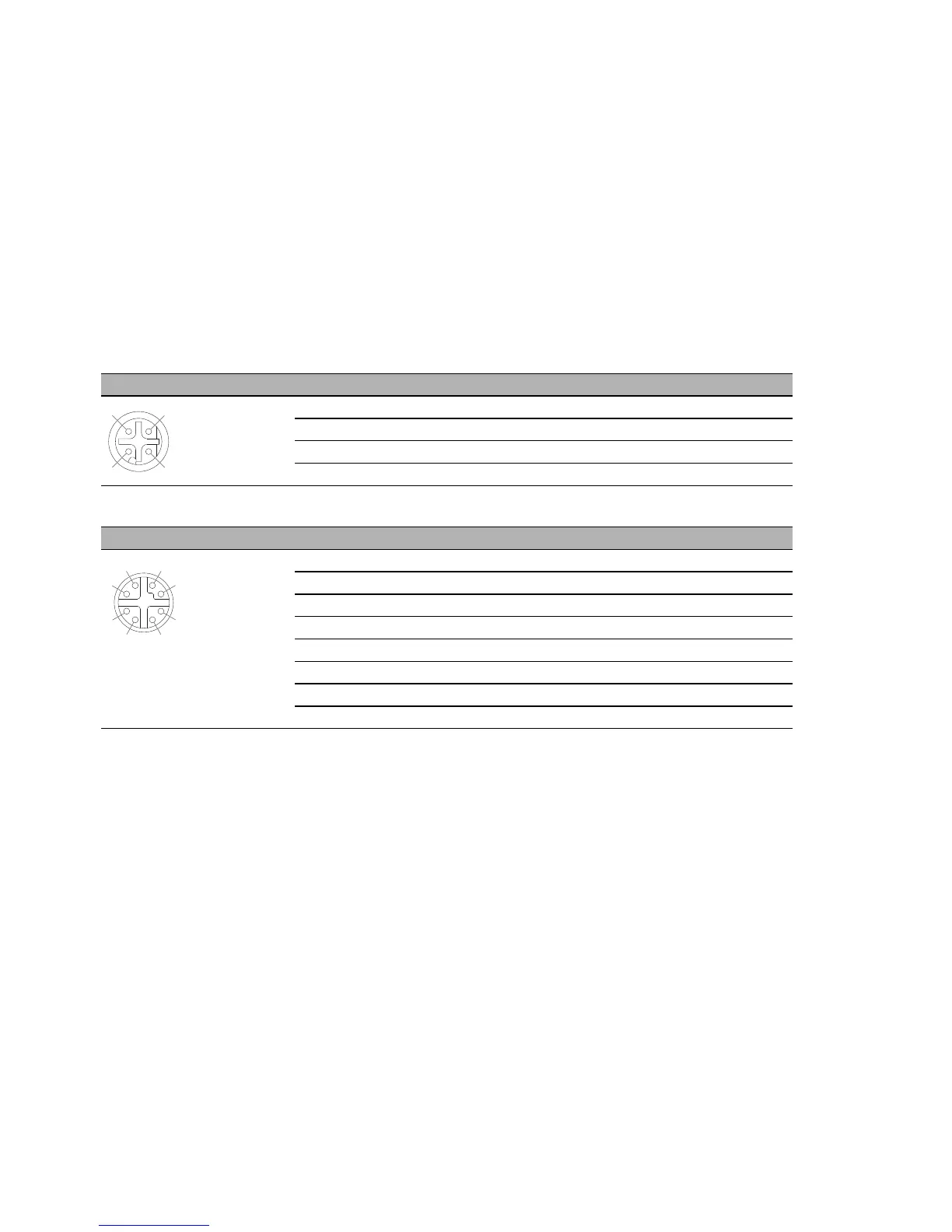

1.5.4 Pin assignments
M12 4-pin (D coded) Pin Data PoE
1 TX+ Positive V
PSE
2 RX+ Negative V
PSE
3TX− Positive V
PSE
4RX− Negative V
PSE
M12 8-pin (X-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE
1 RX+ BI_DB+ Negative V
PSE
2RX− BI_DB− Negative V
PSE
3 TX+ BI_DA+ Positive V
PSE
4TX− BI_DA− Positive V
PSE
5 — BI_DC+ —
6— BI_DC− —
7— BI_DD− —
8 — BI_DD+ —
1
23
4
18
2
36
7
