Depending on the basic module setting, the LEDs display, among other
things, the data reception and the connection status.
 MM2 media modules

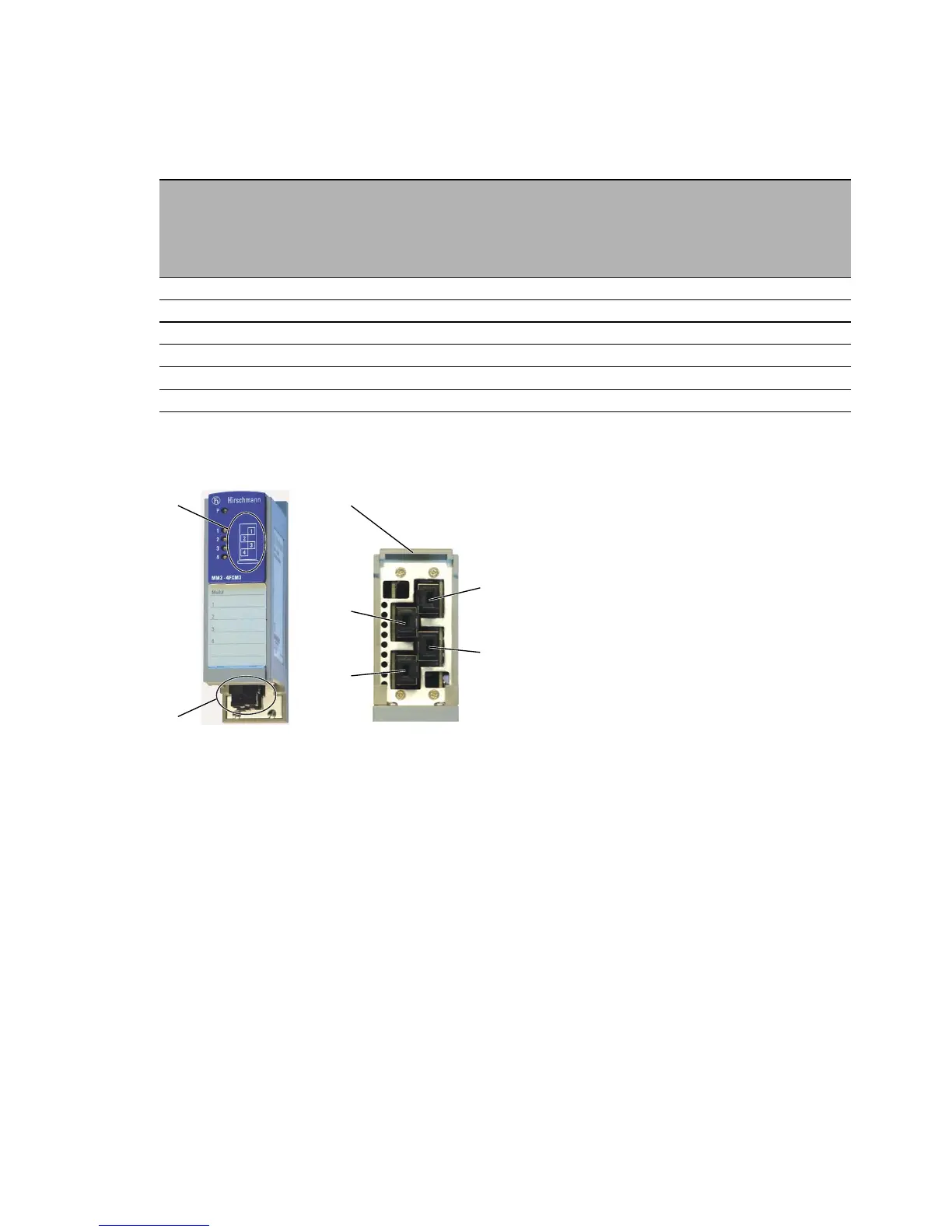

Figure 5: Port assignment
1 - Port 1
2 - Port 2
3 - Port 3
4 - Port 4
5 - Illustration of the port numbers
6 - Bottom side of the device
MM2 media modules
Module type
TP ports 10/
100 Mbit/s
F/O port
multi-mode
10 Mbit/s
F/O port
multi-mode
100 Mbit/s
F/O port
single-
mode 1300
nm, 100
Mbit/s
F/O port
single-
mode 1550
nm, 100
Mbit/s
MM2 - 4TX1 (- EEC)4, RJ45––––
MM2 - 2FLM4 – 2, ST – – –
MM2 - 4FXM3––4, MTRJ––
MM2 - 2FXM3 / 2TX1 2, RJ45 – 2, MTRJ – –
MM2 - 2FXM2 – – 2, DSC – –
MM2 - 2FXS2–––2, DSC–
Table 1: Media connections per MM2 media modules (number and type)
