At the V.24 connection, a serial interface is provided for the local
connection of an external management station (VT100 terminal or PC
with corresponding terminal emulation) or an AutoConfiguration Adapter
ACA 11. This enables you to set up a connection to the Command Line
Interface (CLI) and to the system monitor.
The socket housing is electrically connected to the front panel of the
device.
The V.24 interface is not electrically isolated from the supply voltage.

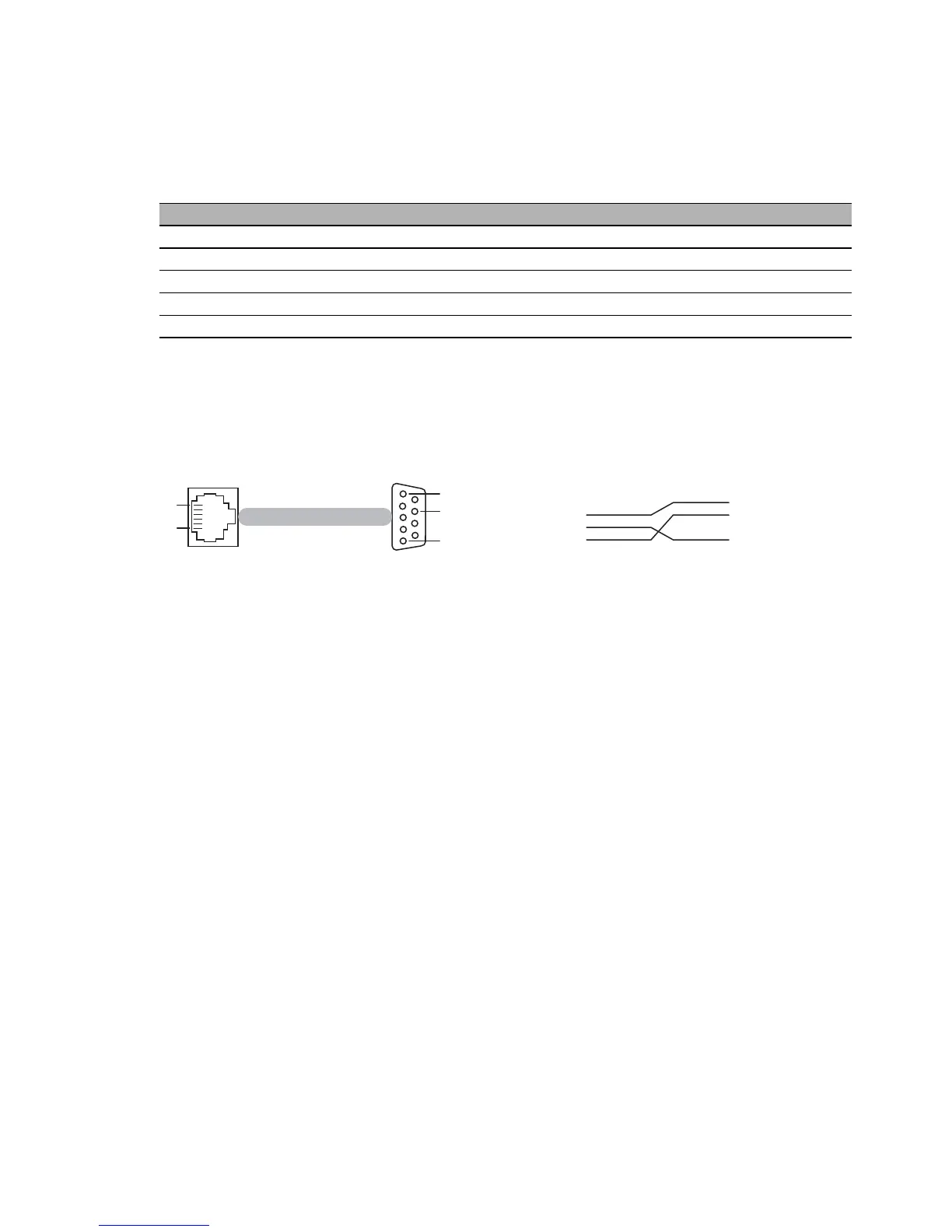

Figure 17: Pin assignment of the V.24 interface and the DB9 connector
Note: You will find the order number for the terminal cable, which is
supplied separately, in the Technical Data chapter (see page 54).
You will find a description of the V.24 interface in the “Basic Configuration
User Manual” on the CD-ROM.
VT 100 terminal settings
Speed 9,600 Baud
Data 8 bit
Stopbit 1 bit
Handshake off
Parity none
