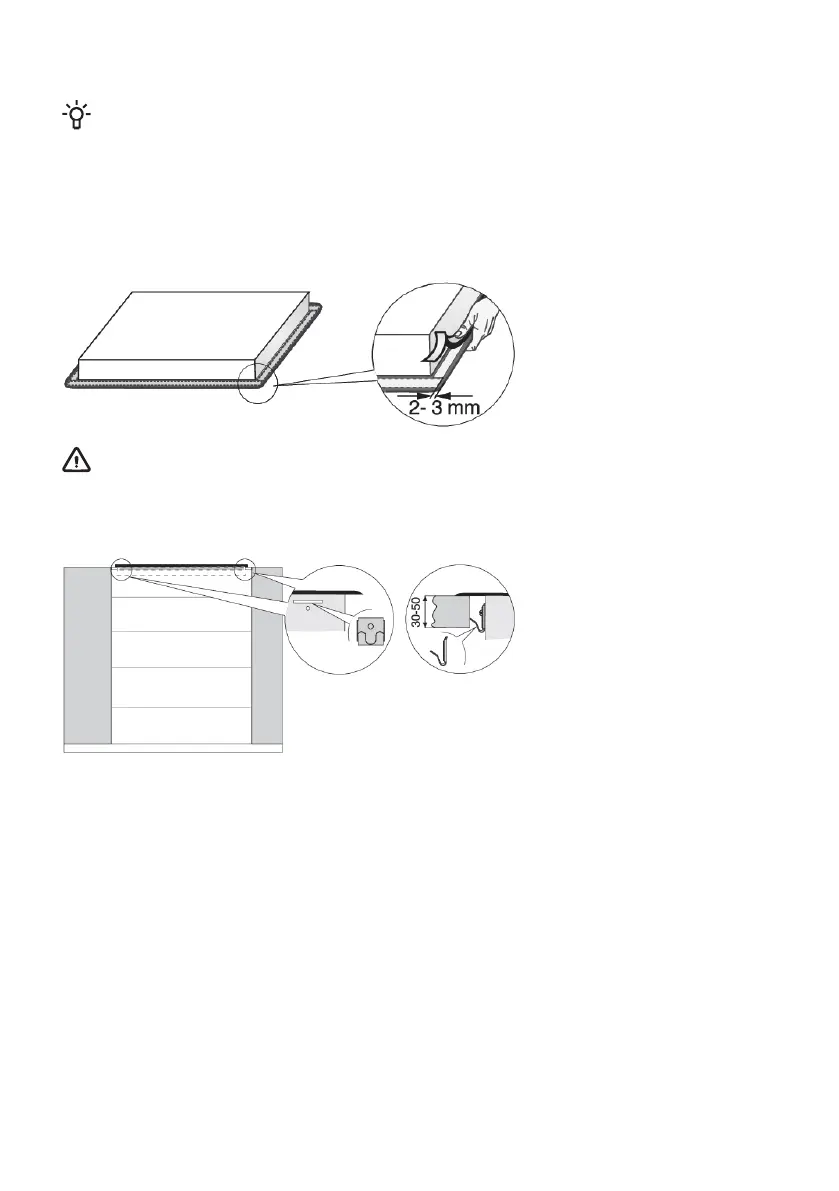

Fitting the foam gasket
INFORMATION!
Some appliances come with the gasket already fitted!
Before installing the appliance into a kitchen worktop, attach the foam gasket supplied with the
appliance to the bottom side of the glass ceramic hob. Remove the protective film from the gasket.
Attach the gasket to the bottom side of the glass (2–3 mm away from the edge). The gasket has to
be applied along the entire edge of the glass. The gasket may not overlap in the corners. When fitting
the gasket, make sure it is not damaged by or in contact with any sharp objects.
WARNING!
Do not install the appliance without the gasket!
Fitting the fixing clamp
• The worktop has to be completely level. Protect the cut out surfaces.
• Use the four supplied screws (4x) to attach the fi xing elements (4x) to the hole and cutout in the
front and back wall of the cooking hob.
• Insert the cooking hob into the cut-out and press it strongly towards the worktop from above.
• Do not use screws longer than 6.5 mm to tighten the fixing clamp.
27
