Connecting devices to your Hisense • Roku TV
This section provides the steps to connect various types of devices to the TV.

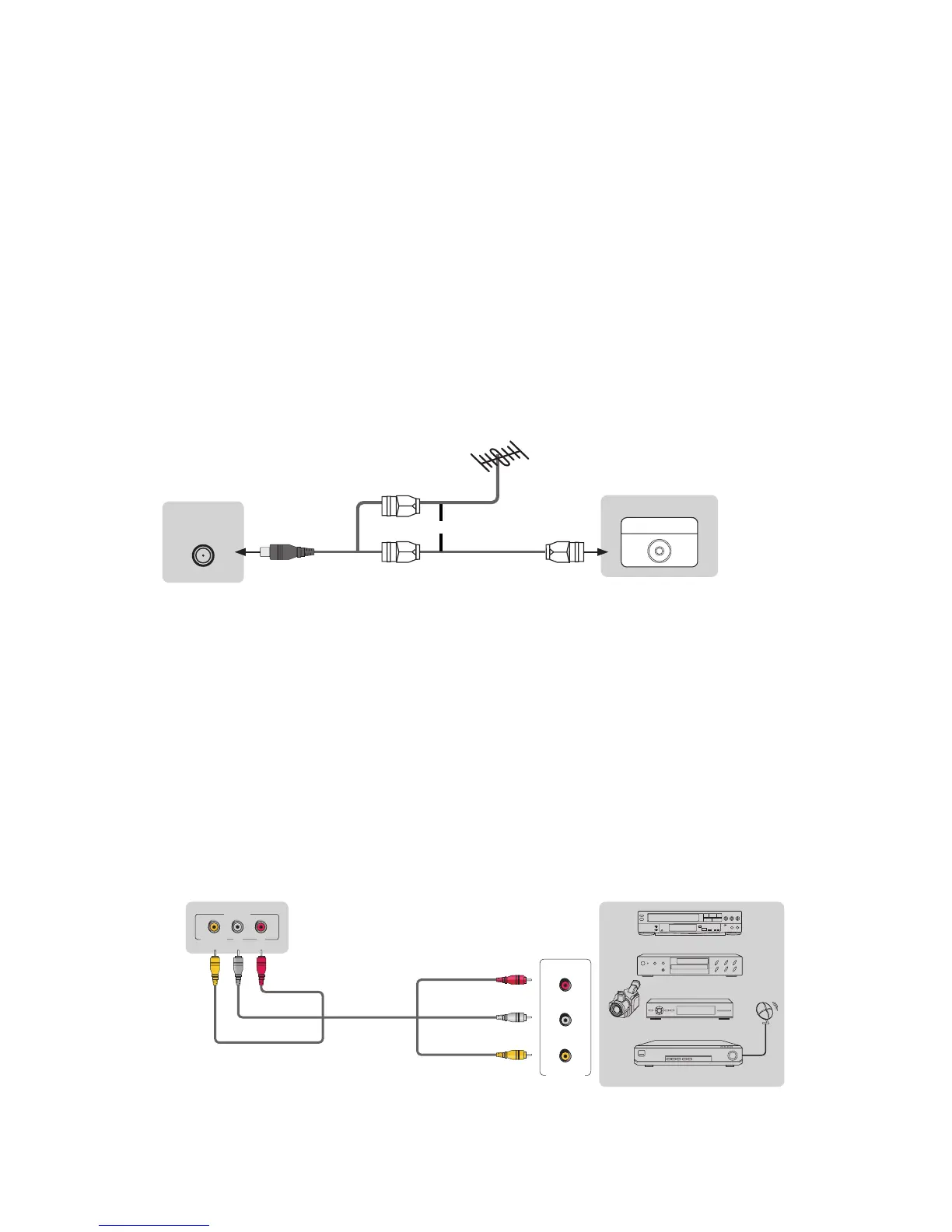

Connecting an antenna, cable or satellite box
1. Connect one end of a coaxial cable (not included) to the [RF OUT] jack on the antenna, cable or
satellite box. If you are using an antenna with twin-lead cable, you may need a 300-75 Ohm adapter
(not provided) to connect it to the back of your TV. Likewise, if you are using several antennas, you
may need a combiner (not provided).
2. Connect the other end of the cable to the [ANT/CABLE IN ] jack on the side of the back panel.
3. Select Antenna TV as the input source on the Home screen to setup the TV for antenna use.
Connecting an Audio Visual (AV) device with a composite cable
1. Use the audio and video cables to connect the composite video/audio jacks (of the external AV
device) to the AV IN jacks of the TV. (Video = yellow, Audio Left = white, and Audio Right = red).
2. Plug the connected devices into the AV connectors on the TV before switching it on.
3. Select AV as the input source on the Home screen.
