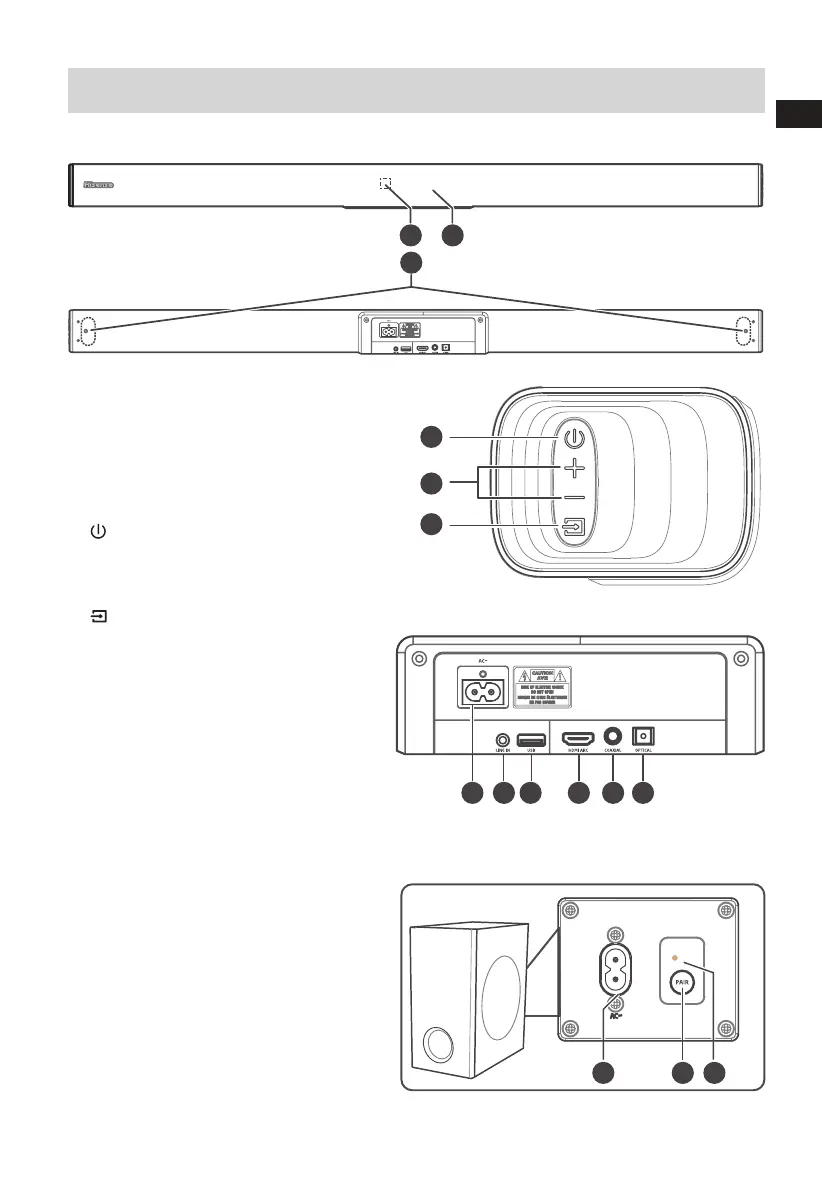

Identifying the Parts
Main Unit
1 Remote Control Sensor
Receive signal from the remote control.
2 Display Window
Show the current status.
3 Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
4 (ON/OFF) Button
Switch the unit between ON and Standby mode.
5 +/- (Vol+/Vol-) Buttons
Increase/decrease the volume level.
6
(SOURCE) Button
Select the play function.
7 AC~ Socket
Connect to the power supply.
8 LINE IN Socket
Connect to an external audio device.
9 USB Socket
Insert the USB device to play music.
10 HDMI ARC Socket
Connect to a TV via HDMI cable.
11 COAXIAL Socket
Connect to a coaxial audio output on the TV.
12 OPTICAL Socket
Connect to an optical audio output on the TV.
Wireless Subwoofer
1 AC~ Socket
Connect to power supply.
2 PAIR Button
Press activate the pairing function between
the main unit and the subwoofer.
3 PAIR Indicator
Light up solidly when the pairing succeed.
