5. Placement and Mounting
5.1 Placement
A If your TV is placed on a table, you can place
the soundbar on the table directly in front of
the TV stand, centered with the TV screen.
B If your TV is attached to a wall, you can
mount the soundbar on the wall directly
below the TV screen.
5.2 Wall Mounting (if using option-B)
- Installation must be carried out by qualied
personnel only. Incorrect assembly can
result in severe personal injury and property
damage (if you intend to install this product
yourself, you must check for installations
such as electrical wiring and plumbing
that may be buried inside the wall). It is the
installer’s responsibility to verify that the
wall will safely support the total load of the
soundbar and wall brackets.
- Additional tools (not included) are required
for the installation.
- Do not overtighten screws.
- Keep this instruction manual for future
reference.
- Use an electronic stud finder to check the
wall type before drilling and mounting.
WARNING
• To prevent injury, this apparatus must be securely
attached to the oor/wall in accordance with the
installation instructions.
• Suggested wall mounting height: ≤ 1.5 meters.

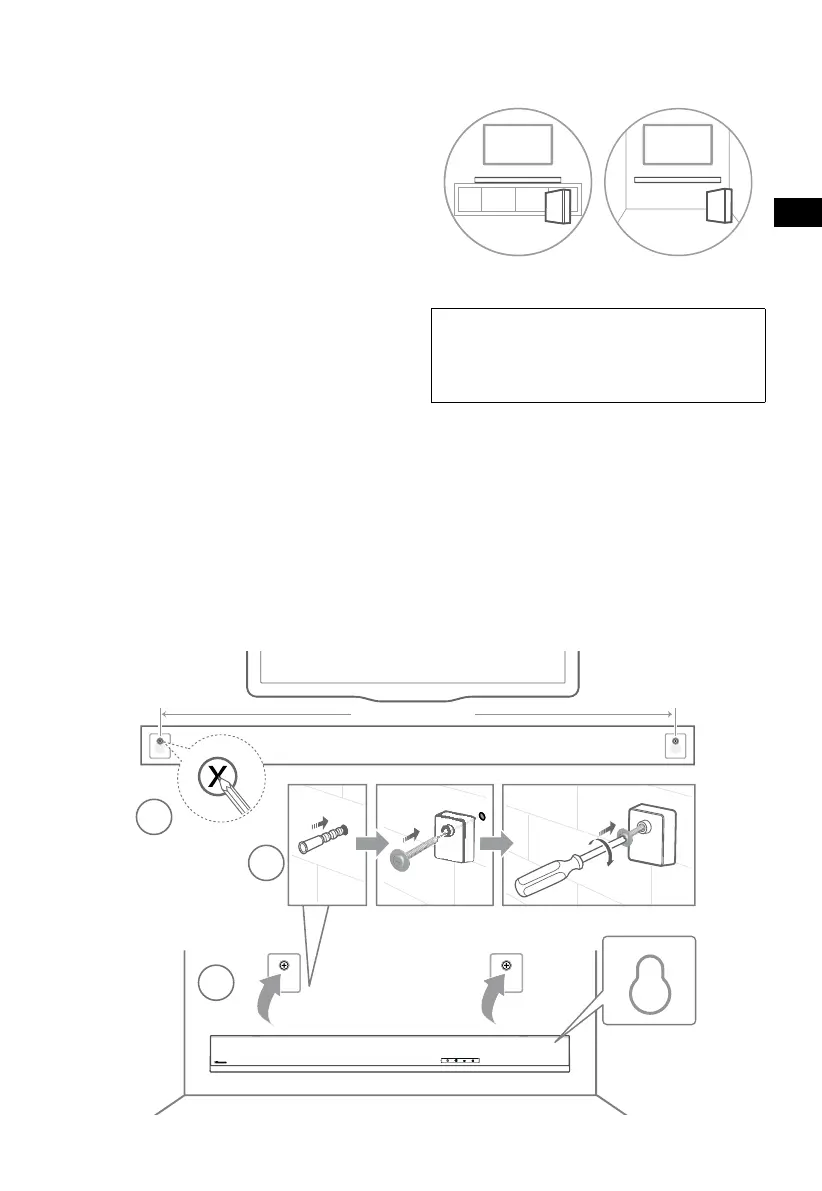

1. Drill 2 parallel holes (Ø 5.5-6 mm each
according to wall type) in the wall. The
distance between the holes should be 670
mm.
2. Insert the supplied wall anchors into 2 screw
holes on the wall. Insert the supplied wall
bracket screws through the wall brackets into
the wall anchors. Fix and tighten the screws
on the wall.
3. Hang the unit on the wall mount brackets.
