98 10 11 12
6
4 5
13
7
1 2 3
2

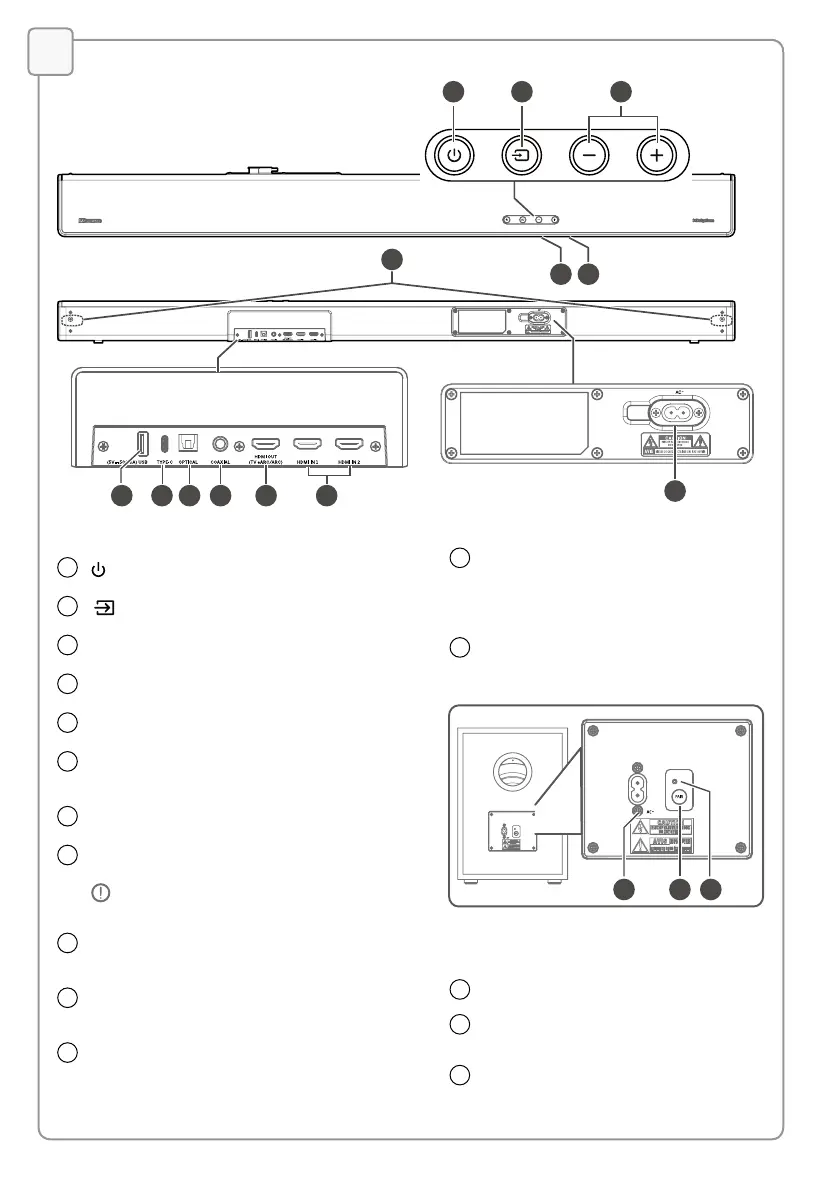

Identifying the Parts
Main Unit
1
(ON/OFF) button
Switch the unit between ON and Standby mode.
2
(SOURCE) button
Select the play function.
3
VOL+/VOL- buttons
Increase/decrease the volume level.
4
Display Window
Show the current status.
5
Remote Control Sensor
Receive signal from the remote control.
6
Screws
Remove the screws then install the wall mounting
screws into the back of the unit.
7
USB Socket
Insert the USB device to play music.
8
TYPE-C Socket
For the Dongle of wireless rear surround speaker.
The surround kit needs to be purchased
separately. This port can't be used to connect to
other Type C devices.
9
OPTICAL Socket
Use to connect to the OPTICAL OUT socket on an
external device.
10
COAXIAL Socket
Use to connect to the COAXIAL OUT socket on an
external device.
11
HDMI OUT (TV eARC/ARC) Socket
The port for connecting a TV. The port supports the
eARC/ARC HDMI feature, which allows the soundbar
to play audio that originates on the connected TV.
12
HDMI IN (1/2) Sockets
Two HDMI ports for connecting HDMI source
devices, such as a DVD player, Blu-ray Disc™
player, or gaming console. Note that only one
HDMI input is usable at a time.
13
AC~ Socket
Connect to power supply.
Wireless Subwoofer
1
AC~ Socket
Connect to power supply.
2
PAIR button
Press activate the pairing function between the
main unit and the subwoofer.
3
PAIR Indicator
Light stops blinking once the Subwoofer is
paired with the Soundbar.
