Hisun HS250UTV - Starter Motor and Water Pump

-146-
ENGINE
- 146 -

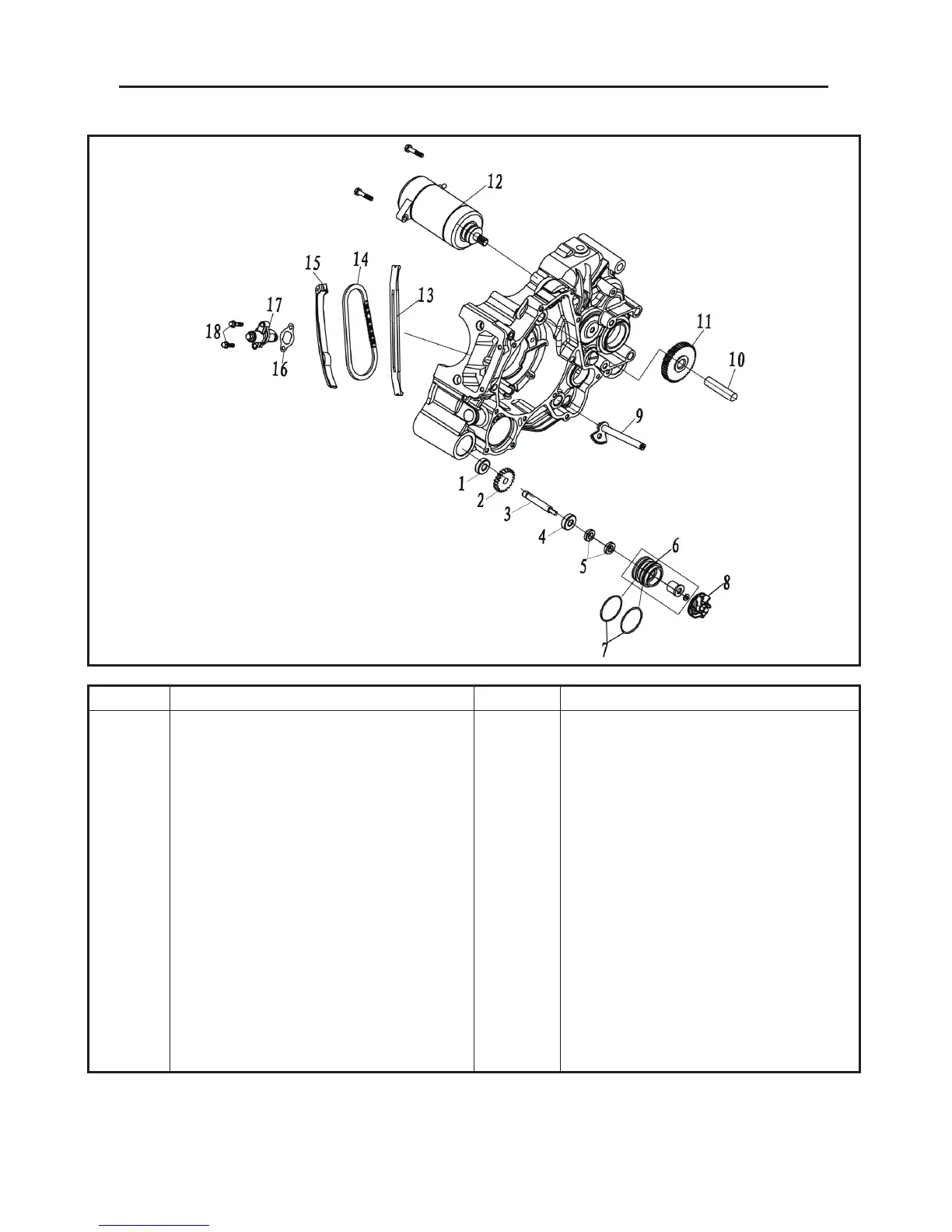

STARTER MOTOR AND WATER PUMP
No. Part Name Qty Remarks
Removing the starter motor and water
pump
Remove the parts in the order listed
1
Needle pin HK1010
1
2
Water pump driven gear
1
3
Water pump shaft
1
4
Bearing 6000
1
5
Oil seal 10×20×5
2
6
Water pump bearing soleplate
1
7
O-ring 38.5×2.5
2
8
Water pump vane
1
9
Shift arm components
1
10
Pair gearwheel shaft
1
11
Pair gearwheel
1
12
Start motor
1
ENGINE
- 147 -
No. Part Name Qty Remarks
13
Tensioner plate assy
1
14
Timing chain 102
1
15
Guide plate
1
16
Tensioner gasket
1
17
Tensioner assy
1
18
Flange bolt M6×16
2
For assembly, reverse the disassembly
procedure.
