8.

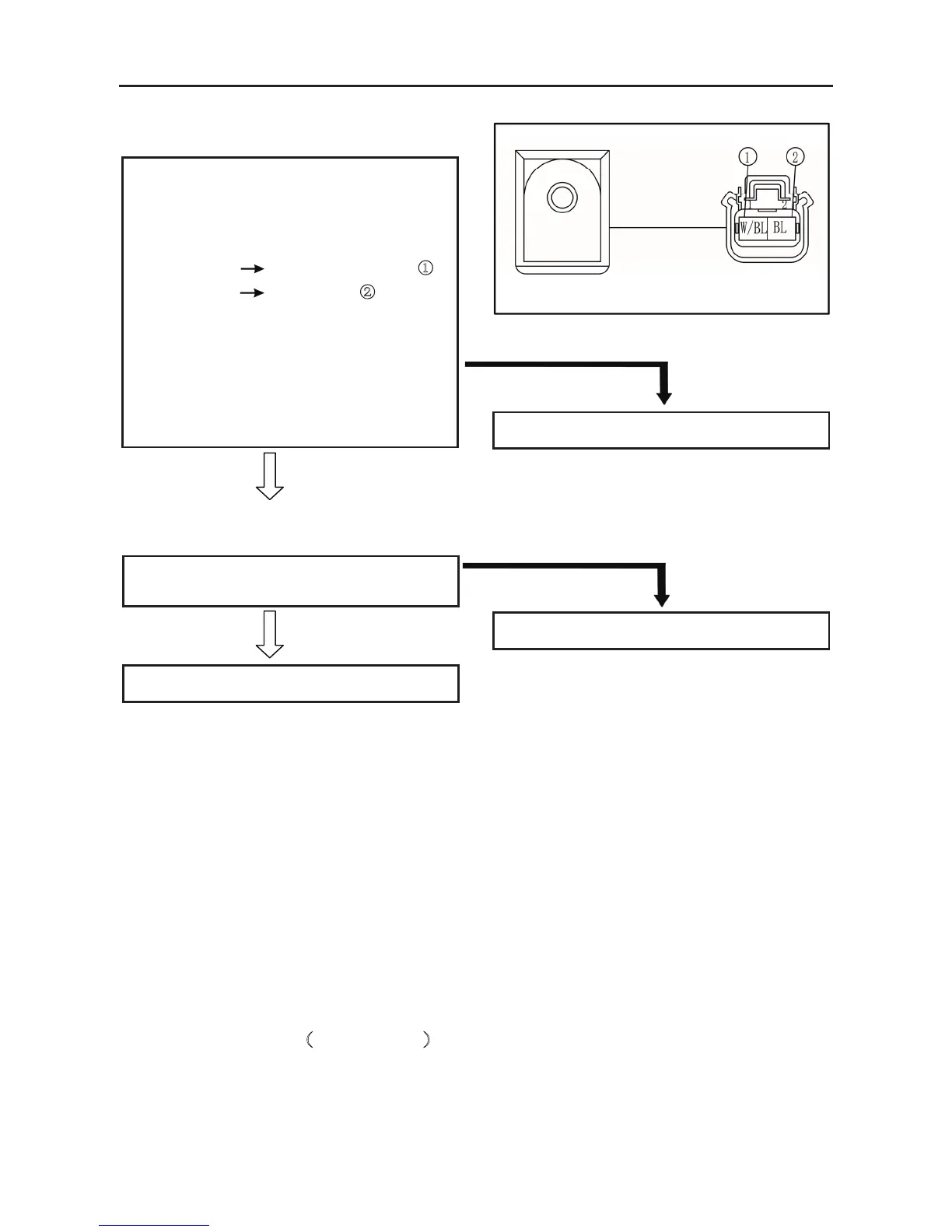

Rotor rotation direction detection coil resistance
• Disconnect the A.C. magneto coupler from
the wire harness.
• Connect the pocket tester (Ω × 1) to the rotor
rotation direction detection coil terminal.
Tester (+) lead
Blue/White terminal ①
Tester (–) lead
Blue terminal ②
• Check the rotor rotation direction detection
coil for the specified resistance.
Rotor rotation direction detection coil
resistance
0.063 ~ 0.077 Ω at 20 °C (68 °F)
(Red – White/Blue)
MEETS SPECIFICATION
9.Wiring connection
• Check the connections of the entire ignition
system. Refer to “CIRCUIT DIAGRAM”.
CORRECT
Replace the ECU unit
ELECTRIC STARTING SYSTEM
CIRCUIT DIAGRA（
See 292 page）
OUT OF SPECIFICATION
Replace the pickup coil/stator assembly.
POOR CONNECTION
Properly connect the ignition system.
