3.3 Applications
x Surround Sound DVD Systems
x Televisions
x Flat Panel Monitors
x Multimedia Computers
x Home Stereo Systems

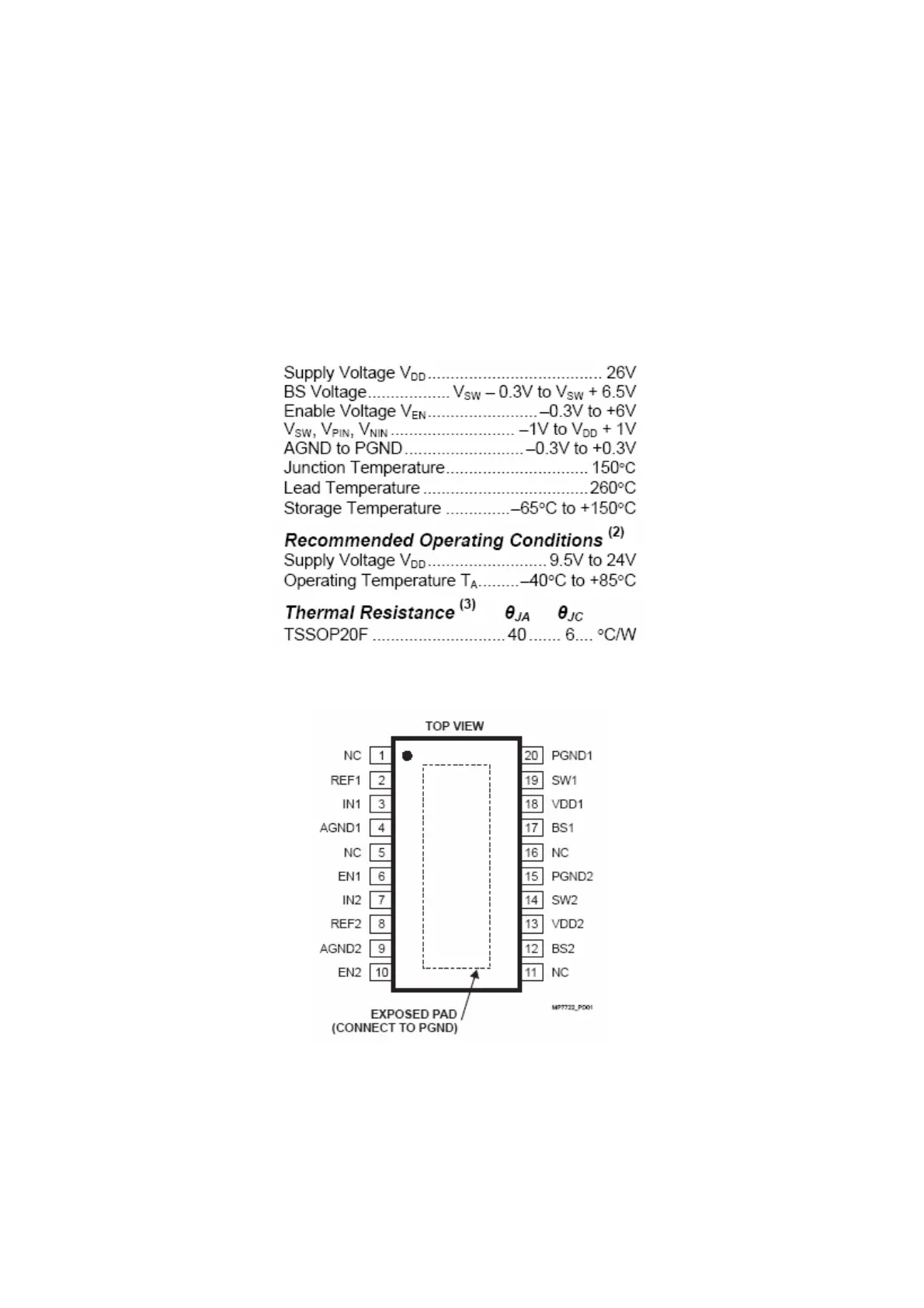

3.4 Absolute Ratings
3.5 Pinning
4. POWER STAGE
The DC voltages required at various parts of the chassis and inverters are provided by a
main power supply unit and power interface board. The main power supply unit is
designed for 24V and 12V DC supply. Power stage which is on-chasis generates +24V
for audio amplifier, 1.8V and 3.3V stand by voltage and 8V, 12V, 5V and 3.3Vsupplies
for other different parts of the chassis.
