Hitachi 32PD7800 User Manual

58
32PD7800/42PD7800

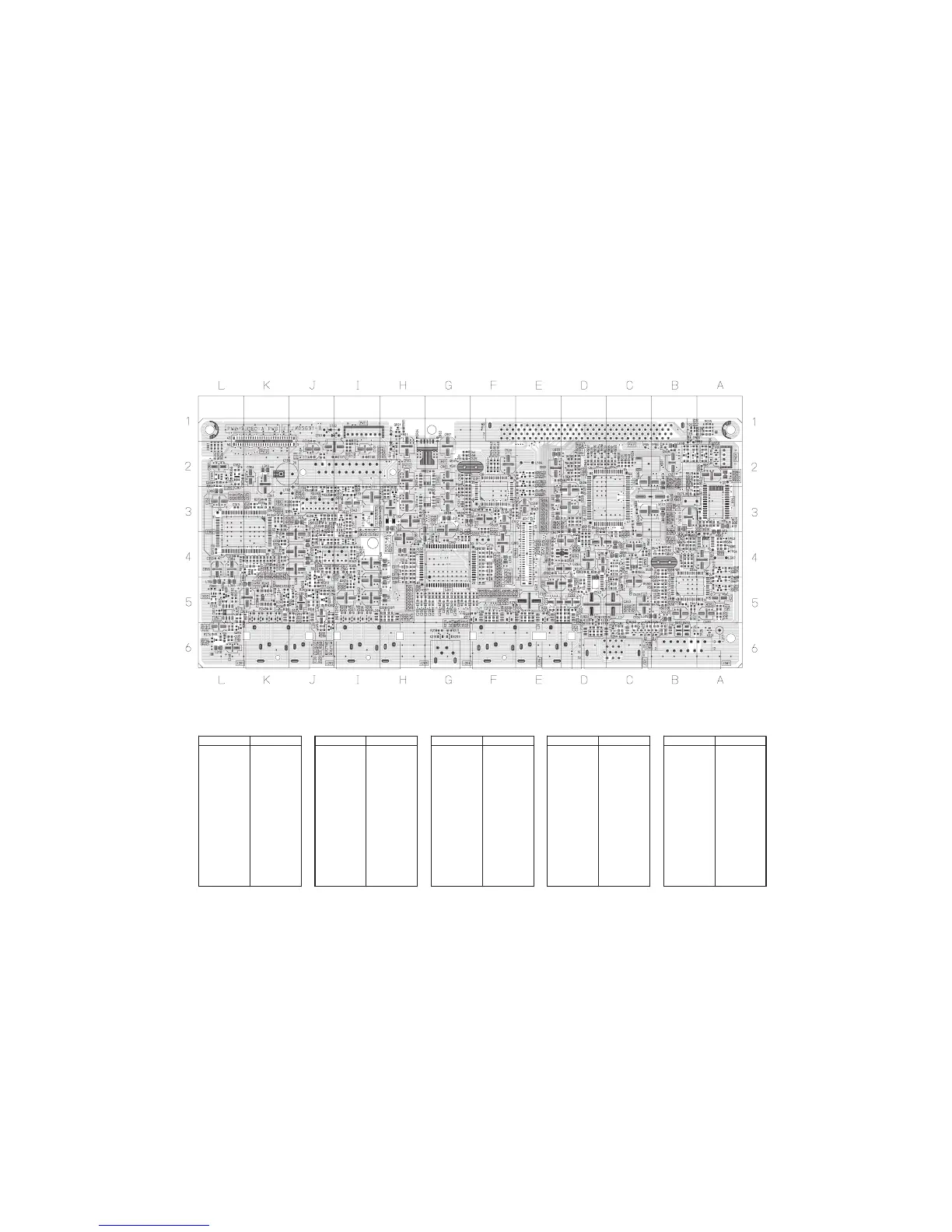

VIDEO board ( side-A )
Mainly chip parts reference table
Cir. No. Position Cir.No. Position Cir.No. Position Cir.No. Posit ion Cir.No. Position
D201 L6 I601 C3 L208 E5 L305 L5 L605 C4
D202 J5 I602 A4 L209 D5 L306 L3 L606 B3
D203 C5 I603 C4 L210 E5 L307 J4 L607 B2
D501 I3 I604 D4 L211 K5 L308 J4 L608 B2
I001 L5 I605 A3 L212 C4 L309 J3 L609 E2
I002 L5 IR01 G2 L213 D6 L310 K2 L610 A4
I201 G4 IR02 G2 L214 D6 L311 H4 L611 A2
I202 K5 IR03 G3 L215 C6 L312 H5 L612 A3
I203 D5 L201 J5 L216 B6 L502 H3 L613 B3
I302 L4 L202 K5 L218 L6 L503 G3 LH01 D5
I304 K4 L203 H5 L219 H4 L505 B5 LT01 H3
I305 L2 L204 I5 L220 F4 L506 B5 PVH1 E4
I306 L2 L205 F5 L221 G3 L602 E3 PVT2 K2
I501 F3 L206 F5 L301 H5 L603 E3 Q001 L5
I502 B5 L207 E5 L304 L5 L604 D3

Hitachi 32PD7800 Specifications

General

Screen Size	32 inches
Display Type	Plasma
Resolution	852 x 480
Aspect Ratio	16:9
Viewing Angle	160 degrees
HDMI Ports	1
Sound Output	20W (10W x 2)
Brightness	1000 cd/m²
Input Ports	Composite, S-Video, Component
