Hitachi 32PD7800 - Page 71

71
32PD7800/42PD7800

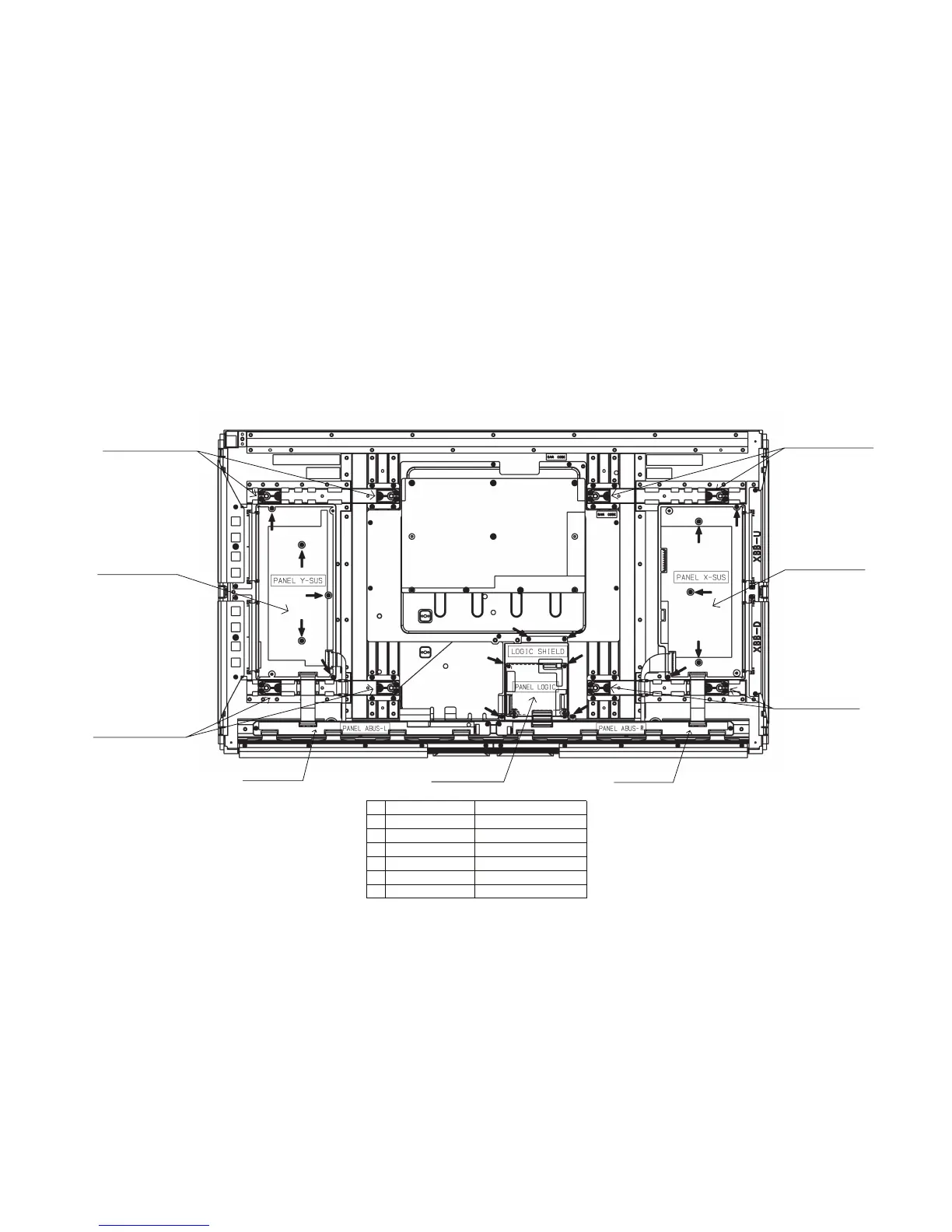

The figure of FHP Panel Module (42V)
Rear view
The state of a panel simple substance.
㧔ޓޓޓޓޓޓޓ㧕
No.
(1)
(2)
(3)
(4)
(5)
(6)
Spare Part Name
Panel Module
LOGIC PWB Ass’y
X-SUS PWB Ass’y
Y-SUS PWB Ass’y
A-BUS L PWB Ass’y
A-BUS R PWB Ass’y
FPF42C128128UD-55
FPF28R-LGC0045
FPF28R-XSS0026
FPF28R-YSS0027
FPF28R-ABL0019
FPF28R-ABR0020
FHP Spare Part#
Manufactured at FHP factory.
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
X-SUS PWB ASS'Y
Manufactured at
FHP factory
(3)
(6)
(2)
Manufactured at FHP factory.
LOGIC PWB ASS
Manufactured at FHP factory.
(5)
(4)
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
Y-SUS PWB ASS'Y
Manufactured at
FHP factory
Panel ABUS-R
Panel ABUS-L
