Hitachi 53SDX20BB - Page 27

27
OPTICAL FOCUSING ADJUSTMENT RED
(6) In case of B lens. Set the position where the
chromatic aberration changes from purple to
green. As shown below, observe the vertical
bright line and adjust lens focus where the
purple or green chromatic aberration slightly
appears inside and purple or green outside
(reference value : 1~4mm) at the point specified
in table below. Change the signal and fine-
adjust in the same way as the G lens.
O
I
L
NOTE: Setting the center between Red and crimson
is optimum.
(5) In case of R lens. Set the position where the
chromatic aberration changes from red to
crimson. As shown below, observe the vertical
bright line and adjust lens focus where the
crimson or red chromatic aberration slightly
appears inside, and crimson or red outside
(reference value : 1~4mm) at the point specified
in table below. Change the signal and fine-
adjust the same way as the G lens.
OPTICAL FOCUSING ADJUSTMENT GREEN

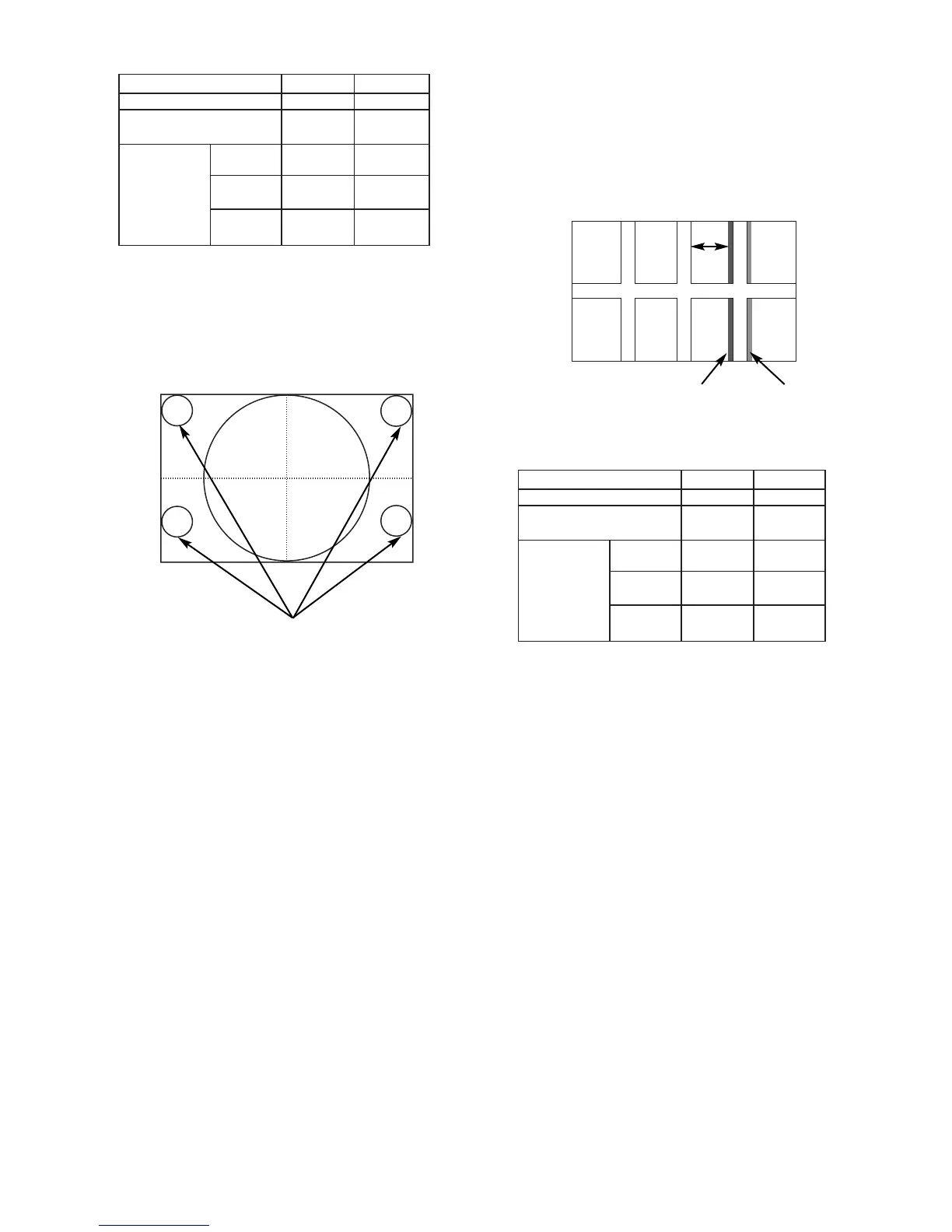

Change the signal to the circle pattern and fine
adjust. Observe the corner part of the screen,
especially observe number in the small circle
when adjusting. If the focus performance at the
screen center exceeds the lower limit, it is
acceptable.
CHASSIS DP15H/J DP15K
SCREEN SIZE 53” 43”
L1 and L2
(PITCHES from CENTER) 3.0 3.0
BETWEEN
L1&L2 * *
COLOR * *
ABERRATION I 2.0mm MAX 2.5mm MAX
* **
O 2.0mm MAX 2.5mm MAX
(NOTE) * Slightly reddish or no color
** Slightly reddish or no color
Small circle of circle pattern
NOTES: 1. Since the G light is very important for
picture quality and performance, pay
special attention in its adjustment.
2. Be careful not to touch the lens with your
fingers when adjusting.
CHASSIS DP15H/J DP15K
SCREEN SIZE 53” 43”
L1 and L2
(PITCHES from CENTER) 3.0 3.0
BETWEEN
L1&L2 * *
COLOR * *
ABERRATION I 2.0mm MAX 3.5mm MAX
* **
O 2.0mm MAX 2.5mm MAX
(NOTE) * Slightly reddish or no color
** Slightly reddish or no color
