--- 8 ---

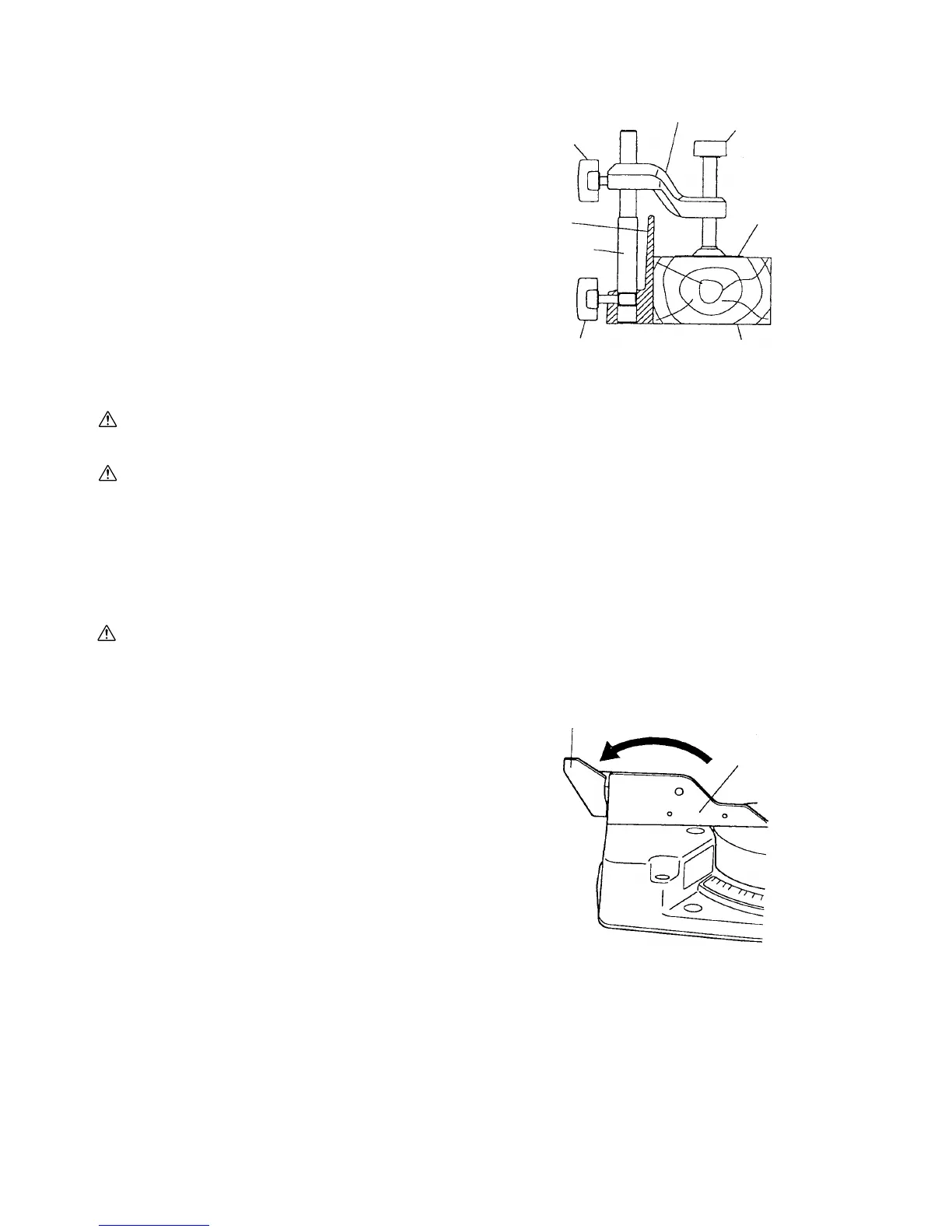

8-3. How to Use The Vise Assembly
(1) The vise assembly can be mounted on either the left fence
(fence (B)) or the right fence (fence (A)) by loosening
6 mm wing bolt (A).
(2) The screw holder can be raised or lowered according to the
height of the workpiece by loosening 6 mm wing bolt (B).
After the adjustment, firmly tighten 6 mm wing bolt (B) and
fix the screw holder.
(3) Turn the upper knob and securely fix the workpiece in
position (Fig. 16).
WARNING: Always firmly clamp or vise to secure the workpiece to the fence; otherwise the
workpiece might be thrust from the table and cause bodily harm.
CAUTION: Always confirm that the motor head (see Fig. 1) does not contact the vise assembly when
it is lowered for cutting. If there is any danger that it may do so, loosen the 6 mm wing
bolt (B) and move the vise assembly to a position where it will not contact the saw blade.
8-4. Confirmation for Use of Sub Fence
WARNING: In the case of left bevel cutting, turn the sub fence counterclockwise. Unless it is turned
counterclockwise, the main body or saw blade may contact the sub fence, resulting in an
injury.
Fig. 7
Fig. 8
Vise shaft
Screw holder
Fence
Vise plate
6 mm wing
bolt (B)
Workpiece
6 mm wing
bolt (A)
Knob
Sub fence
Turn.
Fence (B)This power tool is equipped with a sub fence. (See Fig. 1.)
In the case of direct angle cutting and angle cutting, use the
sub fence. Then, you can realize stable cutting of the
material with a wide back face. In the case of left bevel
cutting, raise the sub fence up as illustrated in Fig. 9 and
then turn it counterclockwise.
