(2) Setting to cut crown moldings at positions w and e in Fig. 29 (see Fig. 32; tilt the head to the left):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (B in Fig. 28) contacts the fence as in Fig. 33.

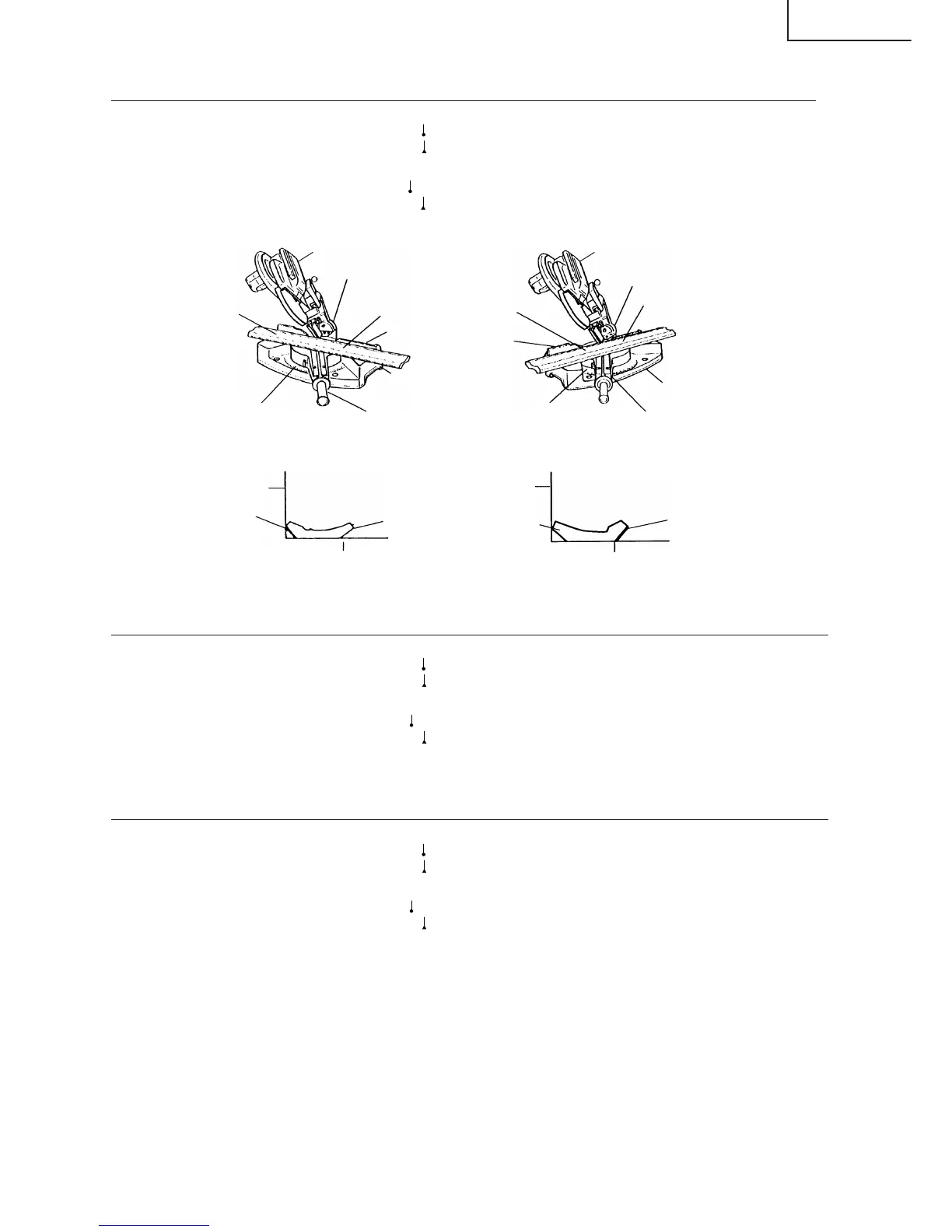

Fig. 30 Fig. 32
Fig. 31 Fig. 33
(3) Setting to cut crown moldings at positions q and r in Fig. 29 (see Fig. 34; tilt the head to the right):
q Turn the turntable to the right and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (B in Fig. 28) contacts the fence as indicated
Fig. 35.
(4) Setting to cut crown moldings at positions w and e in Fig. 29 (see Fig. 36; tilt the head to the right):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (A in Fig. 28) contacts the fence as in Fig. 37.
