22
English
Fig. 34 Fig. 36
Fig. 35 Fig. 37

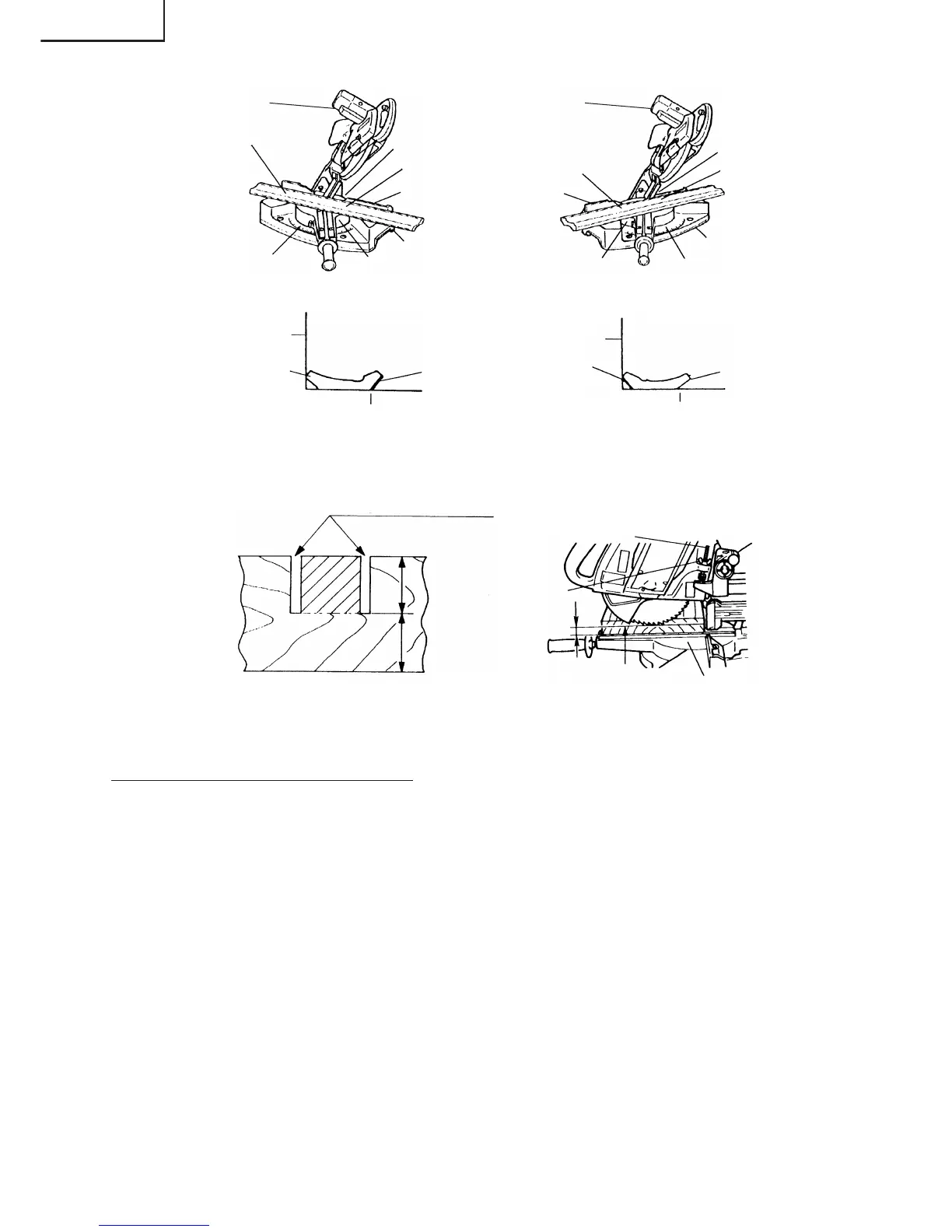

11. Groove cutting procedures
Fig. 38 Fig. 39
Grooves in the workpiece can be cut as indicated in Fig. 38 by adjusting the 8mm depth adjustment bolt.
Cutting depth adjustment procedure:
(1) Loosen the 8mm wing nut and turn the 8mm depth adjustment bolt by hand.
(2) Adjust to the desired cutting depth by setting the distance between the saw blade and the surface of
the base (see b in Fig. 38).
(3) The 8mm wing nut must be properly tightened after the adjustment has been completed.
NOTE: When cutting a single groove at either end of the workpiece, remove the unneeded portion
with a chisel.
Bevel Angle Scale
Fence
Turntable
q
r
Base
Miter Angle
Scale
Fence
Turntable
Bevel Angle Scale
Base
Miter Angle
Scale
w
e
Fence
Table on Base
A
B
Fence
Table on Base
A
B
Head
Head
a
b
8mm Depth Adjustment Bolt
8mm
Wing Nut
Bottom Line of
the Groove
Turntable
b
Cut grooves with saw blade
