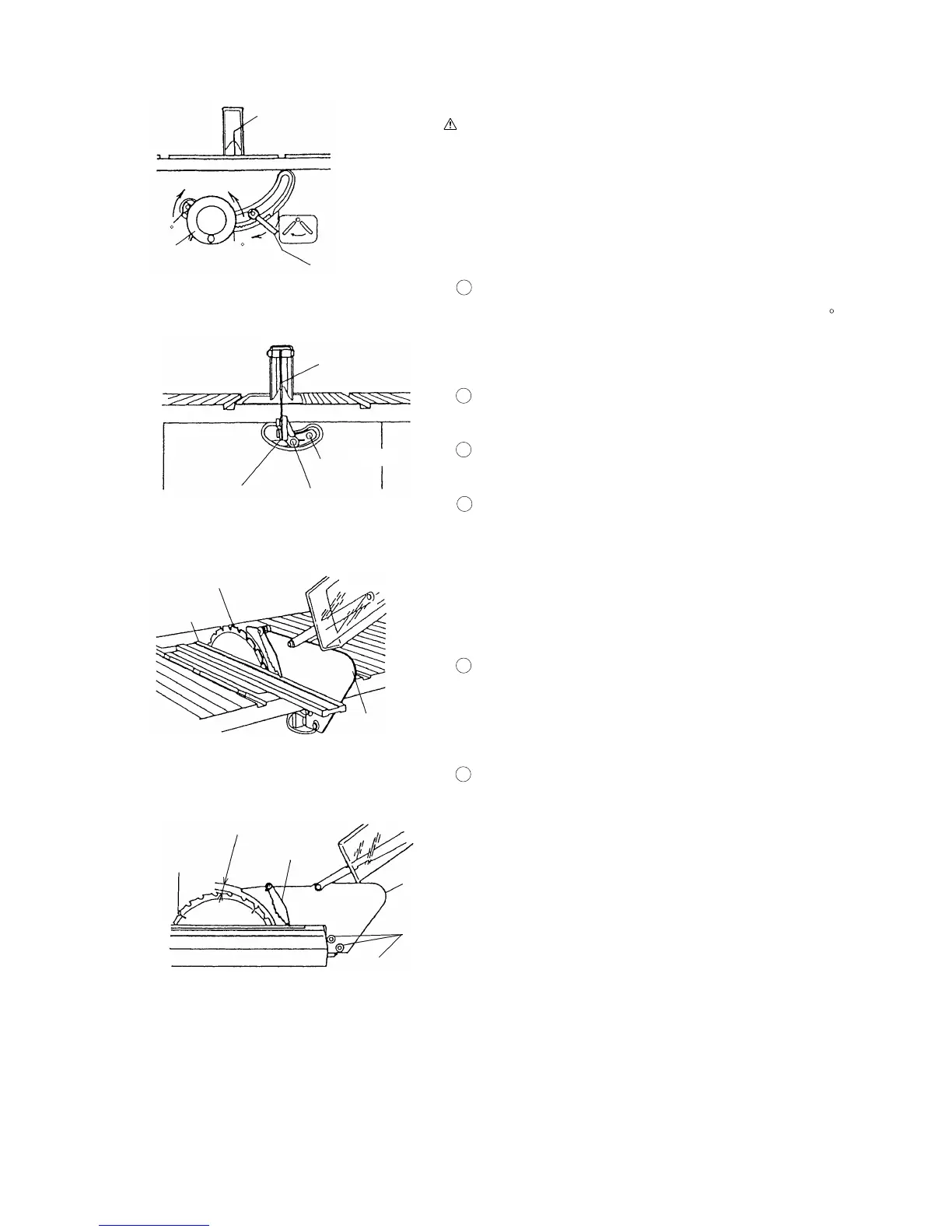

8-2-4. Mounting and Adjusting the Saw Blade Guard Assembly (for the U.S.A., Australia and New Zealand)
Saw blade
Up
Down
Wheel
Tighten
Loosen
Tilt lock handle
0
45
Fig. 10-b
Spreader
Guard bracket
6 x 60 mm Bolt
Fig. 10-c
Saw blade
Straightedge
Spreader
Fig. 10-d
Less than
1/2" (12.7 mm)
Saw blade
Anti-kickback
pawl
Spreader
6 x 16 mm
Bolts
CAUTION: The saw blade guard and spreader assembly
must be aligned properly to the saw blade in
order to prevent kickback.
Mount the saw blade guard assembly, which includes the
spreader and anti-kickback pawls (see Fig 10-d).
(1) Mounting the spreader
1 Loosen the saw blade tilt lock handle, move the saw blade
tilting mechanism to the left and set the saw blade to 0 by
means of the stopper. Tighten the saw blade tilt lock
handle to lock it in position.
2 Turn the wheel fully clockwise and set the saw blade to the
maximum cutting height (see Fig. 10-a).
3 Put a 6 mm spring washer and a D13 flat washer on to the
6 x 60 mm and 6 x 35 mm bolts.
4 Tentatively fasten the spreader on the rear section of the
body using the two 6 mm bolts mentioned above (see Fig.
10-b). (The guard bracket must be attached to the
spreader in advance.)
(2) Adjusting the spreader
1 Use a straightedge to align the spreader with the saw blade
(see Fig. 10-c).
Tighten the two 6 x 16 mm bolts (see Fig. 10-d) with a
wrench to lock the spreader.
2 Check clearance between saw blade tip and the spreader.
It should be less than 1/2" (12.7 mm) at all positions. If not,
loosen the two 6 x 16 mm bolts securing the spreader to
the guard bracket with a wrench and move the spreader up
and down. After adjustment of the spreader is complete,
firmly retighten the two 6 x 16 mm bolts with a wrench (see
Fig. 10-d).
6 x 35 mm Bolt
To Next Page
