10. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY

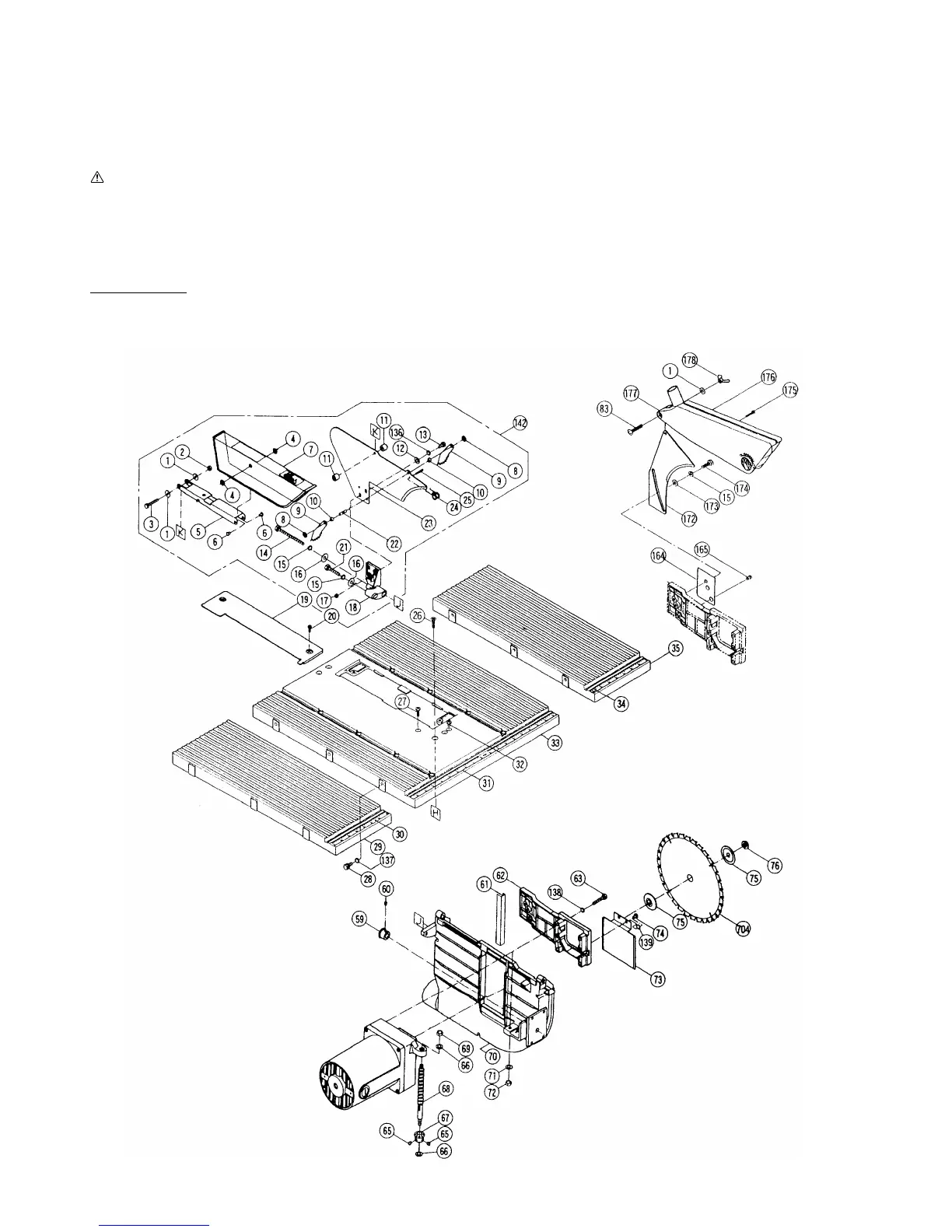

Please follow the precautions below for disassembly and reassembly procedures. The circled numbers in the
following figures and the [Bold] numbers in the descriptions below correspond to the item numbers in the Parts
List and exploded assembly diagrams.
CAUTION: Prior to attempting disassembly or replacement of the saw blade, ensure that the power cord
plug is disconnected from the power source.
10-1. Disassembly
A. Disassembly of the saw blade section
Tools required:
• Phillips head screwdriver
• 10 mm wrench
• 22 mm wrench (standard accessory)
• 23 x 26 mm wrench (standard accessory)
• Hex. wrench (standard accessory for Europe)
Fig. 25
To Next Page
