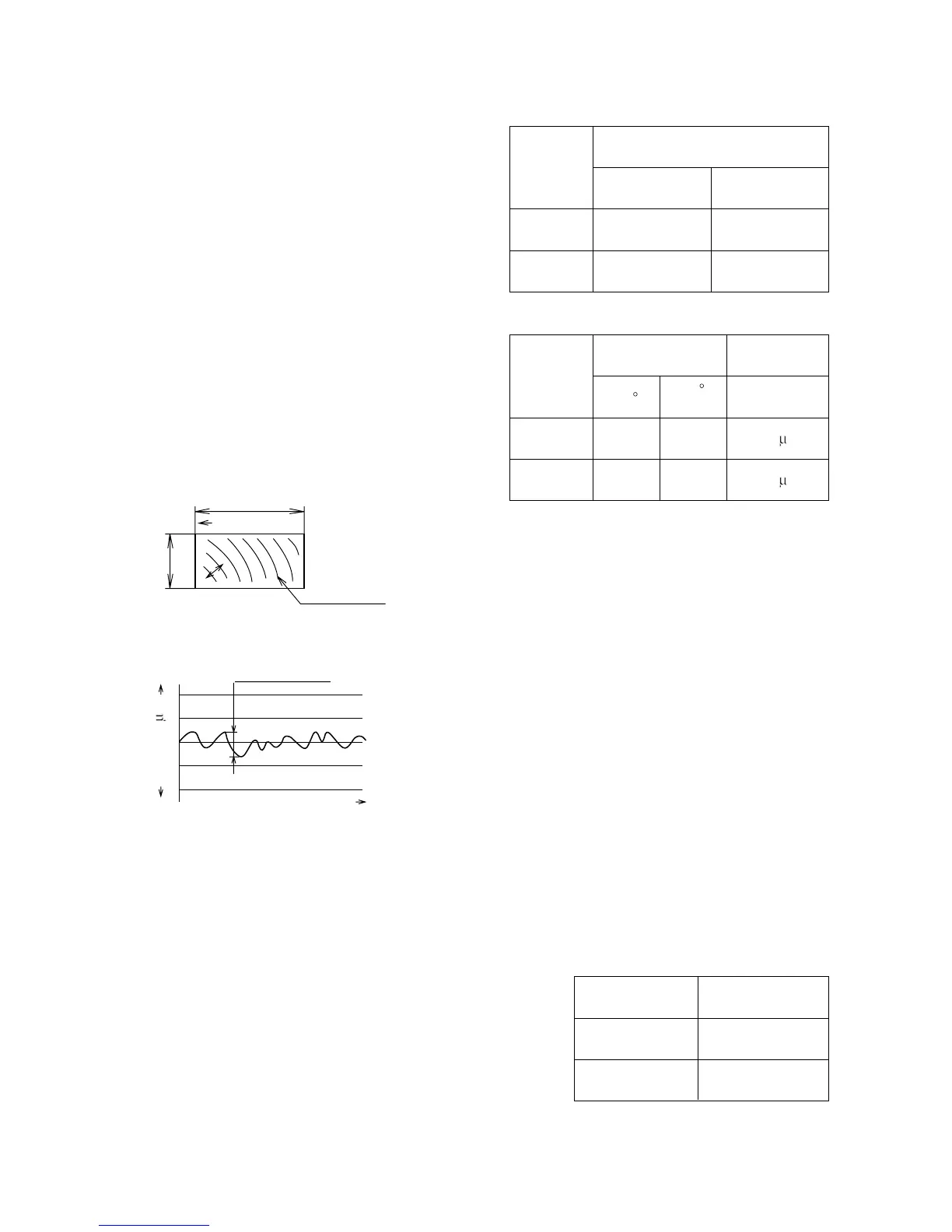

4-1. Selling Point Descriptions
(1) Wide table width
An extension wing is standard on this machine to give
the table a width of 864 mm (34"). This provides a
wide ripping width of up to 360 mm (14-5/32") to the
right of the saw blade and up to 400 mm (15-3/4") to
the left of the saw blade when using the rip fence.
(2) High cutting capacity with 255 mm (10") TCT saw
A 255 mm (10") TCT saw blade is standard on this
machine. It has a cutting capacity higher than that of
maker C's model. When cutting wood, the roughness
and burr condition on the cut surface are also superior
to those produced by maker C's model.
Cutting material: Douglas fir
Percentage of water content: 13 to 16 %
Right-angle cutting in 17 seconds.
Using the roughness meter, the roughness
(irregularities in the surface shown in Fig. 2) was
measured by moving the probe in the direction of the
arrow as shown in Fig. 1.
(3) Good work efficiency with brake (115 V)
When the switch is turned off after a cutting operation, the electric brake will stop the saw blade (about 3 --- 5
seconds). Efficient operation is assured when removing the cut material.
(4) Equipped with a high-power 2.6 HP motor
The high-power motor facilitates fast cutting operations.
Hitachi C 10RA 60 x 150 mm material 15 seconds
C 55 x 150 mm material 20 seconds
Fig. 1
Fig. 2
Table 1
Maker/
Model name
HITACHI
C 10RA
C
Max. ripping width
To right of saw
blade
360 mm
(14-5/32")
300 mm
(11-13/16")
To left of saw
blade
400 mm
(15-3/4")
300 mm
(11-13/16")
Table 2
Maker/
Model name
HITACHI
C 10RA
C
Cutting depth of
saw blade
90
*0 --- 76
(0 --- 3")
0 --- 64
(0 --- 2-1/2")
Max. Surface
roughness
44 m
70 m
*11 --- 63
(7/16" ---
2-1/2")
*0 --- 64
(7/16" ---
1-5/8")
45
Bevel
Cut section
* Specifications for other than the U.S.A. models
Maker/Model name
HITACHI C 10RA
C
Max. output
1,940 W (2.6 HP)
1,500 W (2.0 HP)
150 mm (5-29/32")
* 60 mm (2-3/8")
Cutting direction
Saw marks
* Maker C's model
55 mm (2-5/32")
Surface roughness (max.)
Direction of probe
Surface
roughness (
m)
Table 3

Hitachi C 10RA Specifications
