Introduction
Part names

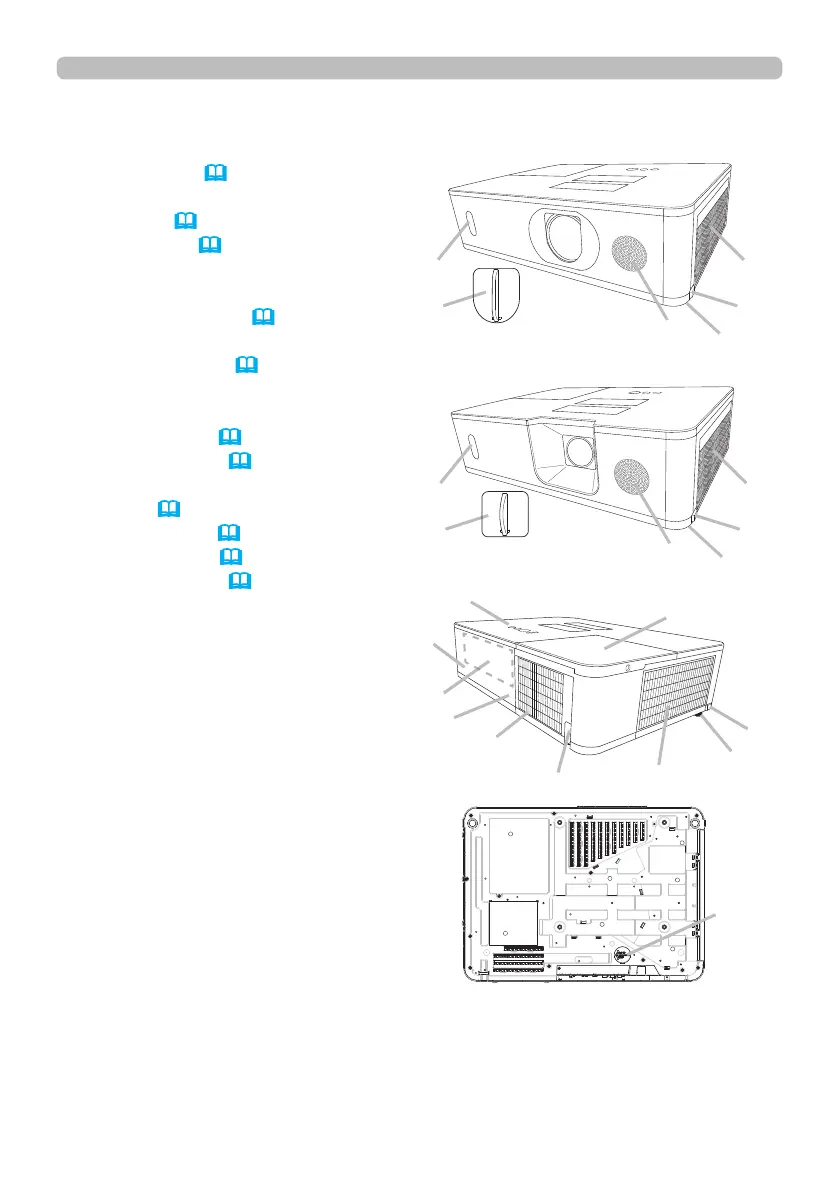

Projector
(1) Lamp cover (
103)
The lamp unit is inside.
(2) Speaker (32, 75)
(3) Filter cover (105)
The air  lter and intake vent
are inside.
(4) Elevator feet (x2) (35)
(5) Elevator buttons (x2)
(6) Remote sensor (29, 89)
(7) Lens cover
(8) Intake vents
(9) Control panel (5)
(10) AC (AC inlet) (26)
(11) Exhaust vents
(12) Ports (6)
(13) Security bar (25)
(14) Security slot (25)
(15) Battery cover (107)
(continued on next page)
(3)
(2)
(4)
(7)
(4)
(8)
(11)
(10)
(14)
(13)
(1)
(15)
(5)
(6)
(12)
(9)
(5)
(3)
(2)
(4)
(7)
(5)
(6)
CP-WU5500/CP-WU5505
CP-WX5500/CP-WX5505
CP-X5550/CP-X5555
