Introduction

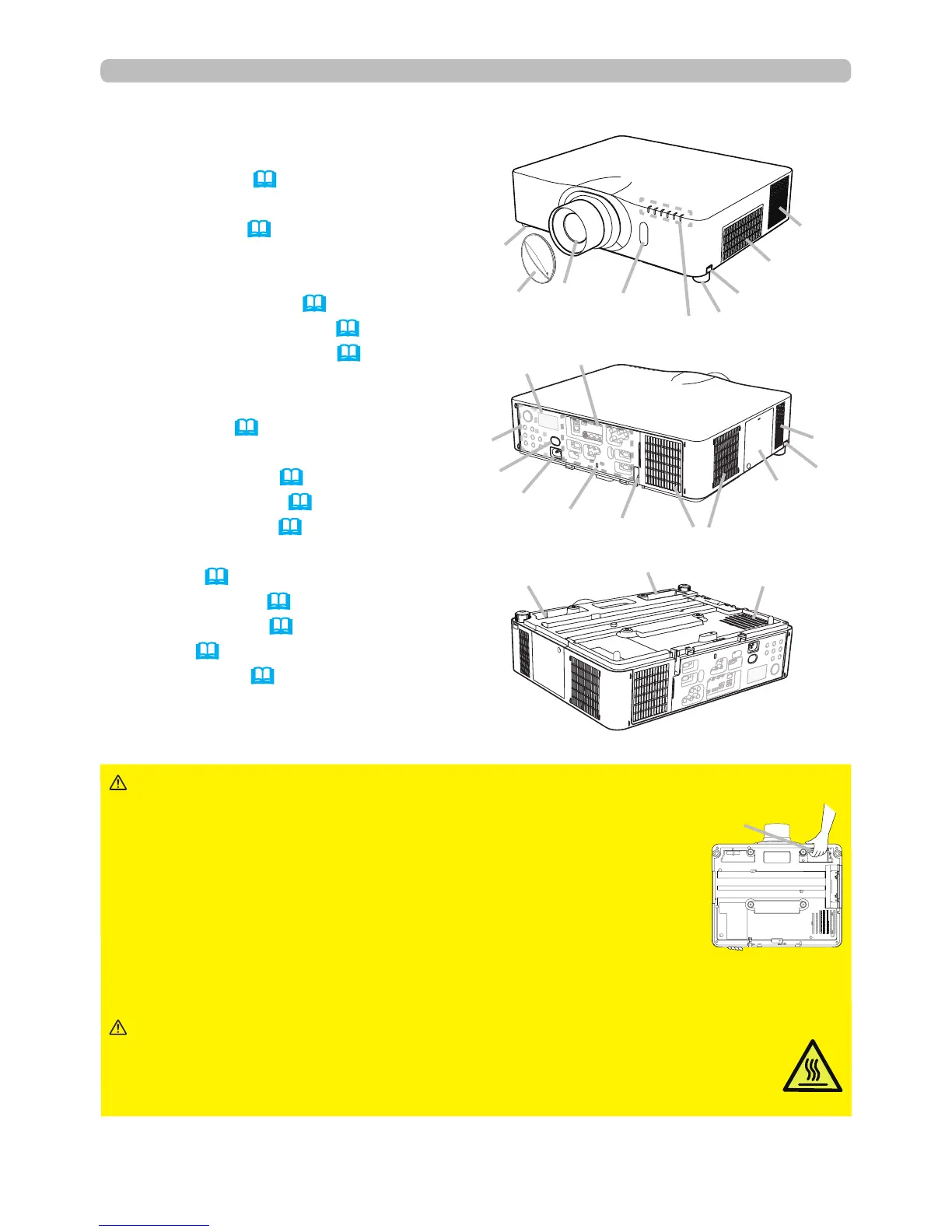

Part names
Projector
(1) Lamp cover (
112)
The lamp unit is inside.
(2) Filter cover (114)
The air  lter and intake vent
are inside.
(3) Elevator feet (x2) (28)
(4) Elevator buttons (x2) (28)
(5) Remote sensors (x2) (18, 74)
(6) Lens
(7) Lens cover
(8) Indicators (5)
(9) Intake vents
(10) Control panel (5)
(11) Status Monitor (20)
(12) AC (AC inlet) (16)
(13) Exhaust vents
(14) Ports (5)
(15) Security bar (15)
(16) Security slot (15)
(17) Grip (below)
(18) Safety bar (15)
►Do not open or remove any portion of the product, unless the
manuals direct it.
►Do not subject the projector to unstable conditions.
►Do not apply a shock or pressure to this product. Place
your hands on the grip on the bottom of the projector when
carrying the projector. Remove all the attachments including
the power cord and cables, from the projector when carrying
the projector.
►Do not look into the lens and the openings on the projector while the lamp is
on.
WARNING
►Do not touch around the lamp cover and the exhaust vents
during use or just after use, since it is too hot.
►Do not attach anything onto the lens except the lens cover of this
projector because it could damage the lens, such as melting the lens.
CAUTION
(continued on next page)
Grip
(9)
(2)
(4)
(3)
(8)
(6)
(5)
(3)
(10)
(13)
(9)
(9)
(12)
(16)
(15)
(1)
(18)
(17)
(5)
(7)
(14)
(4)
(11)

Hitachi CP-WX8265 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	0.94 - 18.41 m
Projection technology	3LCD
Supported aspect ratios	16:9, 16:10
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	WXGA (1280x800)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	56 kHz
Keystone correction, horizontal	-35 - 35 °
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	31.5 kHz
Throw ratio	1.5 - 3.0:1
Digital zoom	2 x
Focal length range	24 - 48 mm
Aperture range (F-F)	1.6 - 2.9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Lamp power	365 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in display	Yes
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	3
Ethernet LAN data rates	100 Mbit/s
Noise level	39 dB
Noise level (economic mode)	33 dB
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	396.2 mm
Width	497.8 mm
Height	134.6 mm
Weight	8800 g
