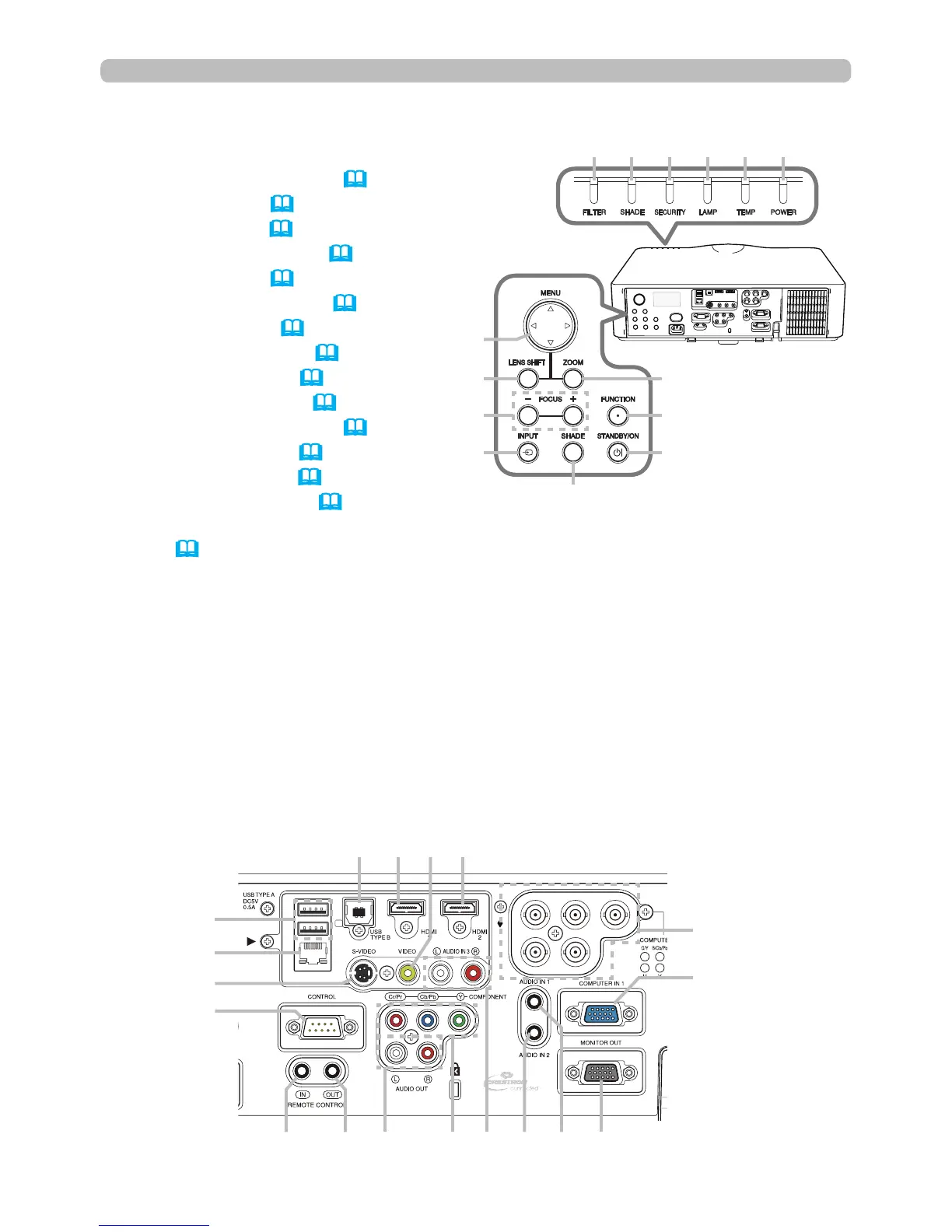

Control panel and Indicators
(1) STANDBY/ON button (
24)
(2) INPUT button (26, 41)
(3) MENU button (41)
(4) LENS SHIFT button (29)
(5) ZOOM button (29)
(6) FOCUS - / + buttons (29)
(7) SHADE button (36)
(8) FUNCTION button (22, 29)
(9) FILTER indicator (123)
(10) SHADE indicator (36)
(11) SECURITY indicator (97)
(12) LAMP indicator (120 ~ 122)
(13) TEMP indicator (120 ~ 122)
(14) POWER indicator (24, 120 ~ 122)
Ports (
10 ~ 14)
(1) COMPUTER IN1 port
(2) COMPUTER IN2 ports
(G/Y, B/Cb/Pb, R/Cr/Pr, H, V)
(3) LAN port
(4) USB TYPE A ports
(5) USB TYPE B port
(6) HDMI 1 port
(7) HDMI 2 port
(8) COMPONENT ports
(Y,Cb/Pb, Cr/Pr)
(9) S-VIDEO port
(10) VIDEO port
(11) AUDIO IN1 port
(12) AUDIO IN2 port
(13) AUDIO IN3 (L, R) ports
(14) AUDIO OUT (L, R) ports
(15) MONITOR OUT port
(16) REMOTE CONTROL IN port
(17) REMOTE CONTROL OUT port
(18) CONTROL port
Introduction
Part names (continued)
(continued on next page)
(5)
(8)
(1)
(3)
(4)
(6)
(2)
(9) (10) (11) (12) (13) (14)
(7)
(1)
(2)
(4)
(3)
(18)
(5) (6) (10) (7)
(9)
(16) (14) (13) (12) (11) (15)(8)(17)
