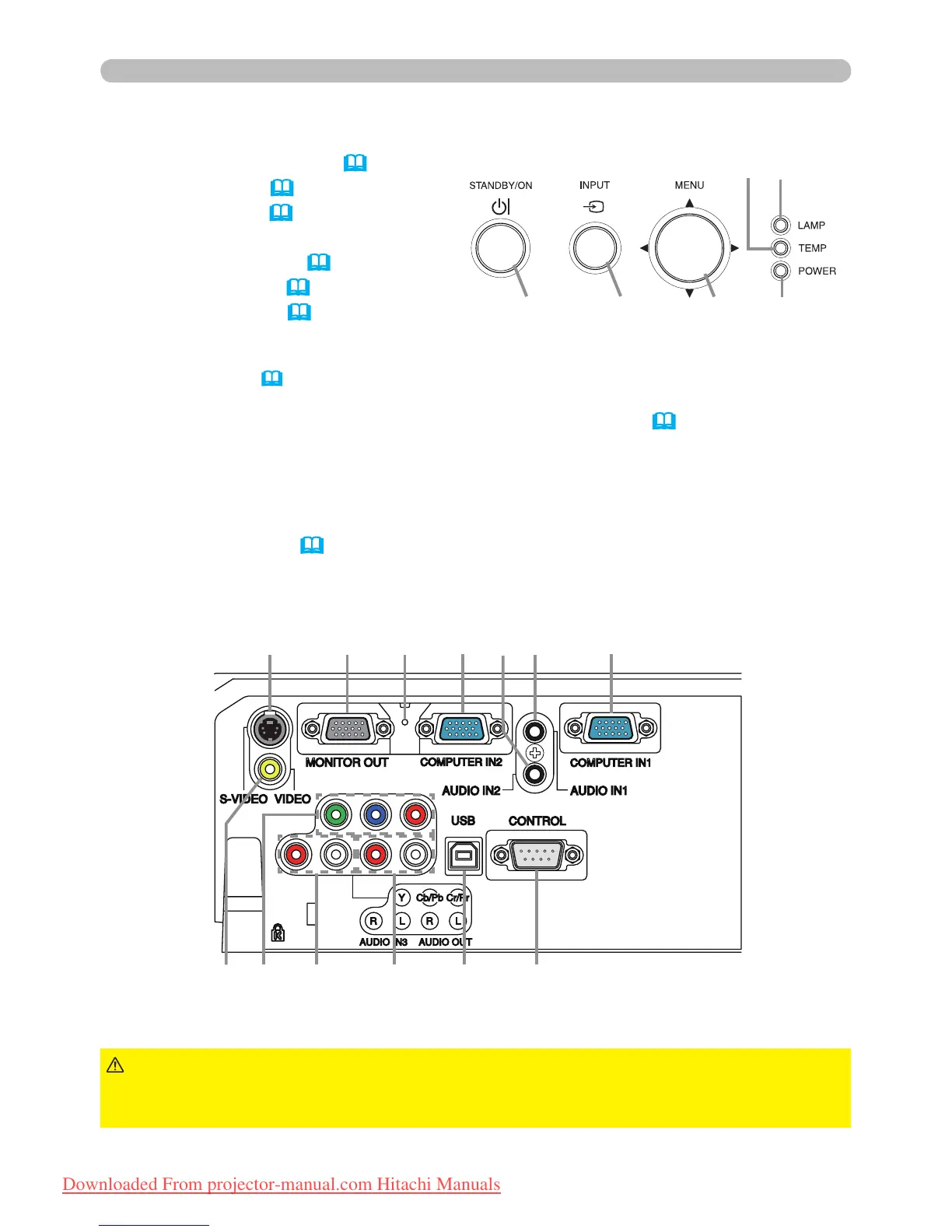

Part names
Control panel
(1) STANDBY/ON button (14)
(2) INPUT button (15, 22)
(3) MENU button (22)
It consists of four cursor buttons.
(4) POWER indicator (11, 14, 59)
(5) TEMP indicator (59)
(6) LAMP indicator (59)
Rear panel (9)
(1) AUDIO IN1 port
(2) AUDIO IN2 port
(3) COMPUTER IN1 port
(4) COMPUTER IN2 port
(5) MONITOR OUT port
(6) Shutdown switch (60)
(7) CONTROL port
►Use the shutdown switch only when the projector is not
turned off by normal procedure, since pushing this switch stops operation of the
projector without cooling it down.
CAUTION
(8) USB port (13)
(9) COMPONENT
(Y, Cb/Pb, Cr/Pr) ports
(10) VIDEO port
(11) S-VIDEO port
(12) AUDIO IN3 (R, L) ports
(13) AUDIO OUT (R, L) ports
(7)
(2)(4)
(9)(10) (13)
(11) (3)(5) (6) (1)
(8)(12)
(1) (3)(2)
(4)
(6)(5)
