Hitachi CP-X4020 User Manual

4

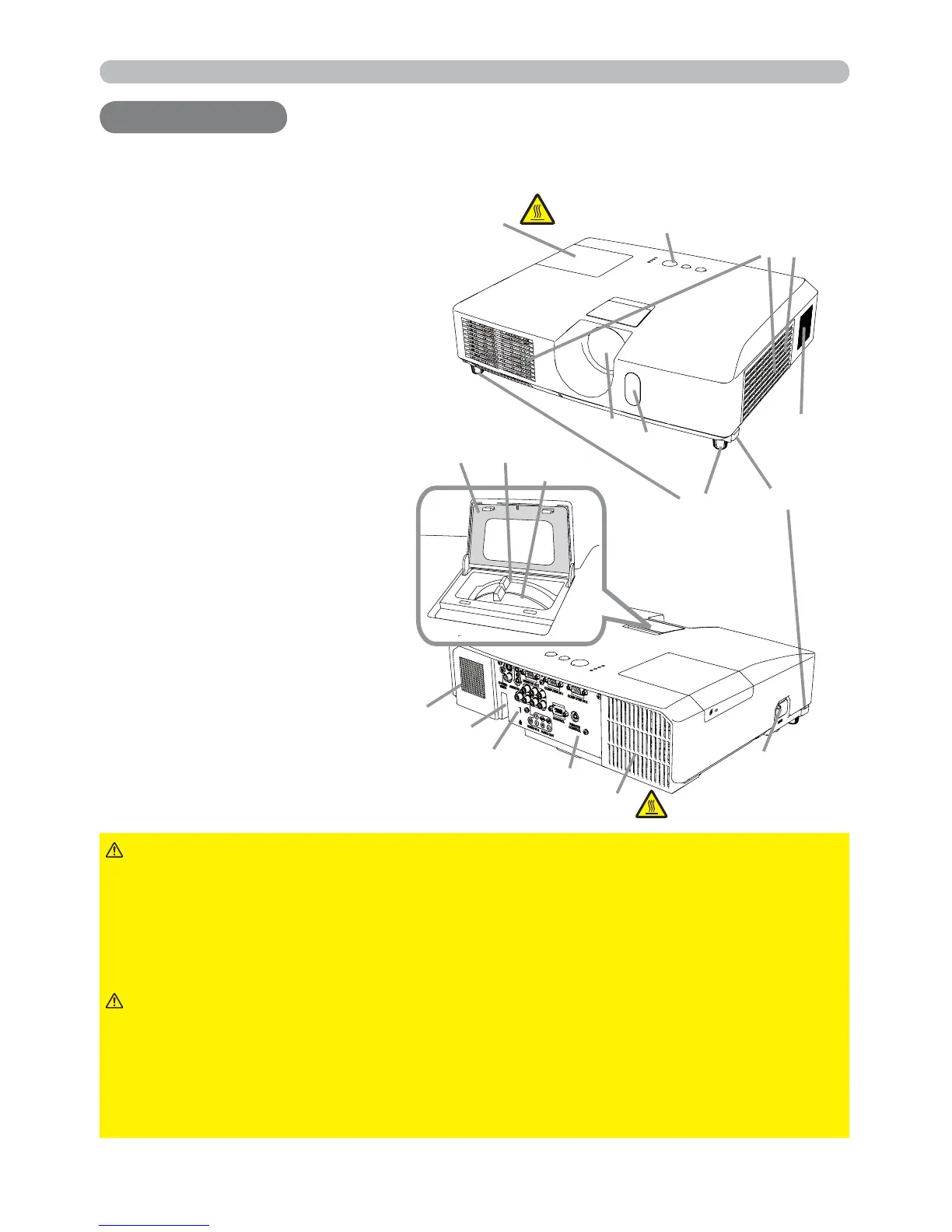

Part names
Part names
Part names
Projector
(1) Lamp cover (

53)
The lamp unit is inside.
(2) Zoom / focus ring cover (

18)
(3) Focus ring (

18)
(4) Zoom ring (

18)
(5) Control panel (

5)
(6) Elevator buttons (x 2) (

18)
(7) Elevator feet (x 2) (

18)
(8) Remote sensor (

12)
(9) Lens (

56)
(10) Intake vents
(11) Filter cover (

55)
The air fi lter and intake vent
are inside.
(12) Speaker (

36)
(13) Exhaust vent
(14) AC IN (AC inlet) (

11)
(15) Rear panel (

5)
(16) Security bar (

11)
(17) Security slot (

11)
ŹHOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
ŹDo not look into the lens or vents while the lamp is on, since the strong light is
not good for your eyes.
ŹDo not handle the elevator buttons without holding the projector, since the
projector may drop down.
WARNING
ŹMaintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air fi lter
periodically.
ŹDo not use the security bar and slot to prevent the projector from falling down,
since it is not designed for it.
CAUTION
(6)
(8)
(10)
(9)
(11)
(7)
(12)
F
OCUS
HOT!
HOT!
(1)
(3)
(4)
(5)
(16)
(14)
(17)
(13)
(15)
(2)
(12)

Hitachi CP-X4020 Specifications

General

Resolution	XGA (1024 x 768)
Contrast Ratio	2000:1
Technology	LCD
Display Technology	3LCD
Aspect Ratio	4:3
Projection Size	30" to 300"
Lamp Type	UHP
Brightness	4000 ANSI Lumens
Input Connectors	Composite Video, S-Video
Output Connectors	Audio
Noise Level	37 dB (Normal Mode), 29 dB (Eco Mode)
