7
Setting up
Install the projector according to the environment and manner the projector will be
used in.

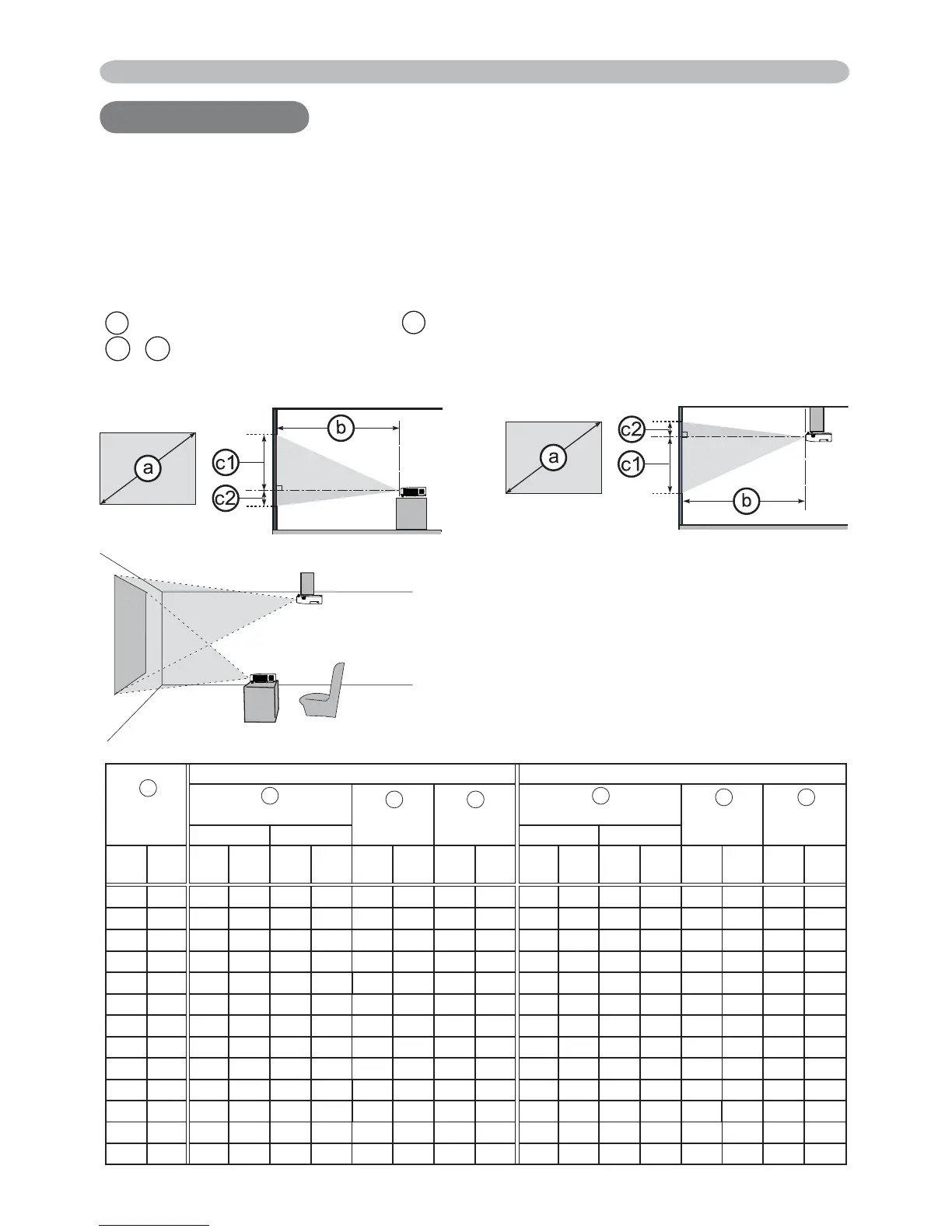

Arrangement
Refer to the illustrations and tables below to determine screen size and projection
distance.
The values shown in the table are calculated for a full size screen: 1024 x 768
a Screen size (diagonal) b Projection distance (±10%)
c1 , c2 Screen height (±10%)
On a horizontal surface
Suspended from the ceiling
• Keep a space of 30 cm or more between
the sides of the projector and other
objects such as walls.
• For the case of installation in a special
state such as ceiling mount, the specifi ed
mounting accessories (
64) and service
may be required. Before installing the
projector, consult your dealer about your
installation.
Setting up
Screen size
(diagonal)
4 : 3 screen 16 : 9 screen
Projection distance
Screen
height
Screen
height
Projection distance
Screen
height
Screen
height
min. max.
min. max.
type
(inch)
m m inch m inch cm inch cm inch m inch m inch cm inch cm inch
30 0.8 0.9 34 1.0 41 41 16 5 2 1.0 38 1.1 45 39 15 -1 0
40 1.0 1.2 46 1.4 55 55 22 6 2 1.3 51 1.5 60 51 20 -2 -1
50 1.3 1.5 58 1.8 69 69 27 8 3 1.6 64 1.9 76 64 25 -2 -1
60 1.5 1.8 70 2.1 83 82 32 9 4 1.9 77 2.3 91 77 30 -2 -1
70 1.8 2.1 82 2.5 97 96 38 11 4 2.3 89 2.7 106 90 35 -3 -1
80 2.0 2.4 94 2.8 112 110 43 12 5 2.6 102 3.1 122 103 41 -3 -1
90 2.3 2.7 106 3.2 126 123 49 14 5 2.9 115 3.5 137 116 46 -4 -1
100 2.5 3.0 118 3.6 140 137 54 15 6 3.3 128 3.9 153 129 51 -4 -2
120 3.0 3.6 142 4.3 168 165 65 18 7 3.9 154 4.7 183 154 61 -5 -2
150 3.8 4.5 177 5.3 211 206 81 23 9 4.9 193 5.8 229 193 76 -6 -2
200 5.1 6.0 237 7.1 281 274 108 30 12 6.6 258 7.8 306 257 101 -8 -3
250 6.4 7.5 297 8.9 352 343 135 38 15 8.2 323 9.7 383 322 127 -10 -4
300 7.6 9.0 356 10.7 422 411 162 46 18 9.9 388 11.7 460 386 152 -12 -5
b
a
b
c1
c1 c2
c2
