Setting up

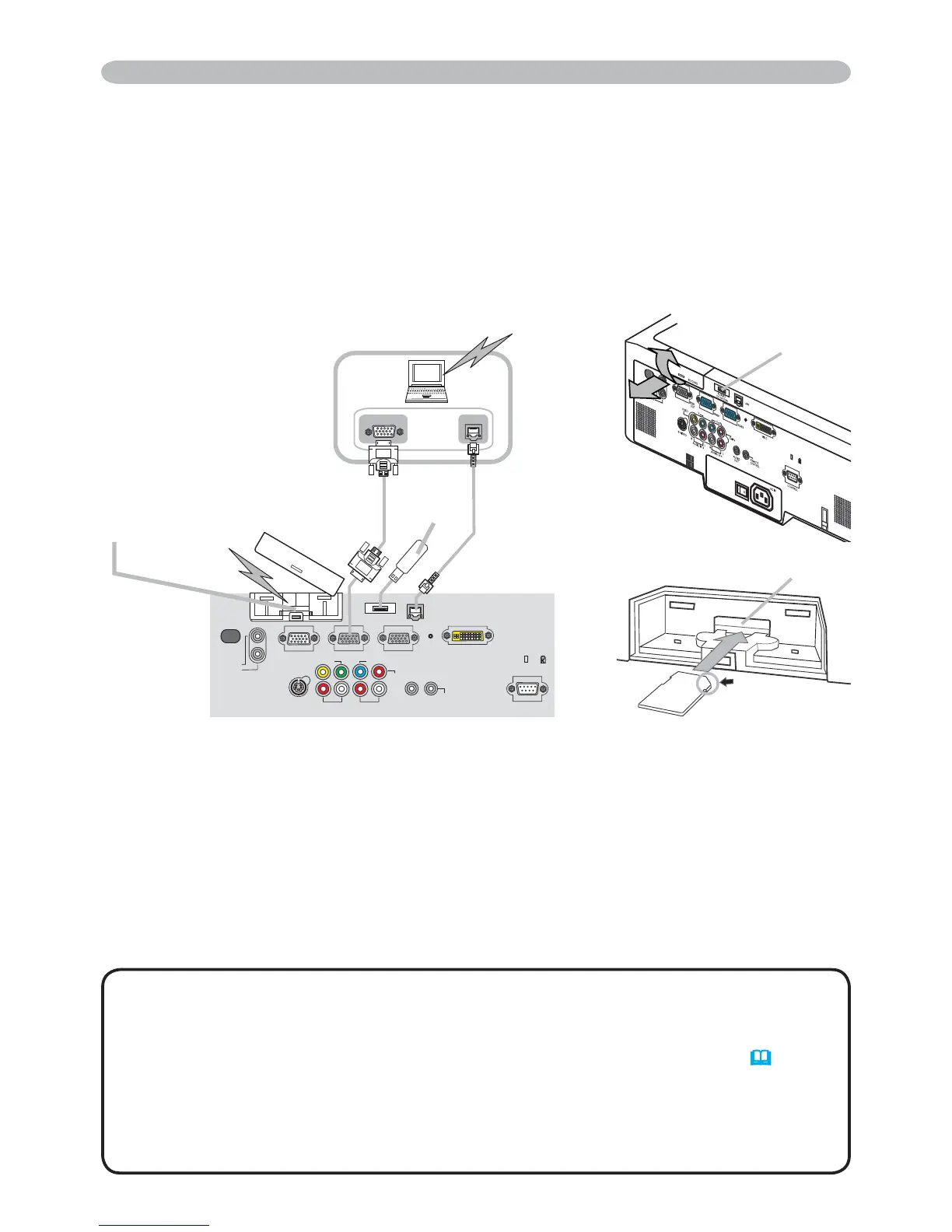

Inserting an SD card and USB memory
When using the projector with a wireless LAN please insert the included wireless
network card. When using a commercial SD memory card in order to view images
insert the SD memory card in the same manner. And when using a commercial
USB memory in order to view images insert the USB memory to the AUX I/O port.
See the “User's Manual - Network Function” for information on using either type of
card.
1.
Make sure the projector’s power switch is OFF.
2.
Remove the SD card slot cover. Pull the cover forward, pushing slightly its
edge up, to remove it from the projector.
3.
Insert the SD card. Slowly insert the SD card completely into the SD card
slot. Make sure the angled corner of the SD card is facing the right side (AUX
I/O port side) of the projector while inserting.
4.
Replace the SD card slot cover. Replace the cover by reversing the procedure
used when removing the cover.
NOTE • When using the projector with a wired LAN, please remove the
wireless network card.
• Before removing the SD card or USB memory, be sure to perform the
REMOVE procedure using the SERVICE menu under the MIU menu
(
58)
.
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide
a separation distance of at least 20 cm from all persons and must not be co-
llocated or operating in conjunction with any other antenna or transmitter.
AUX I/O port
SD card slot
Angled corner
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
REMOTE
CONTROL
S-VIDEO
AUDIO
OUT
RL RL
AUDIO IN 3 AUDIO IN 4
RGB
OUT
RGB1 RGB2 M1-D
CB/PB
RGB OUT
Y
C
R/PR
LAN
LAN
AUX I/O
DC 5V 0.5A
S
D
C
A
R
D
USB
memory
Insert the Wireless
network card
Wireless
communication
Wireless
communication
To Next Page
