Hitachi DV-PF5EUK - CONNECTING THE DVD;VCR; Connecting to a TV (Aerial); Connecting External Devices

–
12
–
EN

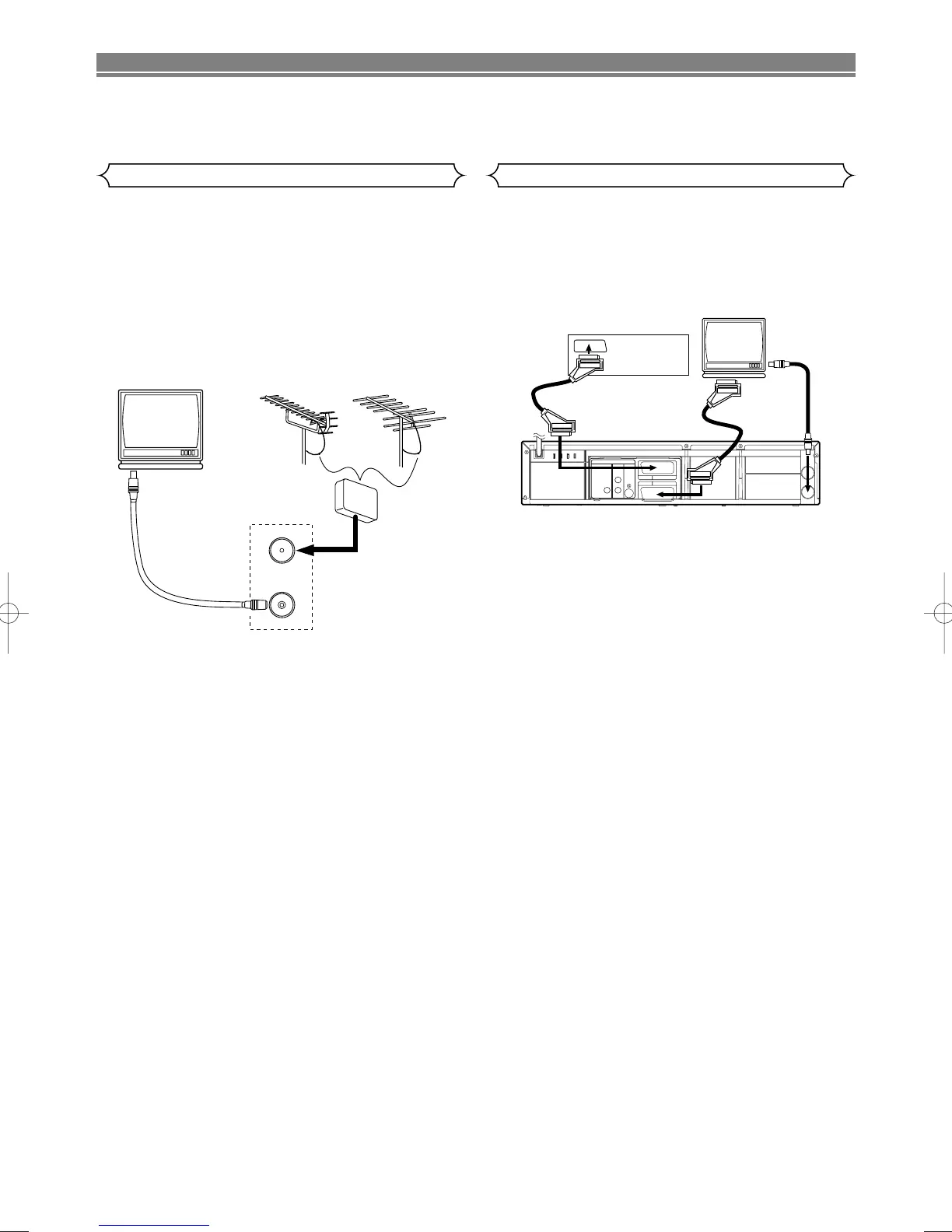

The following show examples of connections commonly used to connect the DVD/VCR to TV and other components.
NOTES
• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the DVD/VCR.
1. Disconnect the TV’s power cord from the AC outlet.
2. Disconnect the VHF/UHF TV aerial cable from the TV.
3. Connect the VHF/UHF TV aerial cable to the DVD/VCR.
4. Connect the DVD/VCR to the TV using the aerial cable.
5. Plug the Power cords of the DVD/VCR and TV into the AC
outlets.
RF OUT
AERIAL
to AERIAL
to RF OUT
(Back of the unit)
to aerial socket
(TV)
VHF/UHF
MIXER
UHF
VHF
COAXIAL
DIGITAL
AUDIO OUT
S
- VIDEO
OUT
DVD
DVD/V CR AV1
(
TV
)
AV2
(
DECODER
)
VCR
ANALOG
AUDIO OUT
L
R
AERIAL
RF OUT
to 21-Pin
(TV)
to RF OUT
to aerial
socket
Scart Jack
AV1 (TV)
to 21-Pin Scart Jack
Decoder (Not supplied)
EURO SCART (AV) SOCKETS
Your DVD/VCR is provided with two Scart sockets which
you may connect to other external devices with Scart sock-
ets. We recommend this connection to ensure a better audio
and picture quality.
NICAM stereo sound is only achieved when using a SCART
cable.
Euro A/V (scart) cables are obtainable at your dealer.
AV1 (TV) CONNECTION TO TV
If your TV has Scart sockets, you may connect your
DVD/VCR’s AV1 (TV) scart socket to the Scart socket on the
back of your TV. Please see the instruction manual for your
TV.
AV2 (DECODER) CONNECTION FOR OTHER EXTERNAL
DEVICES
The second Scart socket AV2 (DECODER) is designated for
other external devices, e.g. decoder, another VCR, video
camera and so on.
NOTE:
• If you want to connect a TV with Scart socket to your
DVD/VCR, the TV must be connected to the DVD/VCR
through AV1 (TV). A connection to AV2 (DECODER) will
not function correctly.
EXTERNAL INPUT MODE
To receive the signal from an external input (decoder, video
camera, another VCR etc.), connect to the AV2 (DECODER)
socket, and press PROG (o/p) or enter “002” with the
number buttons to show “AV2” on the TV screen. (“L2” will
appear on the DVD/VCR display panel.)
If you use the AV1 (TV) socket, press PROG (o/p) or enter
“001” with the number buttons to appear “AV1” on the TV
screen. (“L1” will appear on the DVD/VCR display panel.)
If you use the front AUDIO/VIDEO In Jacks, press PROG
(o/p) or enter “003” with number button to show “AV3” on the
TV screen. (“L3” will appear on the DVD/VCR display panel.)
CONNECTIONS
DVD/VCR to TV Connection Other Connections
