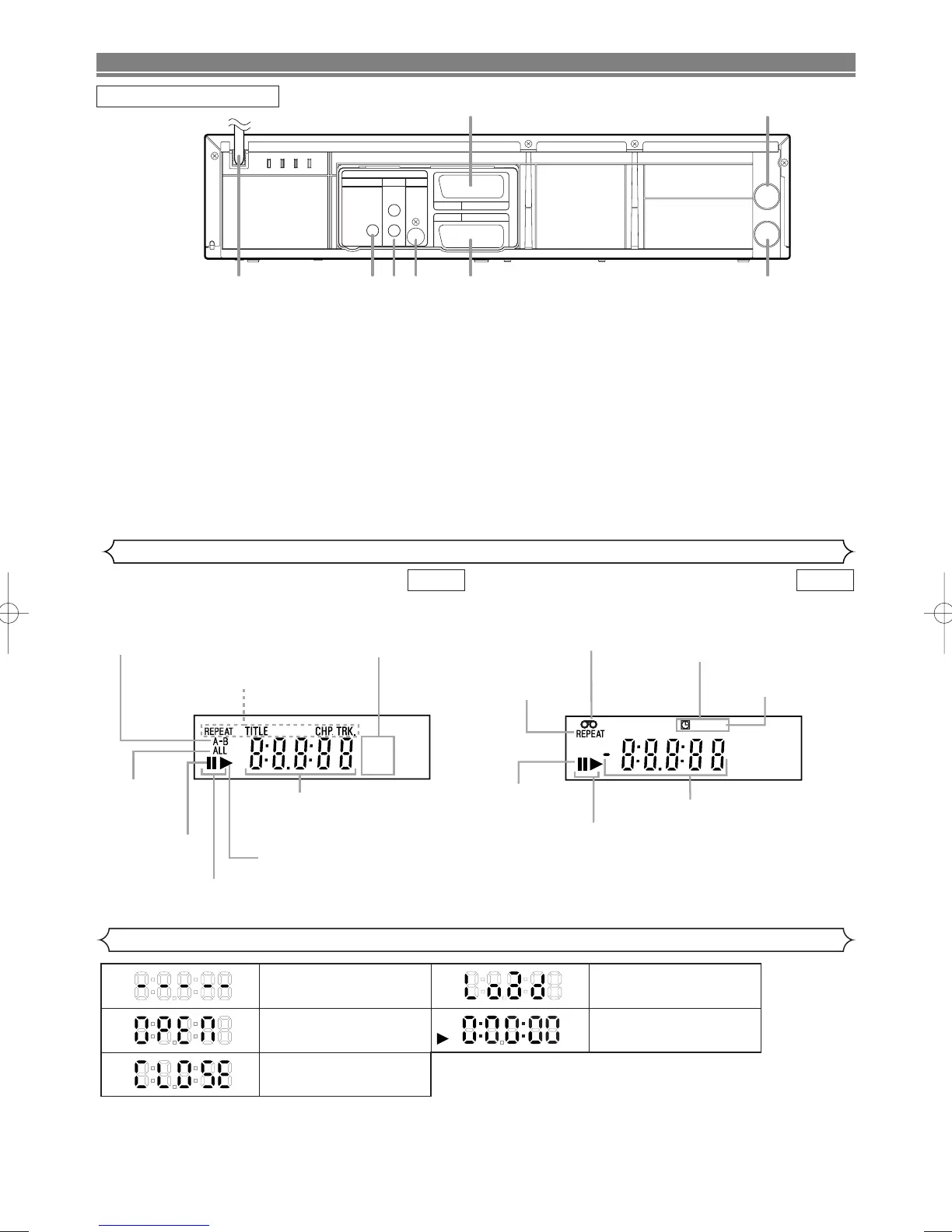

Hitachi DV-PF5EUK - UNIT LAYOUT AND DISPLAYS; Rear Panel Connections; Display Indicators and Messages

Displays During Operation
Tray open
Tray closed
When a disc is being
played back
DVD
Loading the Disc
No disc inserted or cannot
read
–
8
–
EN
1. MAIN (AC Power Cord)
Connect to a standard AC plug.
2. COAXIAL DIGITAL AUDIO OUT Jack [DVD only]
Connect to a compatible Dolby Digital receiver. Use to
connect to a Dolby Digital decoder or MPEG decoder.
3. AUDIO OUT Jacks (ANALOG Left/Right)
[DVD only]
Connect to the Audio input jacks of A/V-compatible TV
or wide screen TV, Stereo system.
4. S-VIDEO OUT Jack (DVD Only)
Use the S-Video cable to connect this jack to the S-
Video jack on your A/V-compatible TV or wide screen
TV for a higher quality picture.
5. EURO AV2 (DECODER) Jack [VCR only]
Use the Euro A/V (scart) cable to connect this jack to
the 21 pin scart jack on your decoder.
6. EURO AV1 (TV) Jack
Use the Euro A/V (scart) cable to connect this jack to
the 21 pin scart jack on your A/V-compatible TV or wide
screen TV for a best quality picture.
7. AERIAL Jack
Connect your antenna, Cable Box, or Direct Broadcast
System.
8. RF OUT Jack
Use the supplied aerial cable to connect this jack to the
ANTENNA IN Jack on your TV.
Caution: Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause perma-
nent damage to the DVD/VCR.
COAXIAL
DIGITAL
AUDIO OUT
S
- VIDEO
OUT
DVD
DVD/VCR AV1
(
TV
)
AV2
(
DECODER
)
VCR
ANALOG
AUDIO OUT
L
R
AERIAL
RF OUT
5
1 2 3 4 6
7
8
REAR PANEL
Display
FUNCTIONAL OVERVIEW
Lights up when the inserted
disc is being played back.
Displays a type of the disc
which is inserted on the tray.
• DVD: DVD disc
• CD: Audio CD
Lights up when the
inserted disc comes
to a pause.
Lights up when the
A-B repeat function
is on.
Lights up when the
repeat function is on.
Lights up when playing back
in slow mode. (DVD)
Displays theelapsed time of the title
or track. The number of a new title,
chapter, or track is displayed when
a chapter or track is switched.
Lights up when
the ALL repeat
function is on.
DVD
CD
Works as a tape counter
(hour,minute,second).
Also displays a channel number,
tape speed, remaining time for OTR or
current time.
REC
Lights up when a
tape is inserted.
Lights up during a recording.
Flashes when a recording
is paused.
Lights up when
the timer recording or an
OTR recording has been set.
Lights up when the inserted
cassette is being played
back.
Lights up when
the playback is
in still or slow mode.
Lights up during
playback when
the repeat function
is on.
DVD VCR
