Hitachi NEXT Series Service Manual

60
Air-Cooled
5

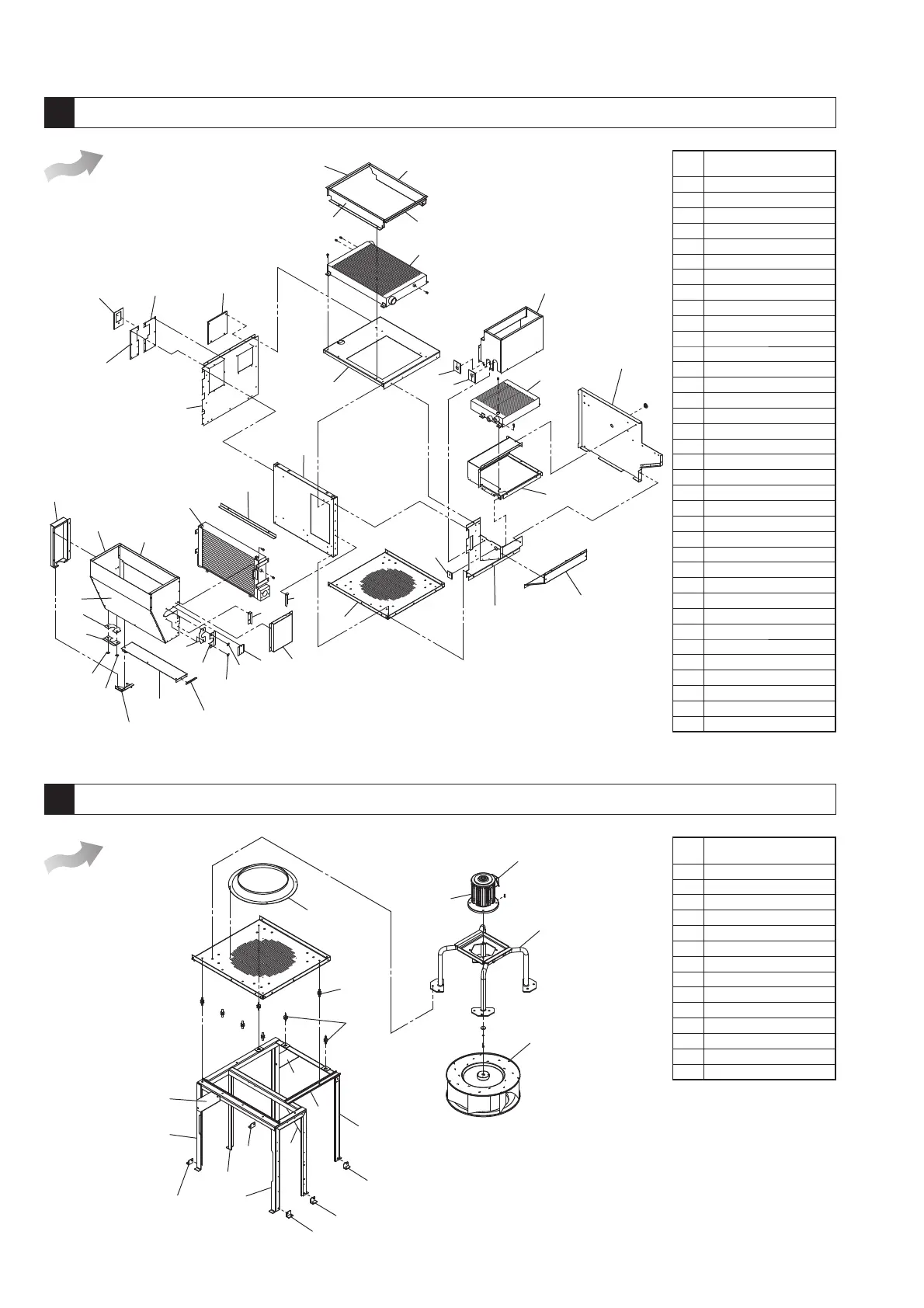

Coolers & Ventilating Fan (1)
Air-Cooled
5
Coolers & Ventilating Fan (2)
584
581
691
584
649
692
694
693
685
582
653
584
650
651
628
583
652
581
582
584
586
E51
585
H72
645
697696
696
698
646
642
E52
643
F61
648
H71
695
644
H71
647
608
623
639
636
632
630
634
631
630
629
629
633
635
636
F47
678
681
686
679
636
630
※
J18
Ref.
No.
Description
581 Partition (1)
582 Partition (2)
583 Partition (3)
584 Plate Washer
585 Maintenance Cover (3)
586 Maintenance Cover (4)
608 Aftercooler
623 Intercooler
628 Duct Panel (1)
639 Oil cooler
642 Duct Panel (2)
643 Duct Panel (3)
644 Duct Panel (4)
645 Duct Panel (5)
646 Duct Panel (6)
647 Duct Panel (7)
648 Duct Panel (8)
649 Duct Panel (9)
650 Duct Panel (10)
651 Duct Panel (11)
652 Duct Panel (12)
653 Cover (1), Intercooler
685 Cover (2), Intercooler
691 Cover (3), Intercooler
692
Duct Panel (1), Intercooler
693 Duct Panel (2), Intercooler
694 Duct Panel (3), Intercooler
695 Duct,Oil cooler
696
Duct Panel (1), Aftercooler
697 Duct Panel (2), Aftercooler
698 Duct Panel (3), Aftercooler
E51 Maintenance Cover (1)
E52 Maintenance Cover (2)
F61 Magnet Rubber (1)
H71 Magnet Rubber (2)
H72 Magnet Rubber (3)
Ref.
No.
Description
681
Fan Motor
686
Support, cooling fan
678
Bell Mouth
679
lmpeller
629
Fixing Bracket (1)
630
Fixing Bracket (2)
631
Support (1), base frame
632
Support (2), base frame
633
Support (3), base frame
634
Support (4), base frame
635
Support (5), base frame
636
Support (6), base frame
F47
Rubber Bush
J18
Fan Shaft Key
※ Only for 75 kW.
