Hitachi NEXT Series Service Manual

61
608
623
602
605
601
625
626
624
632
610
614
615
611
613
612
E76
627
E39
E39
678
679
631
633
681
686
940
671
629
628
F47
634
630
Water-Cooled
Water-Cooled
5

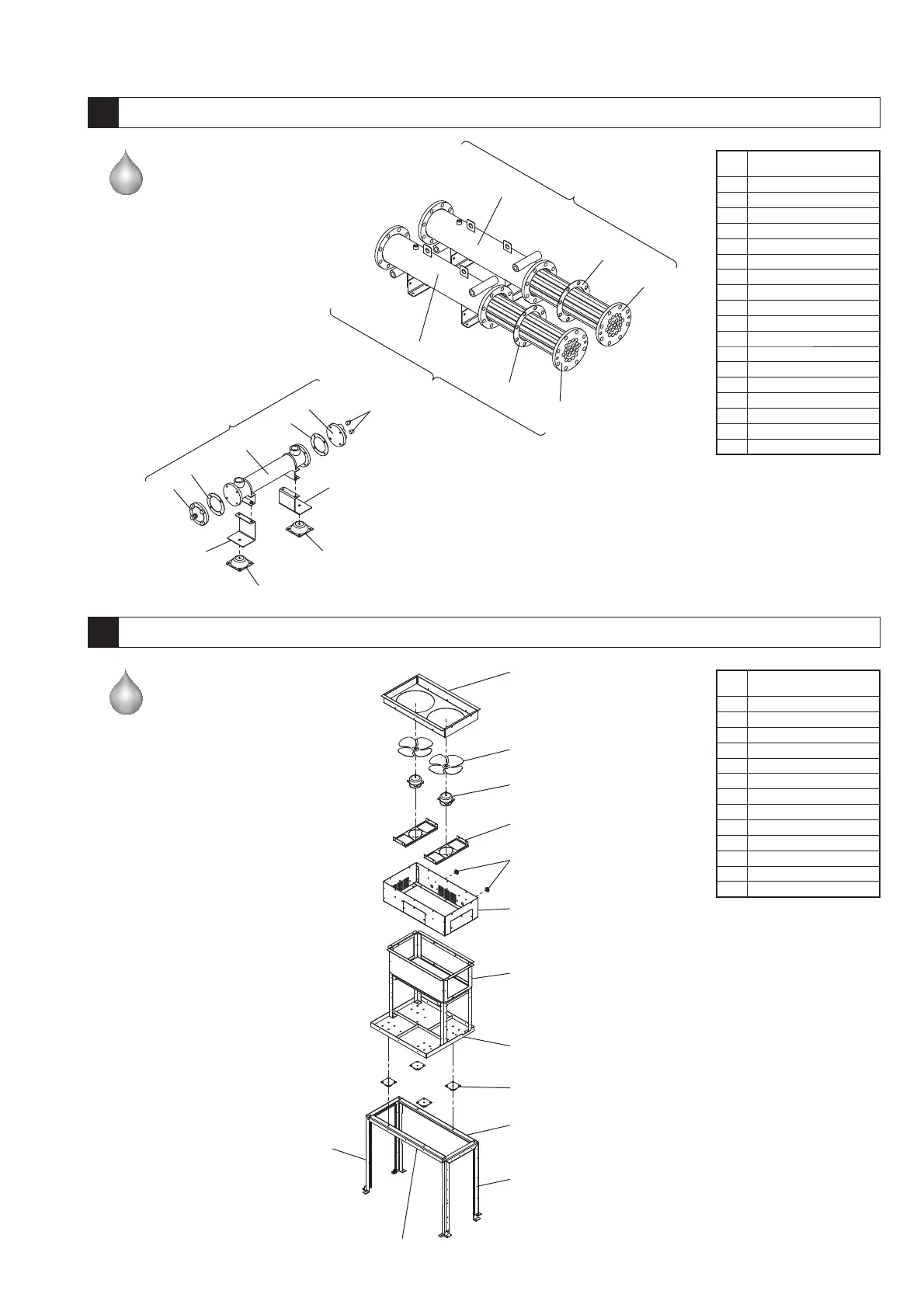

Coolers & Ventilating Fan (1)
5
Coolers & Ventilating Fan (2)
Ref.
No.
Description
601
Shell, aftercooler
602
Tube Nest, aftercooler
605
Gasket, aftercooler tube nest
608
Aftercooler Assembly
610
Oil cooler Assembly
611
Tube Nest, oil cooler
612
Cover, oil cooler water chamber
613
Gasket, oil cooler water chamber cover
614
Cover, oil cooler
615
Gasket, oil cooler cover
623
Intercooler Assembly
624
Shell, intercooler
625
Tube Nest, intercooler
626
Gasket, intercooler tube nest
627
Support (1), oil cooler
632
Plug
E39
Vibration Isolation Rubber
E76
Support (2), oil cooler
Ref.
No.
Description
628 Base, coolers
629 Duct, air exhaust
630 Support (1), base frame
631 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
671 Duct (1), fan motor
678 Support (2), fan motor
679 Fan
681 Fan Motor
686 Support (1), fan motor
940 Rubber Bush
F47
Vibration Isolation Rubber
