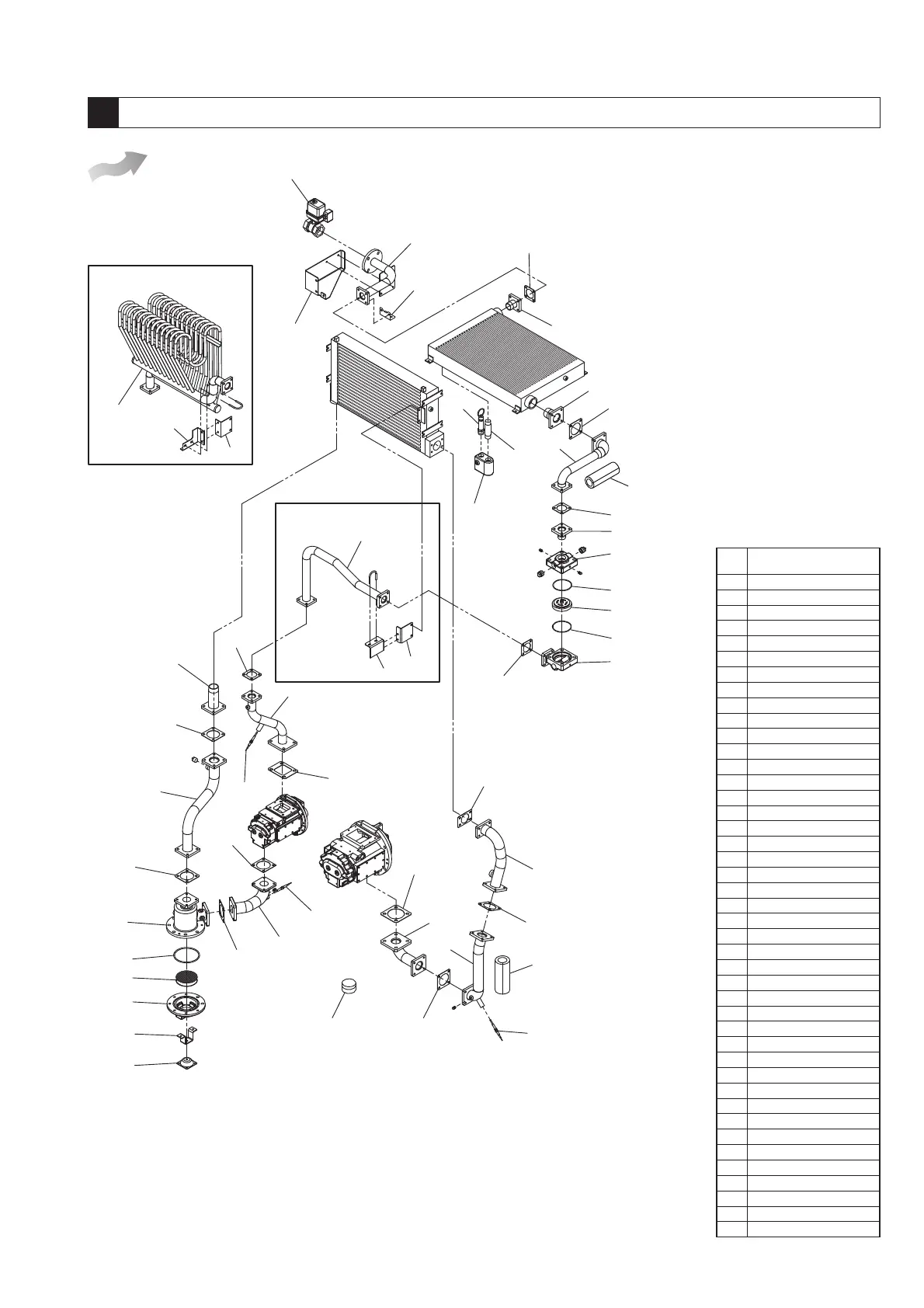

Air Pipe
100 psi (0.69 MPa) type
125 psi (0.86 MPa) type
670
029
033
033
F02
004
021
006
B35
B78
B99
035
024
033
023
D70
033
022
034
865
039
D72
033
D71
037
874
058
865
F03
875
040
041
865
868
870
871
869
865
057
033
F01
056
025
026
028
027
059
060
060
059
C07
870
061
E30
E29
Air-Cooled
Ref.
No.
Description
004
O-Ring, condensate water separator seat
006
Cover, Condensate Separator
021 Demister
022 Air Piping (1)
023 Air Piping (2)
024 Air Piping (3)
025 Air Piping (4)
026 Air Piping (5)
027 Air Piping (6)
028 Air Piping (7)
029 Air Piping (8)
033 Gasket(1)
034
Gasket, 1st-stage air end discharge flange
035 Gasket, cooler
037
Gasket, 2nd-stage suction
039
Gasket, 2nd-stage air end discharge flange
040
Piping, Aftercooler Condensate Water
041 Air Relief Valve seat
056 Air Piping (9)
057 Air Piping (10)
058
Support, discharge piping
059 Piping Support (1)
060 Piping Support (2)
061 Piping Support (3)
670 Hi-Precooler
865 Gasket (2)
868
Lower Cover, check valve
869
Upper Cover, check valve
870 Gasket
871 Check Valve
874 Discharge Piping
875 Air Relief Valve
B35 Fix Board, separator
B78
Vibration Isolation Rubber
C07 Motorized Isolation Valve
D70 Thermistor (TH4)
D71 Thermistor (TH2)
D72 Thermistor (TH3)
E29 Cover,piping (1)
E30 Cover,piping (2)
F01 Air Piping (11)
F02
Condensate Separator
F03
Air Piping (12)
Does not come with the product.
