68
869
875
038
010
029
870
001
033
036
044
039
033
002
022
037
023
B35
034
021
004
026
033
B78
033
871
003
D70
865
870
868
033
865
025
024
006
F02
D72
028
D71
027
C07
B99

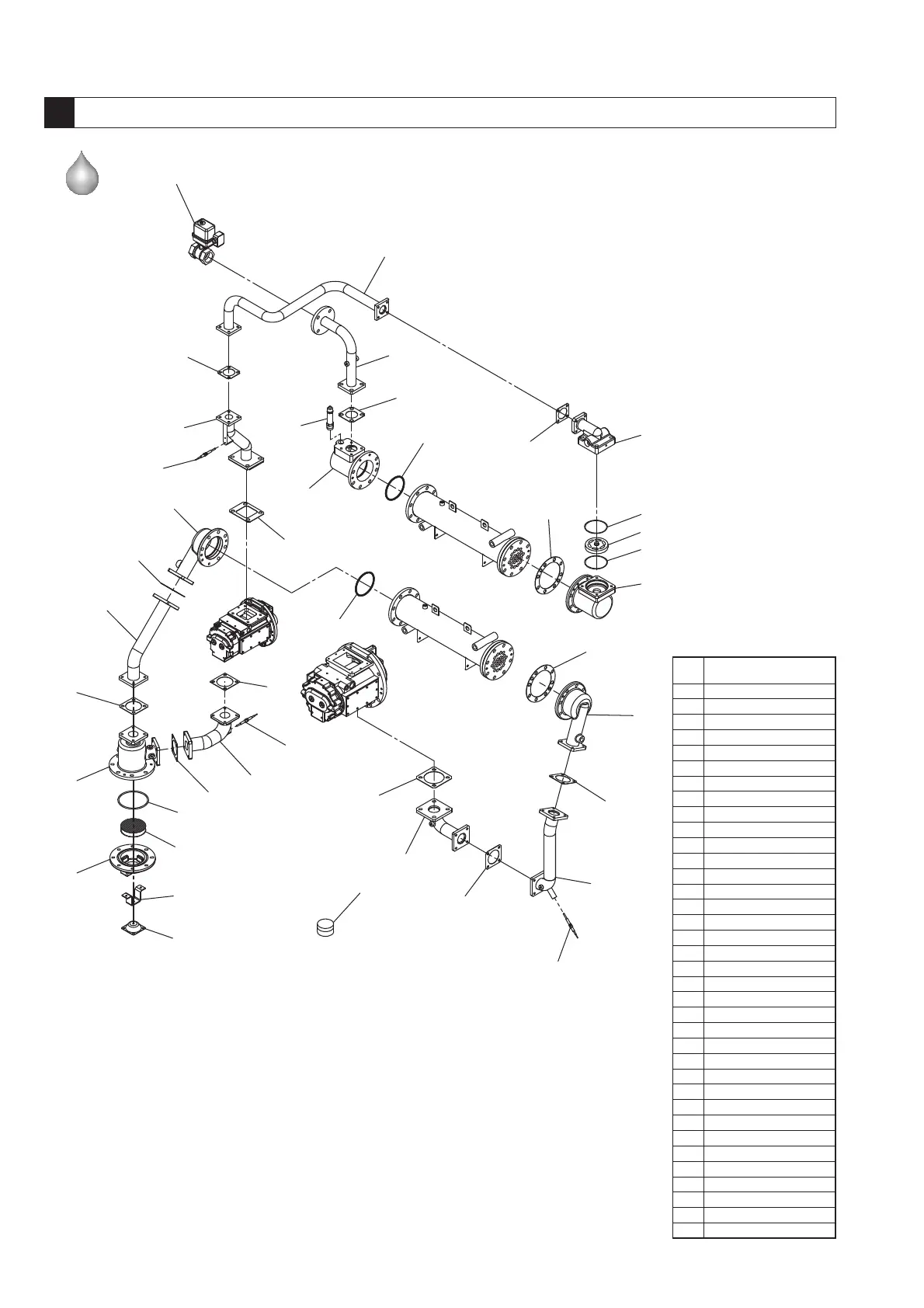

Water-Cooled
9
Air Pipe
Ref.
No.
Description
001 Aftercooler Header (2)
002 O-Ring, aftercooler
003 Gasket (3)
004
O-Ring, Condensate Separator
006
Cover, Condensate Separator
010 Gasket, cooler Header
021 Demister
022 Air Piping (1)
023 Air Piping (2)
024 Intercooler Header (2)
025 Air Piping (3)
026 Air Piping (4)
027 Air Piping (5)
028 Air Piping (6)
029 Air Piping (7)
033 Gasket (1)
034
Gasket, 1st-stage air end discharge flange
036 O-Ring (intercooler)
037
Gasket, 2nd-stage suction
038 Gasket, cooler header
039
Gasket, 2nd-stage air end discharge flange
044 Intercooler Header (1)
865 Gasket (2)
868 Cover, check valve
869 Aftercooler Header (1)
870 Gasket
871 Check Valve
875 Air Relief Valve
B35 Fix Board, separator
B78
Vibration Isolation Rubber
C07 Motorized Isolation Valve
D70 Thermistor (TH4)
D71 Thermistor (TH2)
D72 Thermistor (TH3)
F02 Condensate Separator
F05 Flange
Does not come with the product.
