Hitachi NEXT Series Service Manual

69
H73
H73
887
785
773
774
D34
890
H53
768
789
771
770
B06
786
H91
769
H91
047
007
H74
006
F69
F67
043
F48
F68
F48
876
B35
B
H75
A
F74
052
B36
006
007
047

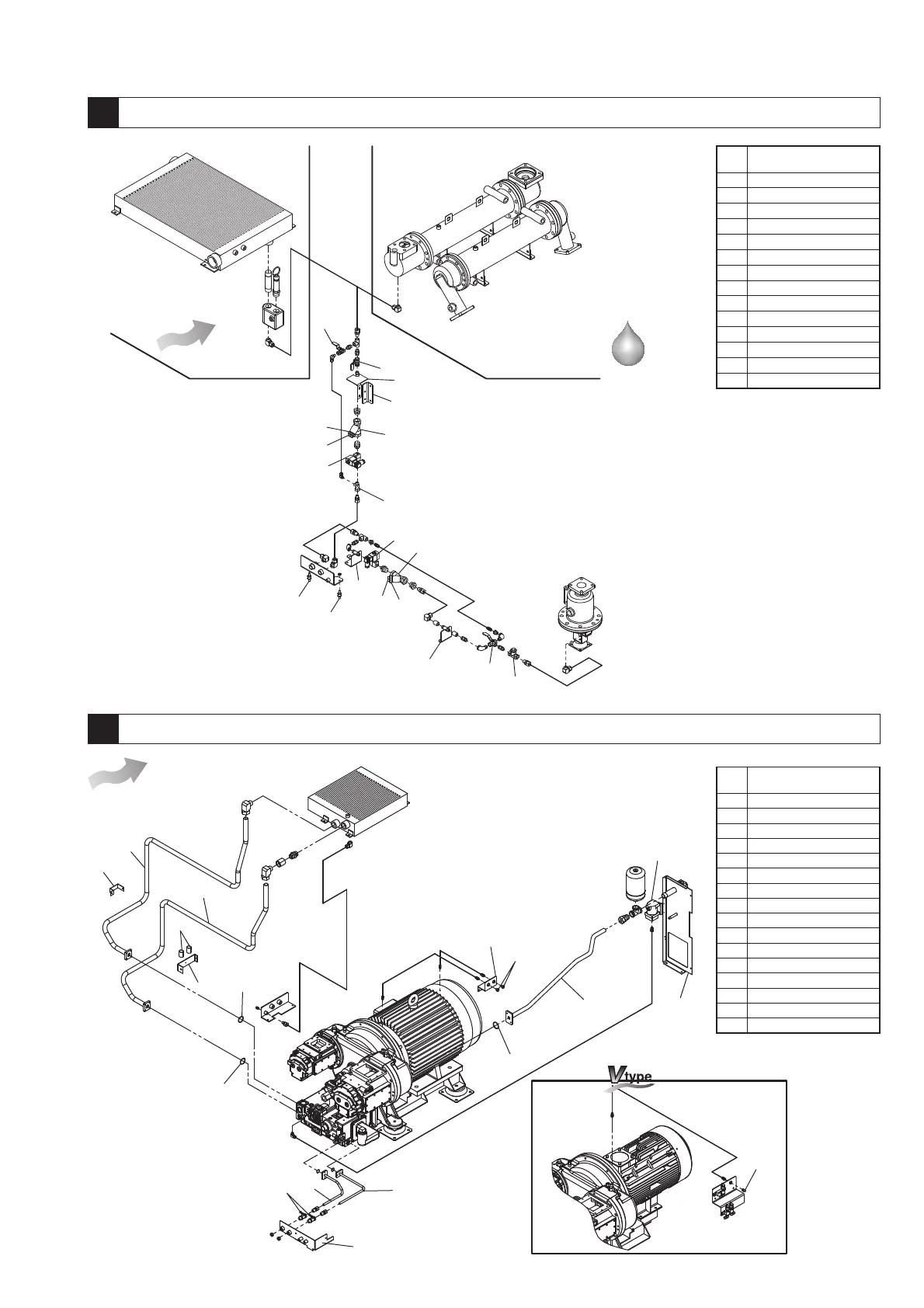

Air-Cooled
10
Drain Pipe
11
Oil Piping (1)
Air-Cooled
Water-Cooled
Ref.
No.
Description
006 Strainer Assy
007 Gasket, strainer
043 Check Valve
047 Strainer Element
052
Orifice, condensate piping (AC)
876 2 way Valve (1)
B35
Support (3), condensate piping
B36 Support (4), condensate piping
F48 Vibration Isolation Rubber
F67 3 way Switching Valve
F68
Support (1), condensate piping
F69 Support (2), condensate piping
H74 Condensate Solenoid Valve
H75 2 way Valve (2)
Ref.
No.
Description
768 Seat, oil piping
769 Support, greasing port
770 Oil Piping (1)
771 Oil Piping (2)
773 Piping (1), oil drain
774 Piping (2), oil drain
785 Support, oil piping
786
Fixing Plate (1), oil piping
789 Fixing Plate (2), oil piping
887 Oil Drain Valve
890
Gear Case Breathing Piping
B06 Rubber Seat
D34
O-Ring (gear case bearing)
H53 Float Cover
H73 O-Ring (cooler piping)
H91 Grease Nipple
