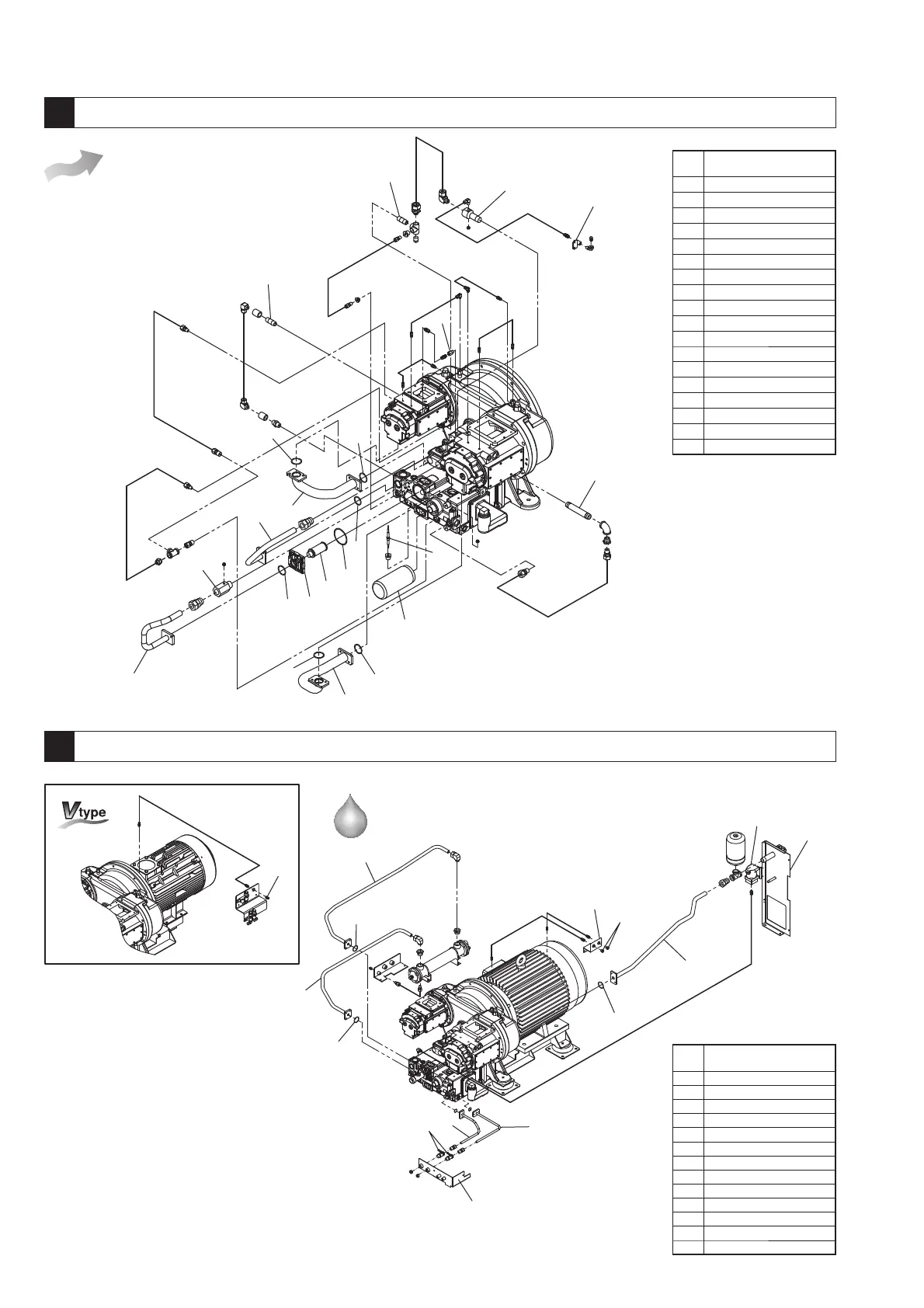

Hitachi NEXT Series Service Manual

70
771
H73
770
H73
887
785
773
774
D34
890
H53
768
H91
H91
769
Water-Cooled
11
Oil Piping (2)
11
Oil Piping (1)
Air-Cooled
D35
D35
H73
774
771
880
H73
D35
773
D35
882
※996
888
369
396
D80
770
772
775
775
776
828
E40
Ref.
No.
Description
369 O-Ring, strainer cover
396 Strainer Cover
770 Oil Piping (OP suction)
771
Oil Piping (OP discharge)
772 Oil Piping (1)
773 Oil Drain Piping (1)
774 Oil Drain Piping (2)
775 Oil Piping (2)
776 Oil Piping (3)
828 Orifice
880 Oil Strainer
882 Oil Filter Element
888 Oil Temperature Sensor
996 Filter Wrench A
D35 O-Ring
D80 Seat, oil piping
E40 Seat, oil air ventilation
H73 O-Ring
※
Does not come with the product.
Ref.
No.
Description
768 Seat, oil piping
769 Support, greasing port
770 Oil Piping (1)
771 Oil Piping (2)
773 Piping (1), oil drain
774 Piping (2), oil drain
785 Support, oil piping
887 Oil Drain Valve
890
Gear Case Breathing Piping
D34 O-Ring (gear case bearing)
H53 Float Cover
H73 O-Ring (cooler piping)
H91 Grease Nipple
