Hitachi NEXT Series Service Manual

71
D35
D35
H73
774
771
770
880
H73
D80
D35
773
D35
882
※996
888
396
369
828
009
096
011
018
H58
012
017
008
D33
016
009
C06
Water-Cooled
Water-Cooled
11

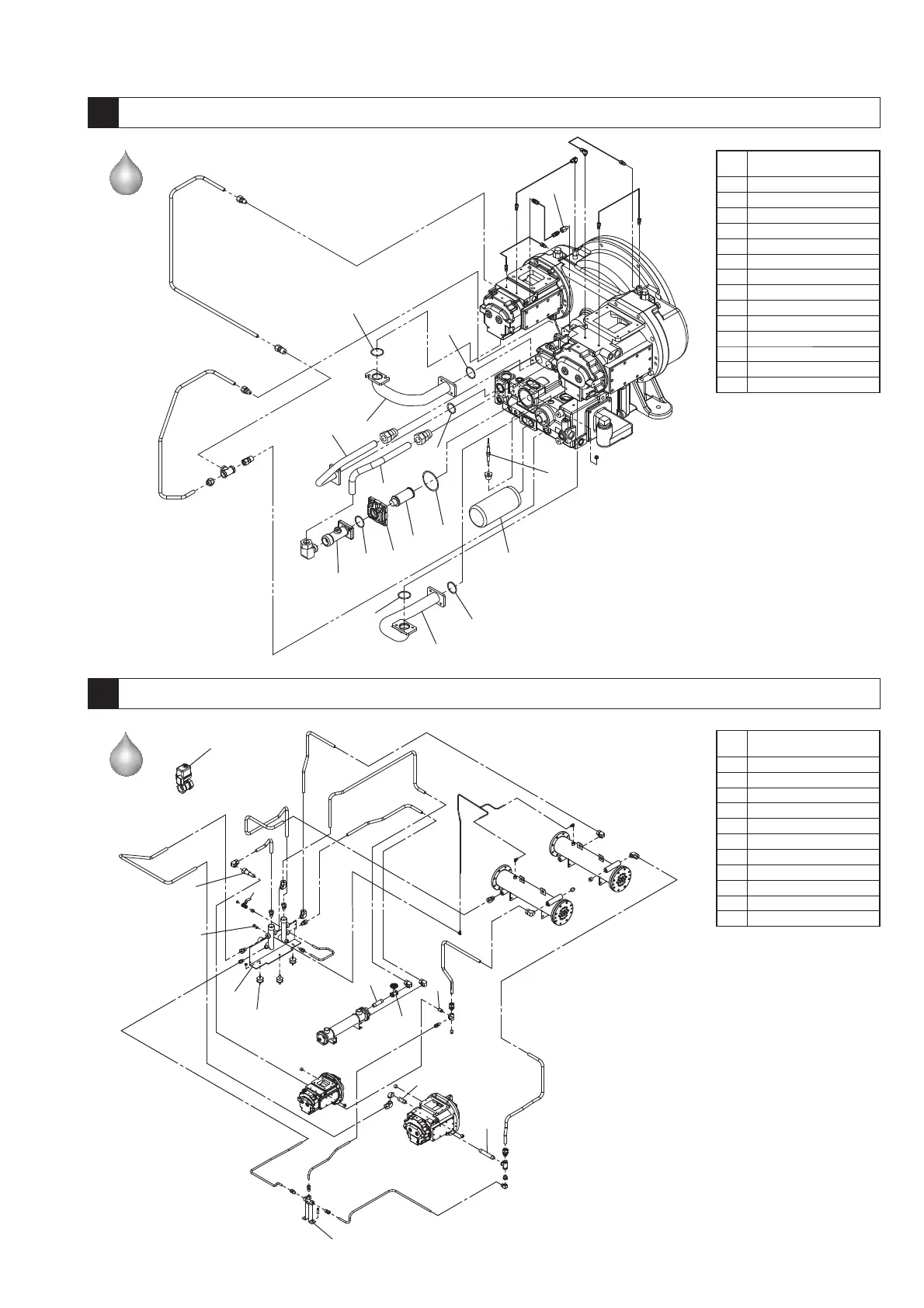

Oil Piping (2)
12
Water Piping
Ref.
No.
Description
369 O-Ring, strainer cover
396 Strainer Cover
770 Oil Piping (OP suction)
771
Oil Piping (OP discharge)
773 Oil Drain Piping (1)
774 Oil Drain Piping (2)
828 Orifice
880 Oil Strainer
882 Oil Filter Element
888 Oil Temperature Sensor
996 Filter Wrench A
D35 O-Ring
D80 Seat, oil piping
H73 O-Ring
※ Does not come with the product.
Ref.
No.
Description
008 Piping (1)
009 Piping (2)
011 Pet Cock
012 Piping (3)
016 Piping (4)
017
Stop Valve, for a water flow control
018 Seat, cooling water piping
096 Stop Valve, drainage
C06
Motorized Water Isolation Valve
D33 Support, water piping
H58
Vibration Isolation Rubber
