11-(6)
Switching
Device
11-(4)
11-(1)
Do not
connect
air hose
Trigger
Push
Lever
11-(2)(3)
Do not pull
Trigger
Depress
Push
Lever
Switching
Device
Upward position
Switching
Device
Upward position
Pull Trigger
Downward position
Warning
Label
12
Printed in Taiwan
Code No. C99520212
206
Hitachi Koki Co., Ltd.
Printed in Taiwan
Code No. C99520212
206
Hitachi Koki Co., Ltd.

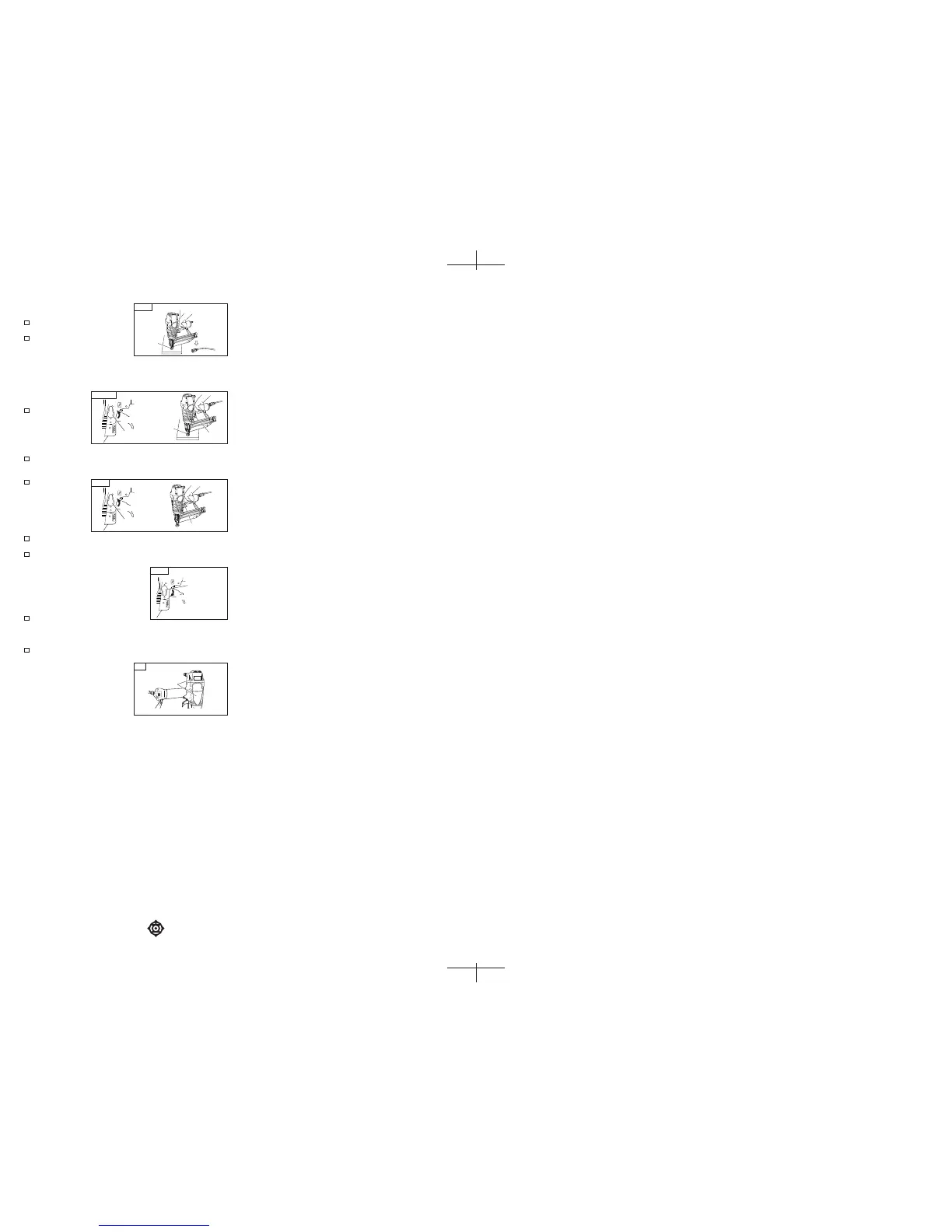

[MODEL NT65M2 (S)]
(1) DISCONNECT AIR HOSE FROM NAILER.
REMOVE ALL NAILS FROM NAILER.
ALL SCREWS MUST BE TIGHTENED.
If any screws are loose, tighten them.
THE PUSH LEVER AND TRIGGER
MUST MOVE SMOOTHLY.
(2) Adjust the air pressure to 70 psi. (4.9 bar 5 kgf/cm
2
). Connect the air hose.
Do not load any nails in the Nailer. Set the switching device to the upward
position (SINGLE SEQUENTIAL ACTUATION MECHANISM). (Set the
switching device to the upward position completely as shown in the diagram.
Otherwise, it will not
operate properly.)
THE NAILER MUST
NOT LEAK AIR.
(3) Remove the finger from
the trigger and press
the push lever against
the wood.
THE NAILER MUST NOT OPERATE.
(4) Separate the push lever from the wood. Next, point the nailer downward, pull
the trigger and then wait in that position for 5 seconds or longer.
THE NAILER MUST
NOT OPERATE.
(5)
1
Without touching the
trigger, depress the
push lever against the
workpiece.
Pull the trigger.
THE NAILER MUST OPERATE.
2
Removethe finger from the trigger.
Nailer operation will end (the driver blade will return to the top).
(6) Set the switching device to the downward position (CONTACT ACTUATION
MECHANISM). (Set the switching device to
the downward position completely as shown
in the diagram. Otherwise, it will not operate
properly.)
With the Nailer off the workpiece, pull the trigger.
Depress the push lever against the workpiece.
THE NAILER MUST OPERATE.
(7) If no abnormal operation is observed, you may load nails in the Nailer.
Drive nails into the workpiece that is the same type to be used in the actual
application.
THE NAILER MUST OPERATE
PROPERLY.
12.Change the WARNING LABEL if missing
or damaged.
A new WARNING LABEL is available from
a Hitachi authorized service center.
