Judgment of H-LINKII Adaptive
NOTE:
(*1): The above “other central controllers” do not include PSC-5RA and PSC-5HR.
(*2): Refer to the installation manual of other central controllers for the setting contents.
4. GROUP SETTING
GROUP
Minimum unit for operation of Central
Station.
One remote control switch group is
considered as one group under the same
control.
The Central Station can control up to 64
groups (4 zones x 16 groups).
ZONE
Operation unit with Plural Groups.
Up to 16 groups as maximum can be set
in one zone. The central station can
control up to 4 zones.
REMOTE CONTROL SWITCH GROUP
Unit of plural indoor units (max. 16 units).
Connected with Transmission Line of
Remote Control Switch.
In this group the indoor units are under
the same control setting.

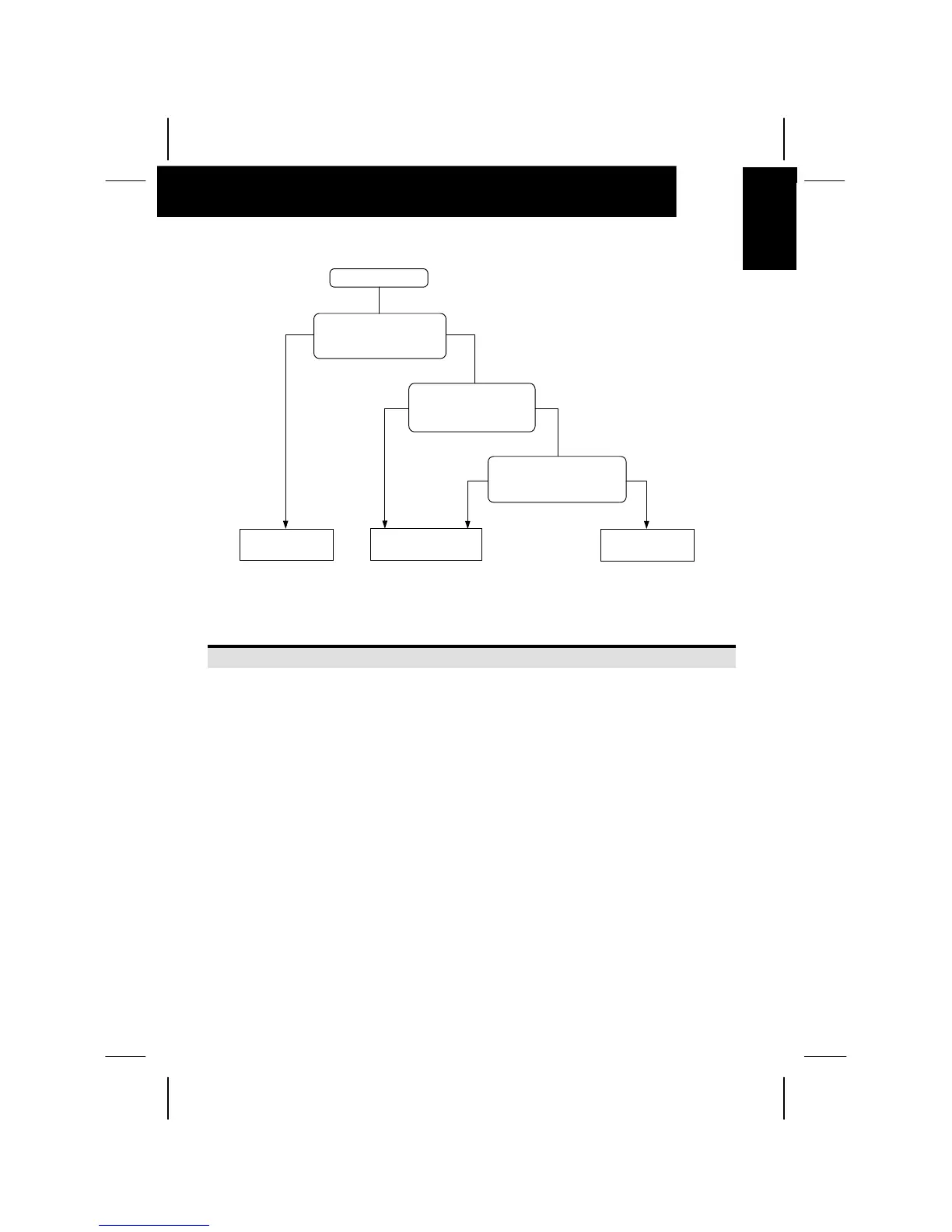

START
NO
YES
Other central controller is
connected in the same H-LINK
(control line) system (*1)
All models of other connected
central controllers are PSC-
A*** or HC-A*** (*1)
The setting of other
connected central controllers
are all H-LINKII adaptive (*2)
NO
YES
NO
YES
H-LINKII adaptive
DSW2-4 Pin OFF
H-LINKII Non-Adaptive
DSW2-4 Pin ON
H-LINKII adaptive
DSW2-4 Pin OFF
