Hitachi R-S42NS User Manual

55
Ice Case
(Ice Compartment)
/ Upper Freezer Case
(Upper Freezer)
Slide Case / Lower Freezer Case
(Lower Freezer)
Upper Case / Lower Case (Vegetable Compartment)
How to attach the slide door (Ice Compartment / Upper Freezer / Lower Freezer / Vegetable Compartment)
When installing the freezer compartment case, position it on the left and right convex ribs of the lower freezer case in the square
holes of the frame. Then, set the left and right claws of the slide case to the outside of the lower case.
If the lower case is not removed as shown in step , remove the door and then remove the lower case.
When installing it, insert the projections on the left / right inner sides of the lower case into the rectangular holes on the frame, and put
the edge of the lower case on the frame to install it.
Open the door and lift up the case toward you.
To mount the case, insert the right and left projections of the case into the
rectangular holes.
Ice Compartment / Upper Freezer
Lower Freezer / Vegetable Compartment
Slimline slide case
Upper case
Lower case
Pull out the door fully, and draw out the slide
case respectively.
Draw the door fully and pull up
the upper case as shown in the
figure.
Lift up the lower freezer case.
Lift up the front part of the
door, and pull out further and
incline it.
Lift up the lower case toward
you.
Slide case
Frame
Lower freezer
case
Frame
Frame
Projections (Right and left)
Rectangular hole on the frame
Projection
Rectangular hole
Frame
● Do not remove the slimline slide case.
Note
Seal
● Do not remove the seal.
Note
● Be careful not to get your feet close when opening the door. Your foot may be caught in the door.
Note

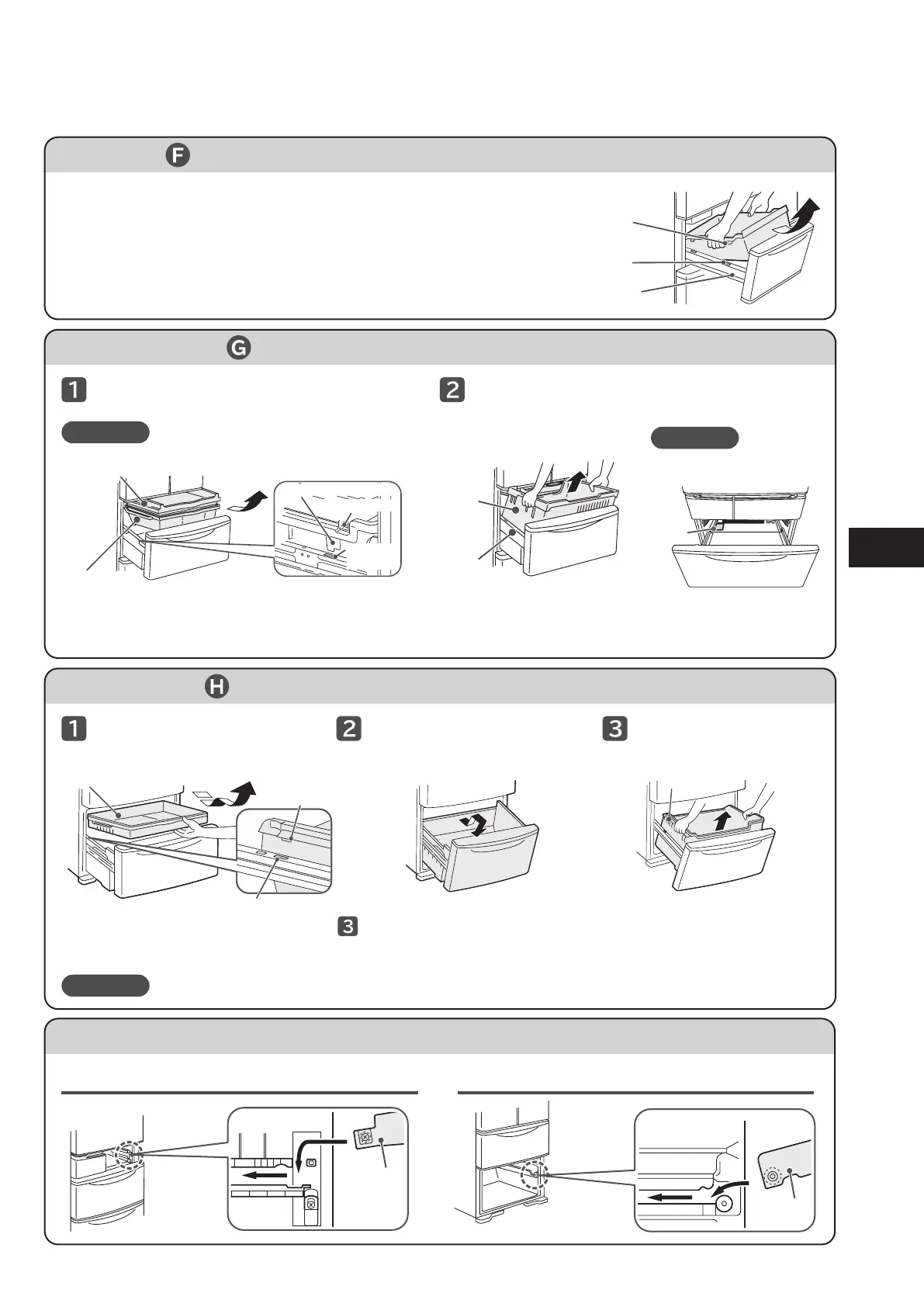

HOW TO REMOVE / ATTACH PARTS
Projections (Right and left)
Fork (Right and left)
Rectangle hole
in the frame
