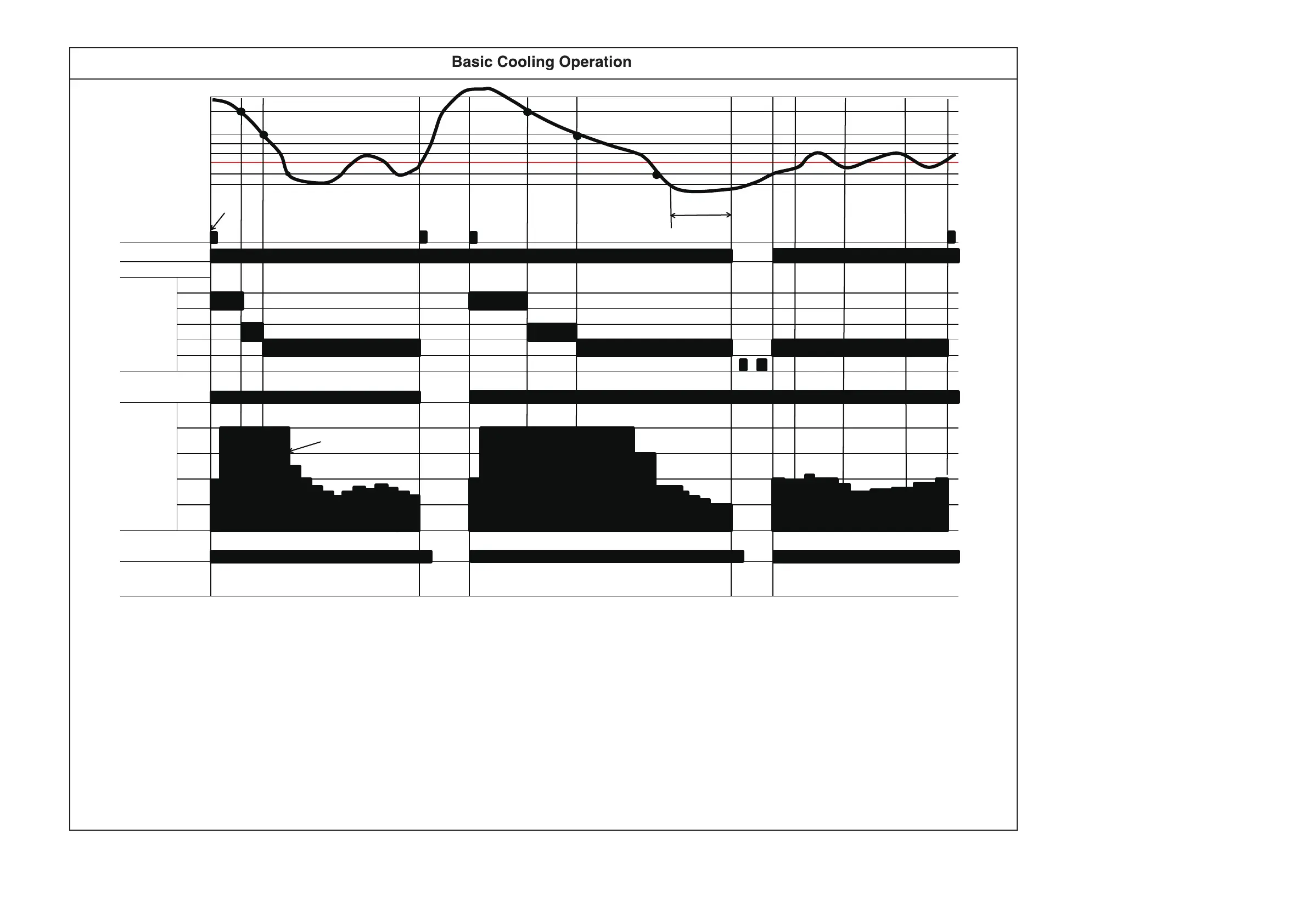

Notes:
(1) Condition for entering into Cool Dashed mode. When fan set to “Hi” or “Auto and when the compressor speed (P section) due to temperature difference between setting
temperature (including the correction shift only) and room temperature is CMAX or higher.
(2) Cool Dashed will release when i) a maximum 25 minutes is lapsed and ii) room temperature is lower than set temperature –3°C (thermo off) and iii) when room temperature
has achieved setting temperature –sftdsc then maximum Cool Dashed time will be revised to 20 minutes. And iv) indoor fan is set to Lo and Med fan mode and v) change
operation mode.
(3) During Cool Dashed operation, thermo off temperature is set temperature (with shift value) –3°C. After thermo off, operation continue in Fuzzy control mode.
(4) Compressor minimum “ON” time and “OFF” time is 3 minutes.
(5) During normal cooling mode, compressor maximum rpm CMAX will maintain for 60 minutes if indoor temperature is lower than 30°C. No time constrain if indoor tem-
perature is higher than CLMXTP.
(6) When fan is set to “Hi”, compressor rpm will be limited to CSTD.
(7) When fan is set to “Med”, compressor rpm will be limited to CJKMAX.
(8) When fan is
set to “Lo”, compressor rpm will be limited to CBEMAX.
(9) During Cool Dashed, when room temperature reaches set temperature –sftdsc_8U compressor rpm is actual rpm x 70％.
Thermo off
Ultra-hi
HI
Med
Lo
silent
Ultra-Lo
MAX
Rating
start
MIN
0
reversing valve
+2.66
+1.33
+1
+0.66
-0.66
-1
indoor
fan
Thermo judgment
Start/stop switch
Operation lamp
compressor
rotation
speed
remote control
Start
Stop
Stop
Start
[fzontmc*-8u]
Lo Lo
Lo
CMAX
NOTE(5)
NOTE(9)
Fan speed set to"aoto"
To Next Page
