Maintenance
6.8. Refrigerant cycle diagrams
6.8. Refrigerant cycle diagrams
6.8. Refrigerant cycle diagrams

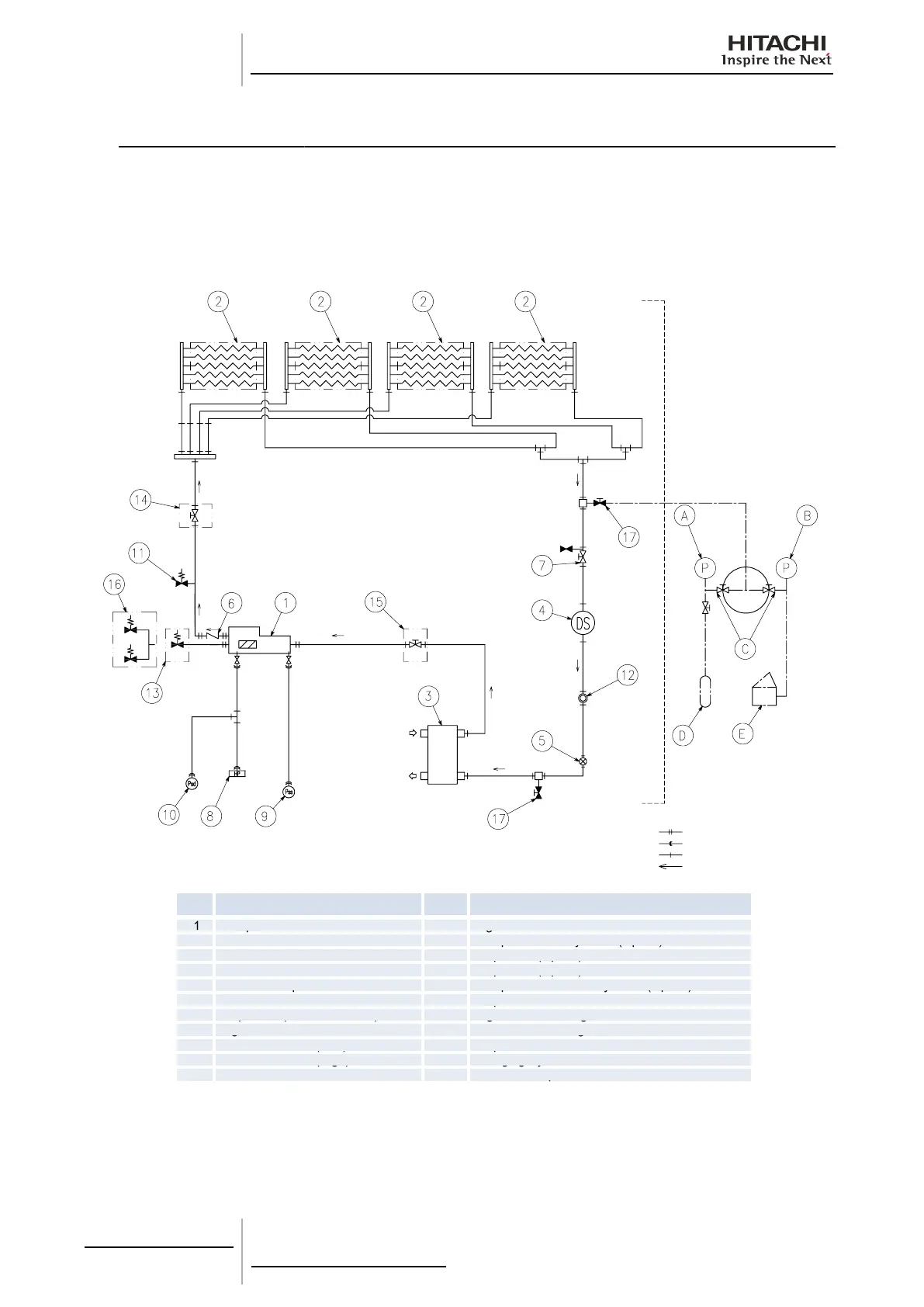

6.8.1. Refrigerant cycle diagram of Hitachi Air-Cooled Water Chiller
(RCUE 40, 50, 60, 70, 100, 120, 140, 180, 210, 280, 350 AG2)
No. Name No. Name
1
Compressor
Compressor
12
Sight Glass
Sight Glass
2
Air-Cooled Condenser
13
Compressor Safety Valve (Option)
Compressor Safety Valve (Option)
3
Water Cooler
14
Stop Valve (Option)
Stop Valve (Option)
4
Filter Drier
15
Stop Valve (Option)
Stop Valve (Option)
5
Electronic Expansion Valve
Electronic Expansion Valve
16
Compressor Dual Safety Valve (Option)
Compressor Dual Safety Valve (Option)
6
Check Valve
17
Stop Valve
Stop Valve
7
Stop Valve (with check Joint)
Stop Valve (with check Joint)
A
High Pressure Gauge
High Pressure Gauge
8
High Pressure Switch
High Pressure Switch
B
Low Pressure Gauge
Low Pressure Gauge
9
Pressure Sensor (Low)
Pressure Sensor (Low)
C
Stop Valve
Stop Valve
10
Pressure Sensor (High)
Pressure Sensor (High)
D
Charging Cylinder
Charging Cylinder
11
Pressure Relief Valve
E
Vacuum Pump
Vacuum Pump
R407C shall be charged by LIQUID.

NOTE:
Option
Option
Option
Option
Gauge
manifold
Charging
Evacuation
Unit side
Flange Connection
Flare Connection
Solder Connection
Refrigerant Cycle
Chilled Water Inlet
Chilled Water Outlet
